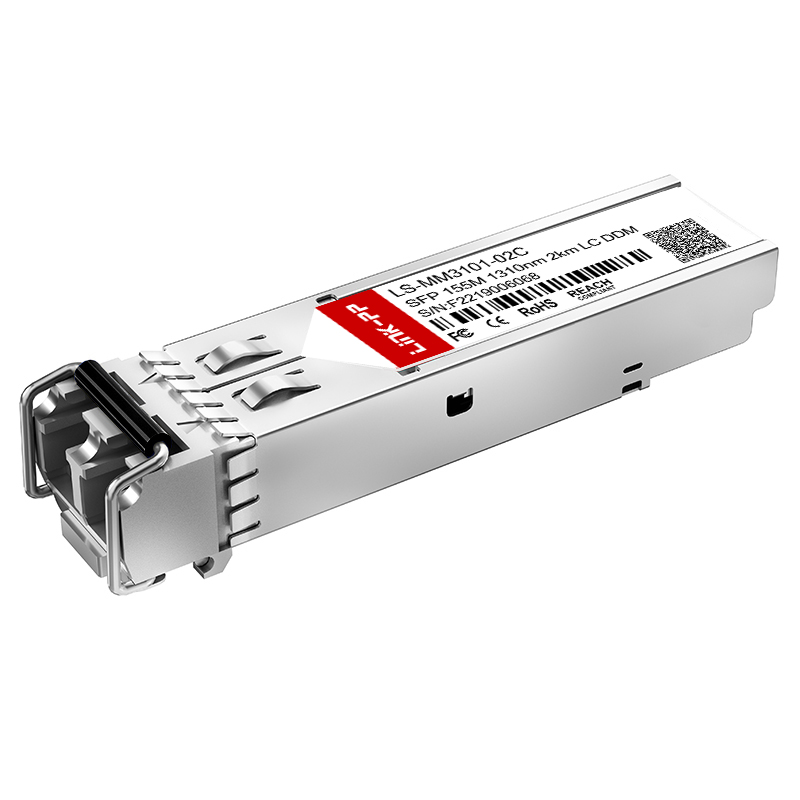

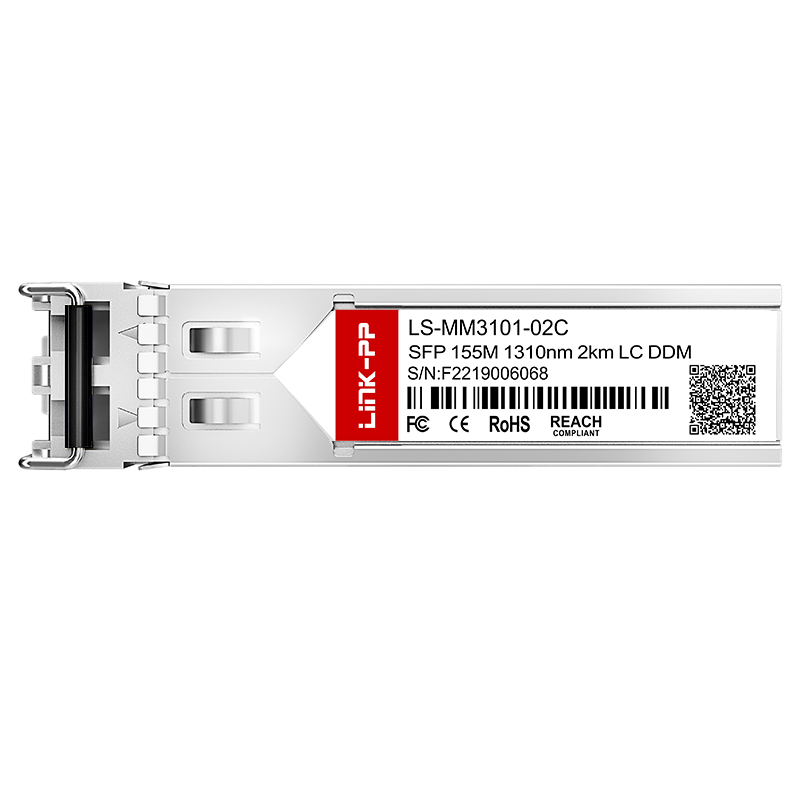

SFP-FE-SX-MM1310 Compatible MMF LC Optical Module Multimode 1310nm 155M SFP Transceiver 2km

Product Description

View Our Solutions
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Optical Transceivers Solutions
Optical Transport Networks
Optical Transport Networks
We provide end-to-end DWDM device solutions with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
Cloud and Enterprise
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, a series of high-speed optical modules has been developed with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Wireless
Wireless
High reliability and performance products with mature and efficient lasers and mainstream chip solutions are provided to customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which meet all the needs of various scenarios in 4G/5G systems.
FTTx
FTTx
Aimed at global communication network constructors, FTTx optical fiber access total solutions are provided, covering all-optical or optical copper combined access solutions and products.
Subsystems
Subsystems
To ensure the normal operation of the communication line, an optical cable O&M solution is provided, which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
Product Specification
SFP-FE-SX-MM1310 Compatible MMF LC Optical Module Multimode 1310nm 155M SFP Transceiver 2km
Part No. LS-MM3101-02C
Form Factor SFP
Max Data Rate 155Mbps
Wavelength 1310nm
Max Cable Distance 2km
Connector Duplex LC
Media MMF
Transmitter Type FP
Receiver Type PIN
TX Power -15 ~ -8dBm
Receiver Sensitivity < -32dBm
EMC (Electro Magnetic Compatibility) Supported
DDM/DOM Supported
Protocols IEEE802.3U, GR-468, MSA Compliant
Temperature Range 0 to 70°C / -40 to 85°C
Warranty 5 Years
Sample Available
Product Categories Overview
100M (155M) SFP Ordering Information
Model Number Product Details
LS-MM8501-S5C SFP 155M, 850nm, 550m, LC, DDM, 0°C-70°C (-40°C-85°C)
LS-MM8501-02C SFP 155M, 850nm, 2km, LC, DDM, 0°C-70°C (-40°C-85°C)
LS-MM3101-02C SFP 155M, 1310nm, 2km, LC, DDM, 0°C-70°C (-40°C-85°C)
LS-SM3101-10C SFP 155M, 1310nm, 10km, LC, DDM, 0°C-70°C (-40°C-85°C)
LS-SM3101-15C SFP 155M, 1310nm, 15km, LC, DDM, 0°C-70°C (-40°C-85°C)
LS-SM3101-20C SFP 155M, 1310nm, 20km, LC, DDM, 0°C-70°C (-40°C-85°C)
LS-SM3101-40C SFP 155M, 1310nm, 40km, LC, DDM, 0°C-70°C (-40°C-85°C)
LS-SM5501-80C SFP 155M, 1550nm, 80km, LC, DDM, 0°C-70°C (-40°C-85°C)
LS-SM5501-A2C SFP 155M, 1550nm, 120km, LC, DDM, 0°C-70°C (-40°C-85°C)
Order Information Banner
Related Products SFP Cage
SFP Cage Related Products
Why Choose Us
Production Advantage 1
Production Advantage 2
Production Advantage 3
Production Advantage 4
Company Profile
We are a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, ROSH, REACH, CE and UL, with advanced manufacturing equipment and testing equipment imported from abroad. Our company was established in 1997, and we currently have about 2,000 employees. With an abundant production capacity of 3,000K per month, we are able to deliver products within a short time. In addition, we provide a complete series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also includes high-speed optical interconnect solutions for cloud computing and ultra-broadband networks. Using the latest optoelectronic technologies, we design, manufacture, and sell products worldwide.
Company Facility Area 1
Company Facility Area 2
Frequently Asked Questions
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors and SFP modules, etc.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should cover the shipping fee.
What is your delivery time?
Items currently in stock are ready to ship. For mass production orders, the delivery time is 15-30 days.
What after-service can you offer?
We offer a one-year guarantee period and 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion on your specific requirements.
What is your advantage?
We have 19 years of professional production experience and have been a trusted partner to major global industry leaders for many years.
