Over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.

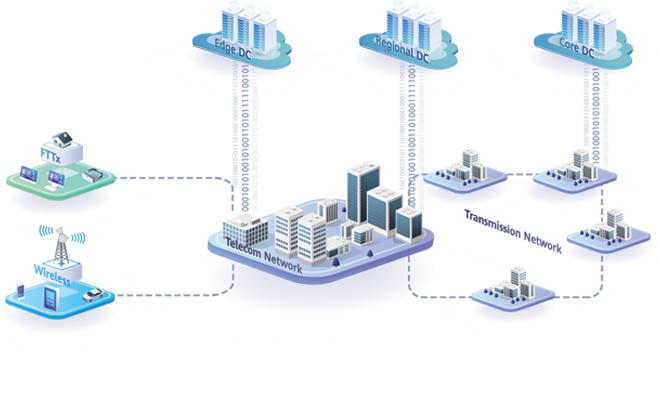

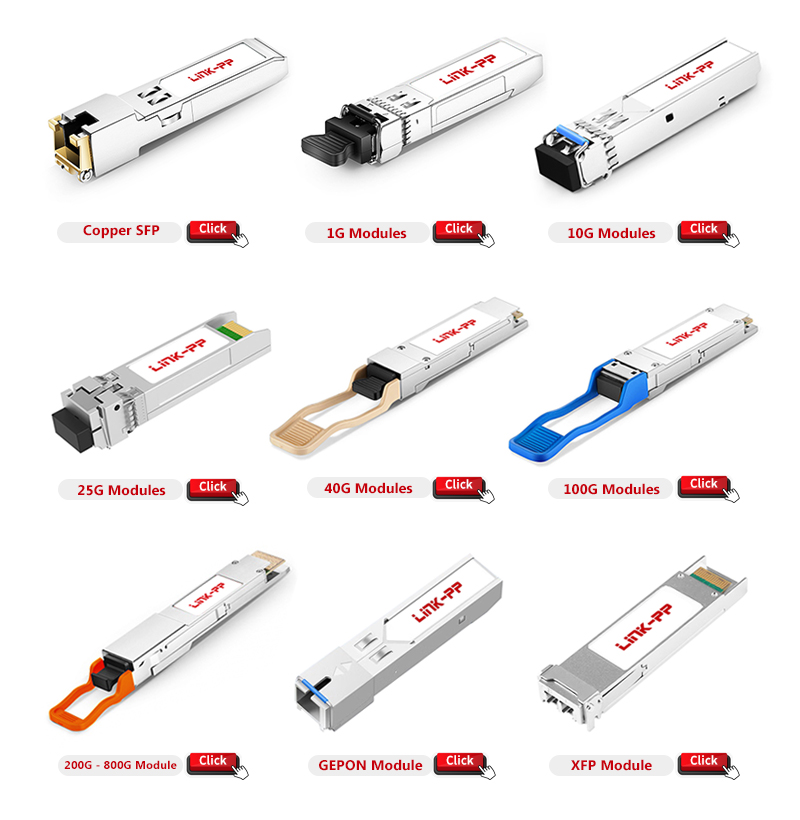

A full series of optical modules is available for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
End-to-end DWDM solutions with a comprehensive range of optical devices are available—from active modules to optical passive components, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR.
To meet the massive data transmission demands in modern data centers, a broad series of high-speed optical modules has been developed, with product rates ranging from 10G up to 800G, providing top-tier optical interconnection solutions.
High reliability and performance products are engineered with mature, efficient lasers and mainstream chip solutions. The product range includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul to cover all needs in 4G/5G system scenarios.
Designed for global communication network builders, total FTTx optical fiber access solutions are offered, covering both all-optical and combined optical-copper access architectures.
To ensure the uninterrupted operation of fiber lines, advanced optical cable O&M solutions are available, integrating both Optical Line Protection (OLP) and Optical Line Monitoring (OLM) systems.
| Parameter Specifications | |
|---|---|

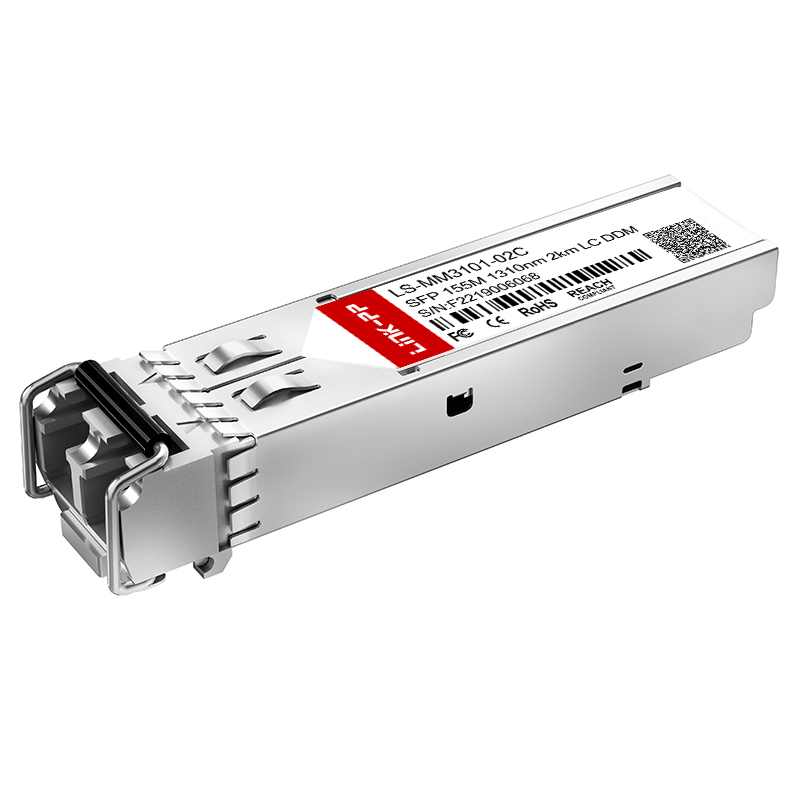

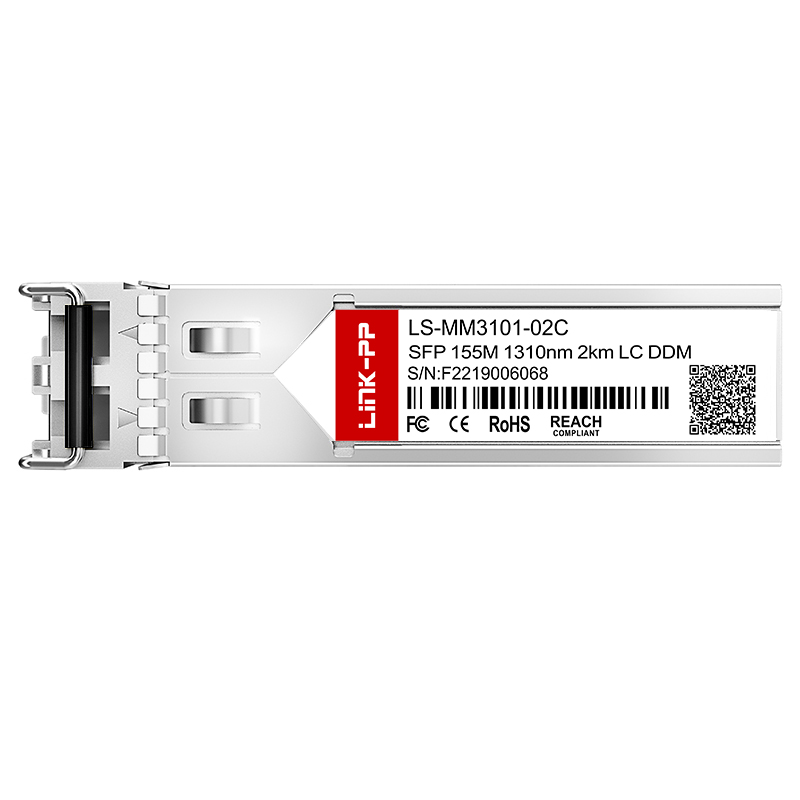

| Part No. | LS-MM3101-02C |
| Form Factor | SFP |
| Max Data Rate | 155Mbps |
| Wavelength | 1310nm |
| Max Cable Distance | 2km |
| Connector | Duplex LC |
| Media | MMF |
| Transmitter Type | FP |
| Receiver Type | PIN |
| TX Power | -15 ~ -8dBm |
| Receiver Sensitivity | < -32dBm |
| EMC Support | Supported |
| DDM/DOM | Supported |
| Protocols | IEEE802.3U, GR-468, MSA Compliant |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
| Sample Availability | Available |
| Model / Part Number | Product Specification Details |
|---|---|
| LS-MM8501-S5C | SFP 155M, 850nm, 550m, LC, DDM, 0°C to 70°C (-40°C to 85°C option) |
| LS-MM8501-02C | SFP 155M, 850nm, 2km, LC, DDM, 0°C to 70°C (-40°C to 85°C option) |
| LS-MM3101-02C | SFP 155M, 1310nm, 2km, LC, DDM, 0°C to 70°C (-40°C to 85°C option) |
| LS-SM3101-10C | SFP 155M, 1310nm, 10km, LC, DDM, 0°C to 70°C (-40°C to 85°C option) |
| LS-SM3101-15C | SFP 155M, 1310nm, 15km, LC, DDM, 0°C to 70°C (-40°C to 85°C option) |
| LS-SM3101-20C | SFP 155M, 1310nm, 20km, LC, DDM, 0°C to 70°C (-40°C to 85°C option) |
| LS-SM3101-40C | SFP 155M, 1310nm, 40km, LC, DDM, 0°C to 70°C (-40°C to 85°C option) |
| LS-SM5501-80C | SFP 155M, 1550nm, 80km, LC, DDM, 0°C to 70°C (-40°C to 85°C option) |
| LS-SM5501-A2C | SFP 155M, 1550nm, 120km, LC, DDM, 0°C to 70°C (-40°C to 85°C option) |

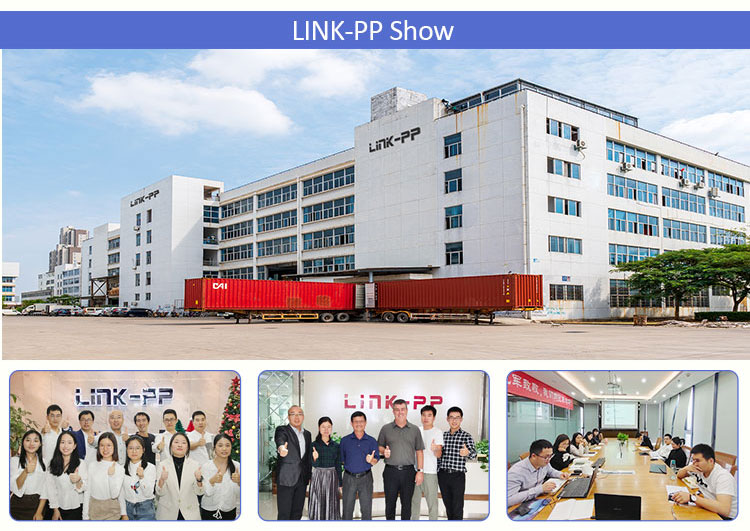

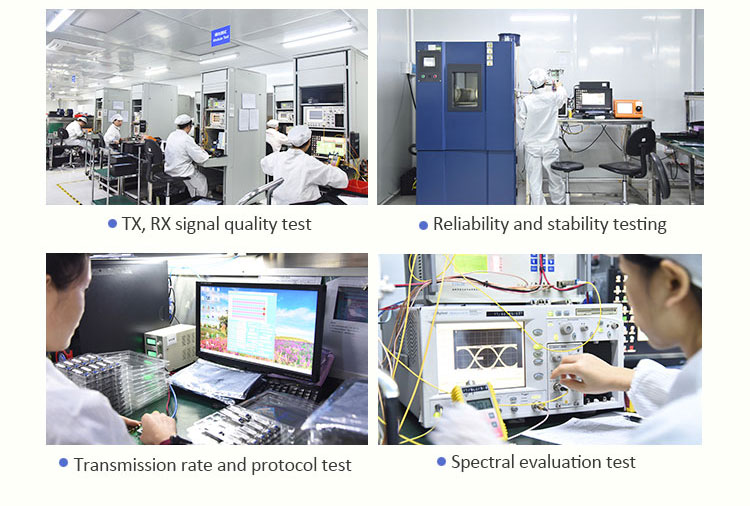

We are a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, RoHS, REACH, CE, and UL. Operations are equipped with advanced manufacturing and testing devices imported from abroad. Established in 1997 with a current workforce of approximately 2000 employees and a production capacity of 3000K units per month, fast delivery times are consistently met.
Additionally, a complete series of optical modules is provided for fixed access, wireless access, carrier Ethernet, WDM, and data communication networks, alongside high-speed optical interconnect solutions optimized for cloud computing and ultra-broadband networks. Using the latest optoelectronic technologies, products are designed, manufactured, and distributed globally.
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Yes, free samples can be offered for quality testing, with shipping fees covered by the customer.
Items currently in stock are ready for immediate shipment, while standard mass production requires between 15 to 30 days.
A one-year warranty period is provided, alongside round-the-clock (24-hour) online technical support.
Yes, customized OEM/ODM services are fully accepted. Please reach out to discuss specific project details and requirements.
Over 19 years of dedicated production expertise, serving as a trusted supplier and partner for global industry leaders.
