Hirschmann SFP-FAST-MM/LC-EEC Compatible MMF 1310nm 155M SFP Module 2km Multimode LC Optical Transceiver

Product Description

⚙️ VIEW OUR SOLUTIONS
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.
A full series of optical modules is provided for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Solutions Overview
Application Fields
Optical Transport Networks
Optical Transport Networks
End-to-end DWDM device with almost all optical devices can be provided - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
Cloud and Enterprise
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, a series of high-speed optical modules has been developed, with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Wireless
Wireless
Providing high reliability and performance products with mature and efficient lasers and mainstream chip solutions to customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
FTTx
FTTx
Aiming at global communication network constructors, FTTx optical fiber access total solutions are provided, covering from all-optical or optical copper combined access solutions and products.
Subsystems
Subsystems
To ensure the normal operation of the communication line, the optical cable O&M solution is provided, which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).

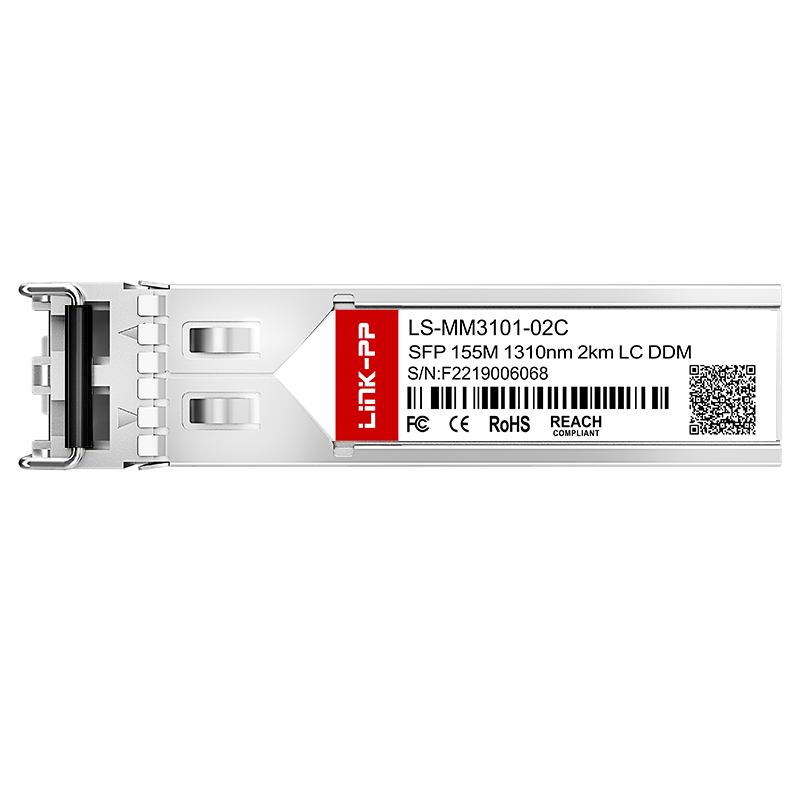

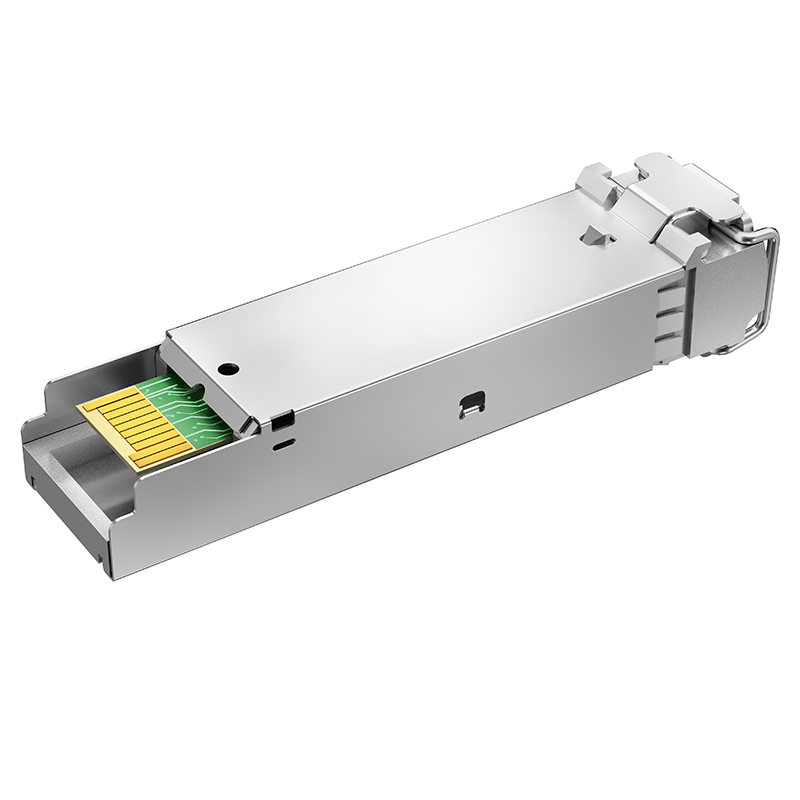

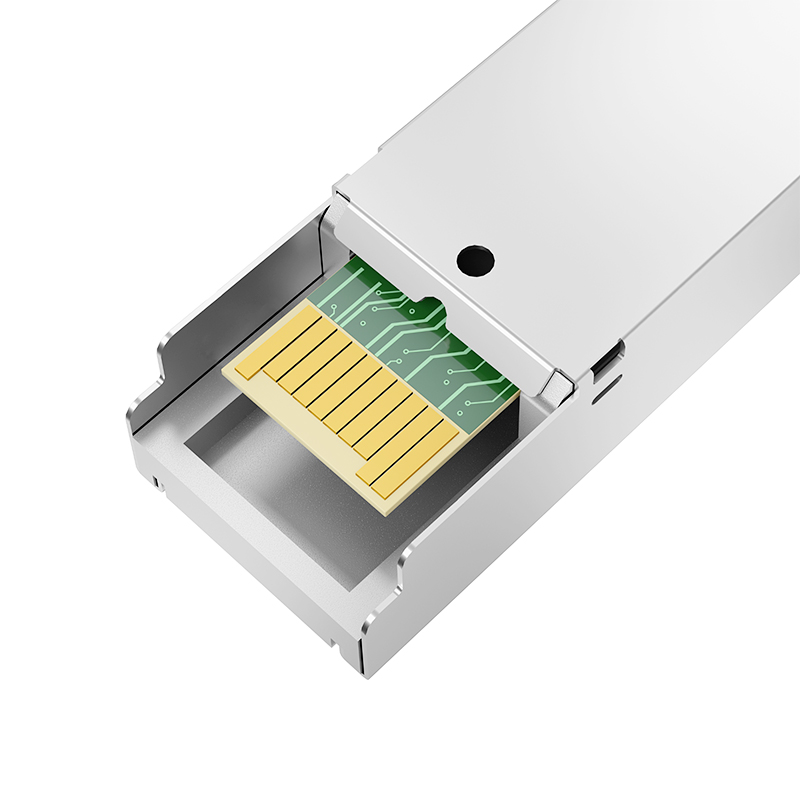

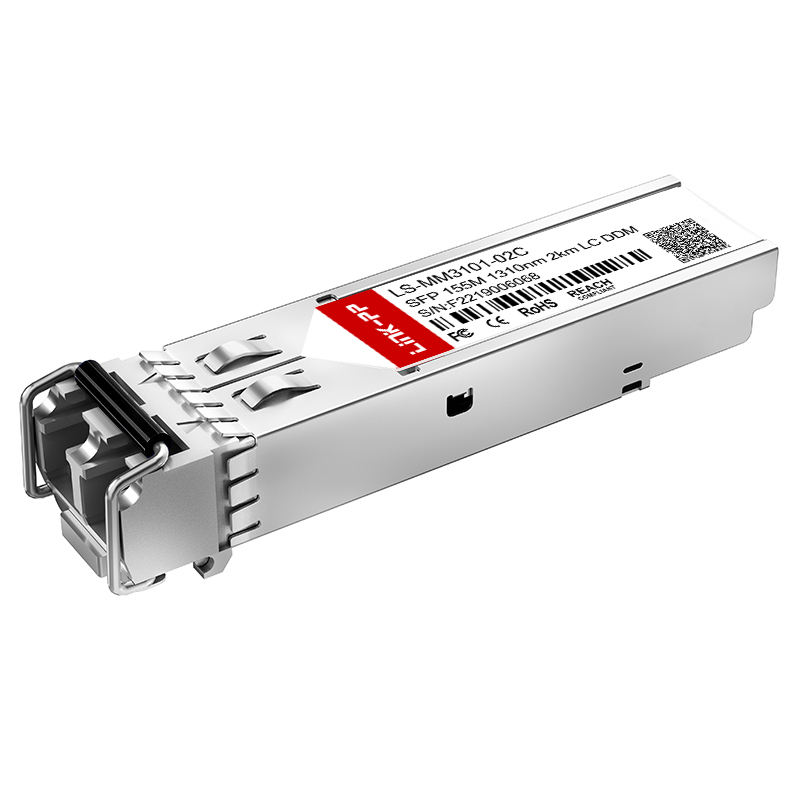

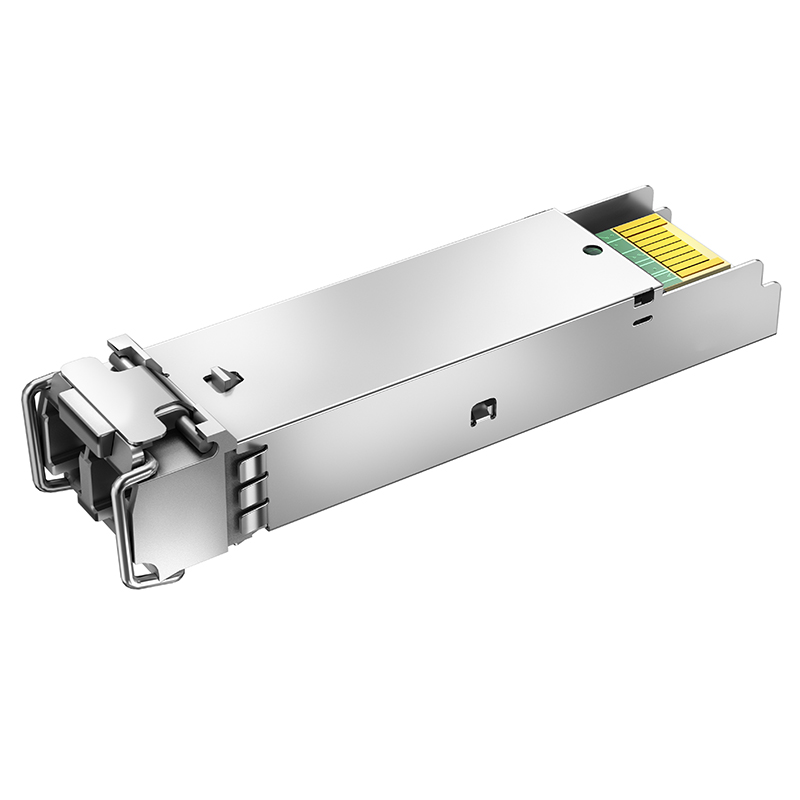

Hirschmann SFP-FAST-MM/LC-EEC Compatible MMF 1310nm 155M SFP Module 2km Multimode LC Optical Transceiver
Part No. LS-MM3101-02C
Form Factor SFP
Max Data Rate 155Mbps
Wavelength 1310nm
Max Cable Distance 2km
Connector Duplex LC
Media MMF
Transmitter Type FP
Receiver Type PIN
TX Power -15 ~ -8dBm
Receiver Sensitivity < -32dBm
EMC (Electro Magnetic Compatibility) Supported
DDM/DOM Supported
Protocols IEEE802.3U, GR-468, MSA Compliant
Temperature Range 0 to 70°C / -40 to 85°C
Warranty 5 Years
Sample Available
Product Categorization
100M (155M) SFP Ordering Information
LS-MM8501-S5C SFP 155M, 850nm, 550m, LC, DDM, 0°C-70°C (-40°C-85°C)
LS-MM8501-02C SFP 155M, 850nm, 2km, LC, DDM, 0°C-70°C (-40°C-85°C)
LS-MM3101-02C SFP 155M, 1310nm, 2km, LC, DDM, 0°C-70°C (-40°C-85°C)
LS-SM3101-10C SFP 155M, 1310nm, 10km, LC, DDM, 0°C-70°C (-40°C-85°C)
LS-SM3101-15C SFP 155M, 1310nm, 15km, LC, DDM, 0°C-70°C (-40°C-85°C)
LS-SM3101-20C SFP 155M, 1310nm, 20km, LC, DDM, 0°C-70°C (-40°C-85°C)
LS-SM3101-40C SFP 155M, 1310nm, 40km, LC, DDM, 0°C-70°C (-40°C-85°C)
LS-SM5501-80C SFP 155M, 1550nm, 80km, LC, DDM, 0°C-70°C (-40°C-85°C)
LS-SM5501-A2C SFP 155M, 1550nm, 120km, LC, DDM, 0°C-70°C (-40°C-85°C)
