Product Details

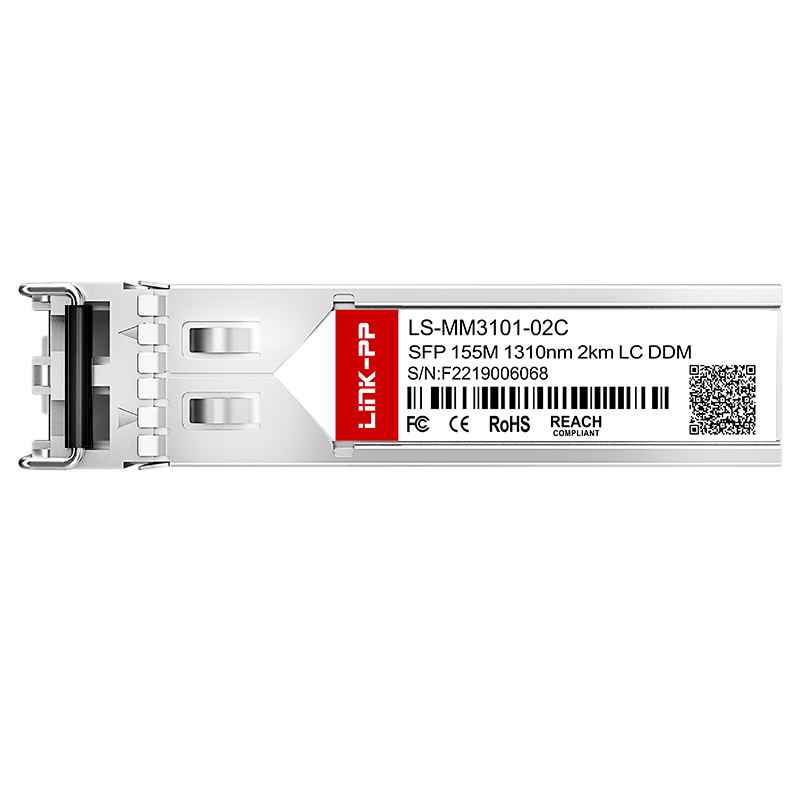

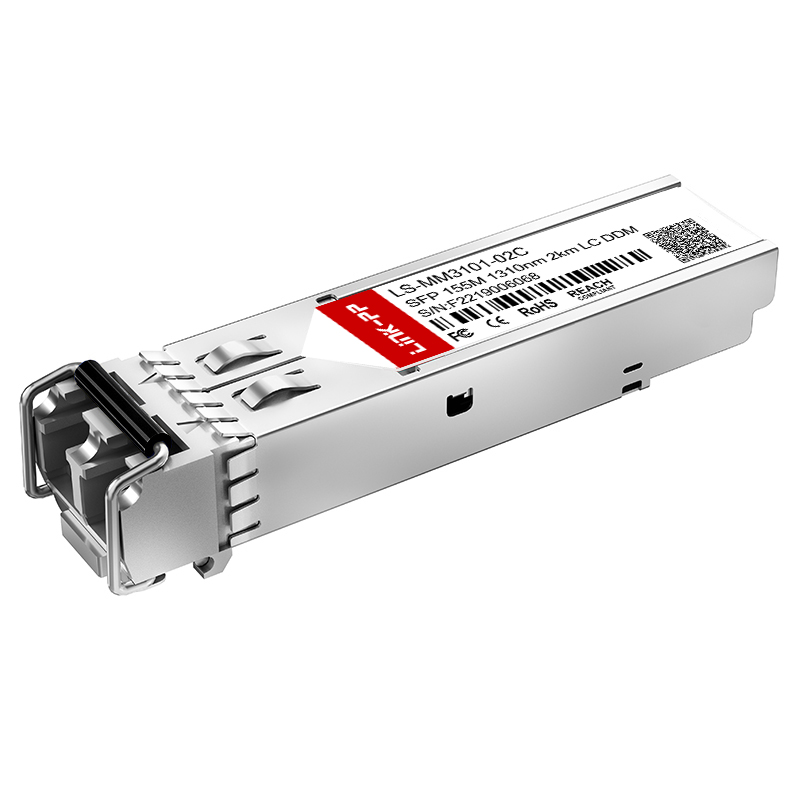

Moxa SFP-1FEMLC-T Compatible MMF Optical Module 100M Multimode 1310nm SFP Transceiver 2km

LINK-PP Part No.	LS-MM3101-02C
Form Factor	SFP
Max Data Rate	155Mbps
Wavelength	1310nm
Max Cable Distance	2km
Connector	Duplex LC
Media	MMF
Transmitter Type	FP
Receiver Type	PIN
TX Power	-15 ~ -8dBm
Receiver Sensitivity	< -32dBm
EMC (Electro Magnetic Compatibility)	Supported
DDM/DOM	Supported
Protocols	IEEE802.3U, GR-468, MSA Compliant
Temperature Range	0 to 70°C / -40 to 85°C
Warranty	5 Years
Sample	Available

100M (155M) SFP Ordering Information

LS-MM8501-S5C	SFP 155M, 850nm, 550m, LC, DDM, 0°C to 70°C (-40°C to 85°C)
LS-MM8501-02C	SFP 155M, 850nm, 2km, LC, DDM, 0°C to 70°C (-40°C to 85°C)
LS-MM3101-02C	SFP 155M, 1310nm, 2km, LC, DDM, 0°C to 70°C (-40°C to 85°C)
LS-SM3101-10C	SFP 155M, 1310nm, 10km, LC, DDM, 0°C to 70°C (-40°C to 85°C)
LS-SM3101-15C	SFP 155M, 1310nm, 15km, LC, DDM, 0°C to 70°C (-40°C to 85°C)
LS-SM3101-20C	SFP 155M, 1310nm, 20km, LC, DDM, 0°C to 70°C (-40°C to 85°C)
LS-SM3101-40C	SFP 155M, 1310nm, 40km, LC, DDM, 0°C to 70°C (-40°C to 85°C)
LS-SM5501-80C	SFP 155M, 1550nm, 80km, LC, DDM, 0°C to 70°C (-40°C to 85°C)
LS-SM5501-A2C	SFP 155M, 1550nm, 120km, LC, DDM, 0°C to 70°C (-40°C to 85°C)
