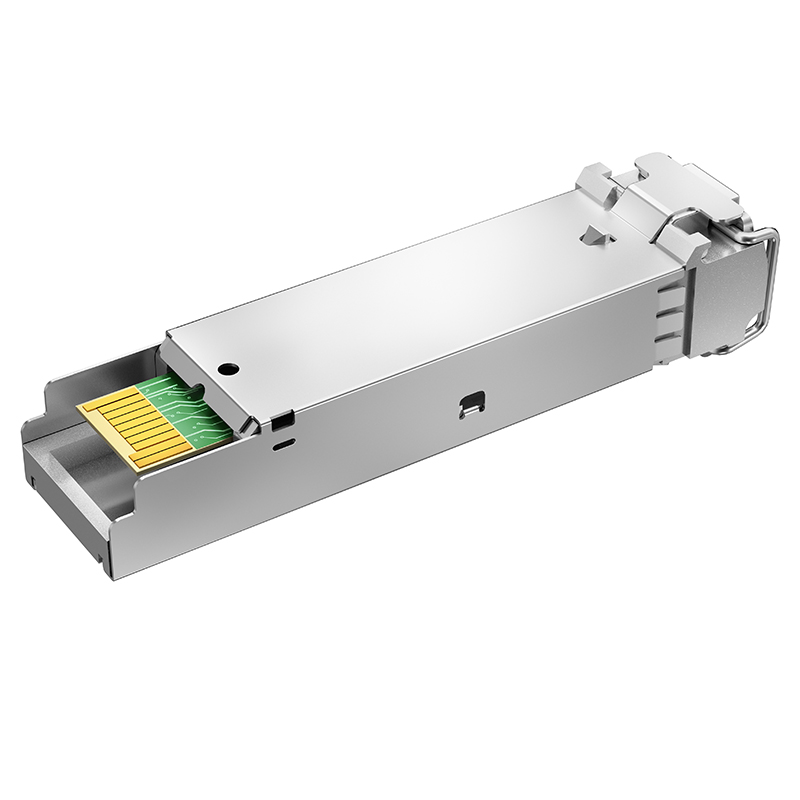

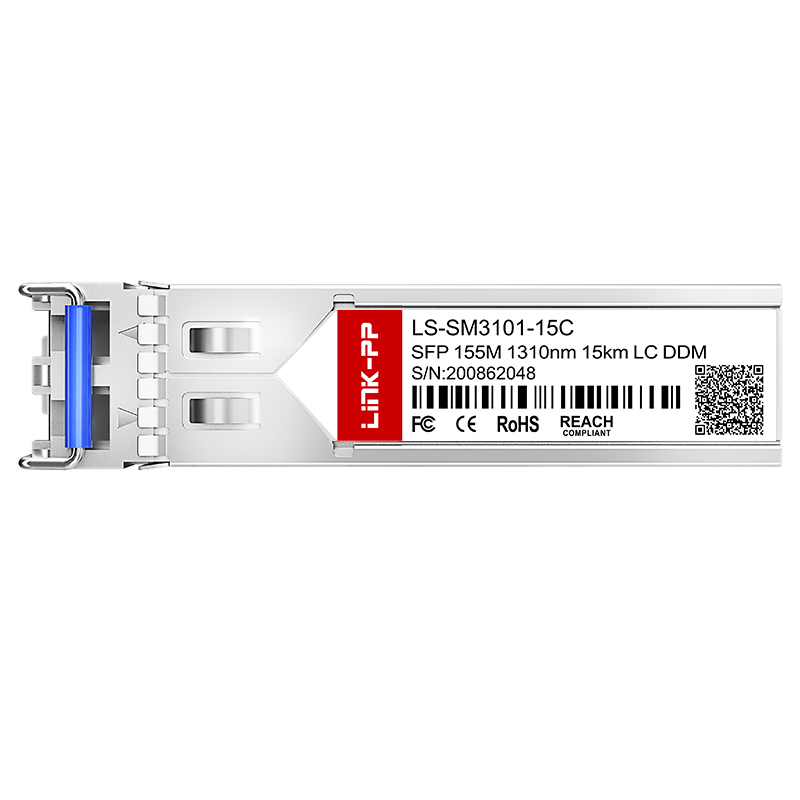

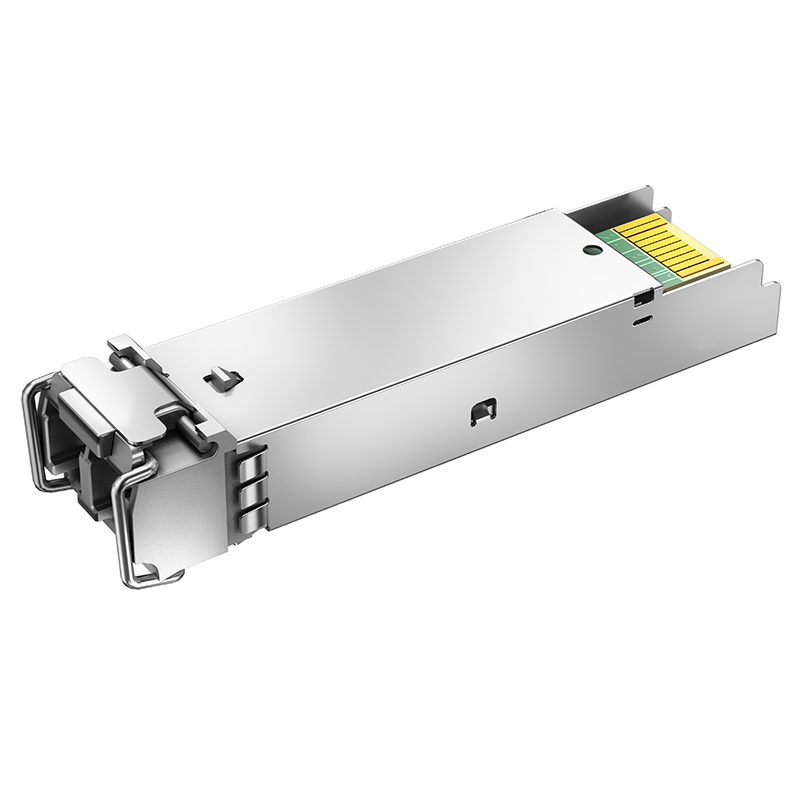

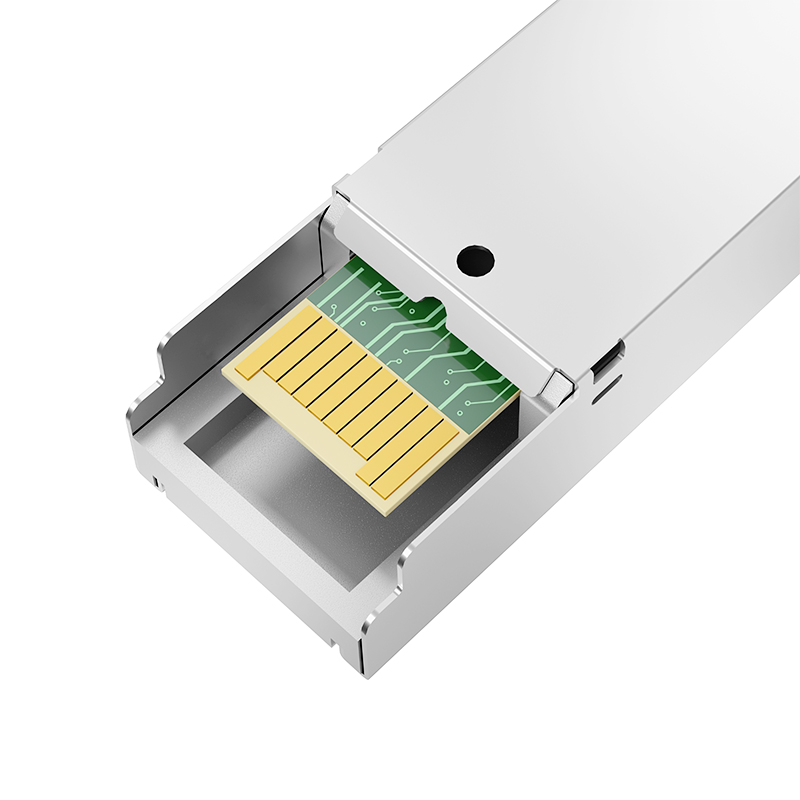

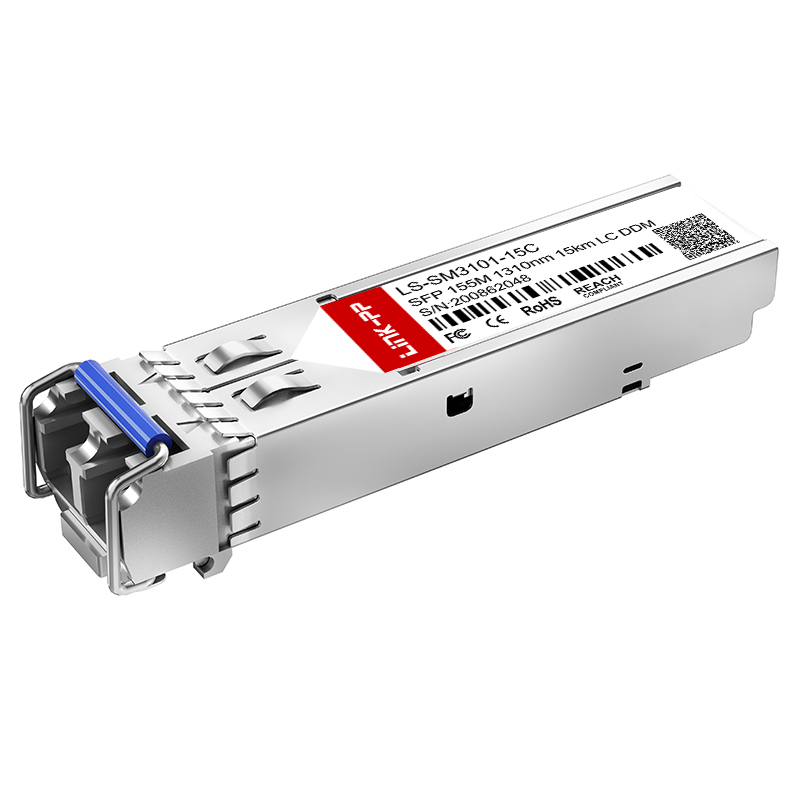

| Item | 100BASE SFP |
| Part Status | Active |
| Form Factor | SFP |
| Max Data Rate | 100Mbps |
| Wavelength | 1310nm |
| Max Cable Distance | 15km |
| Media | SMF |
| Connector | Duplex LC |
| Optical Component | FP 1310nm |
| TX Power | -15~-8dBm |
| Receiver Sensitivity | < -32.5dBm |
| DDM/DOM | Supported |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | IEEE802.3ab, GR-468, MSA Compliant |
| Warranty | 5 Years |
| Sample | Available |
