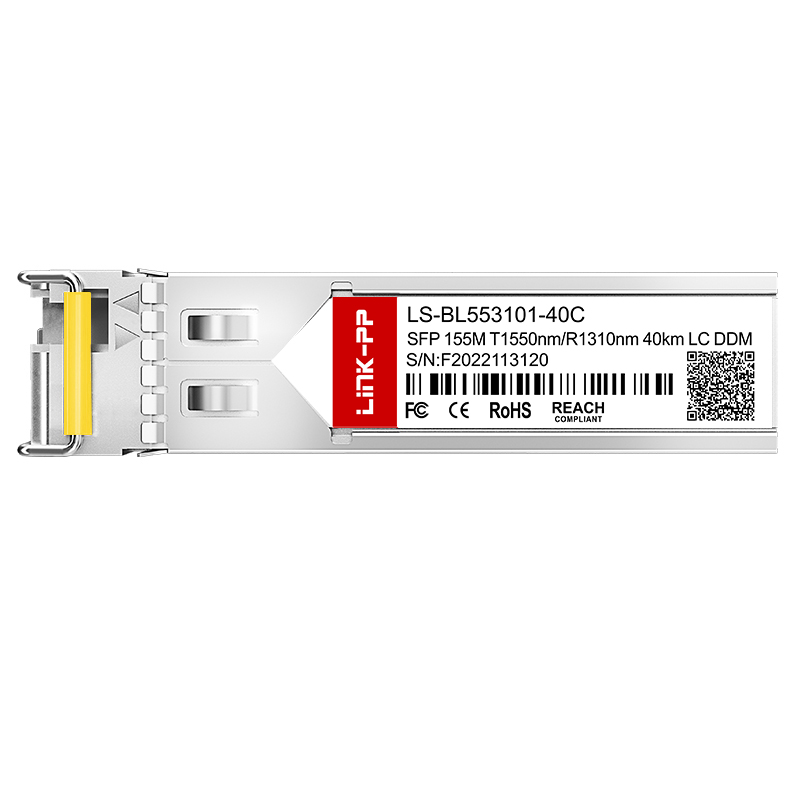

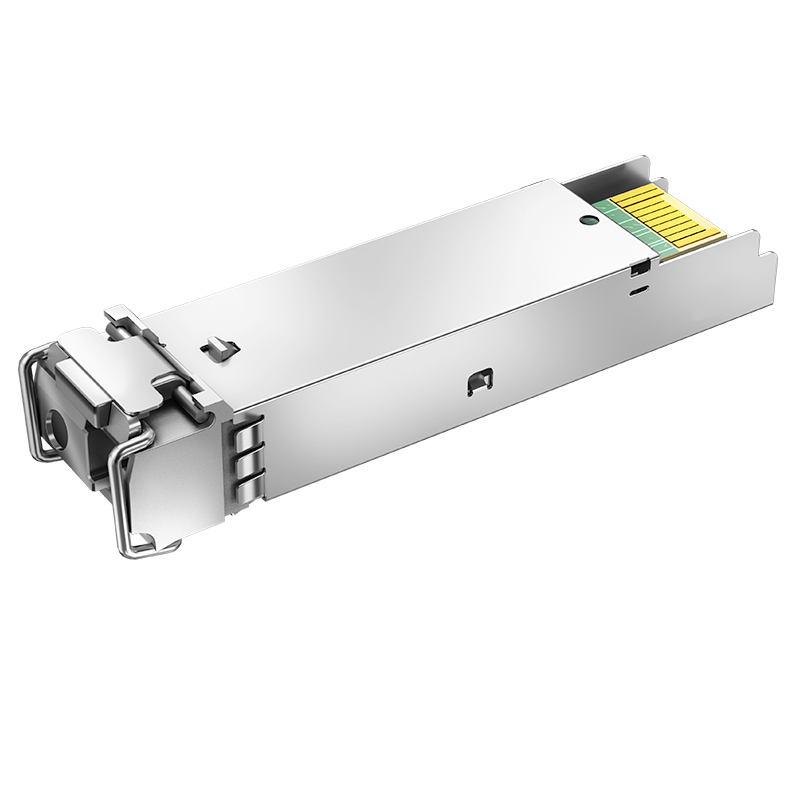

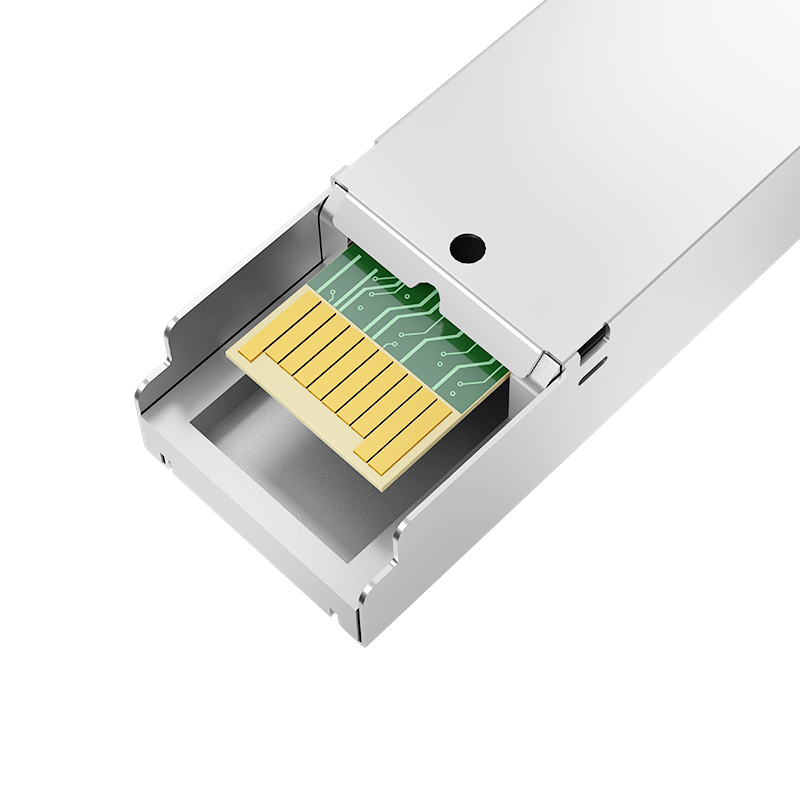

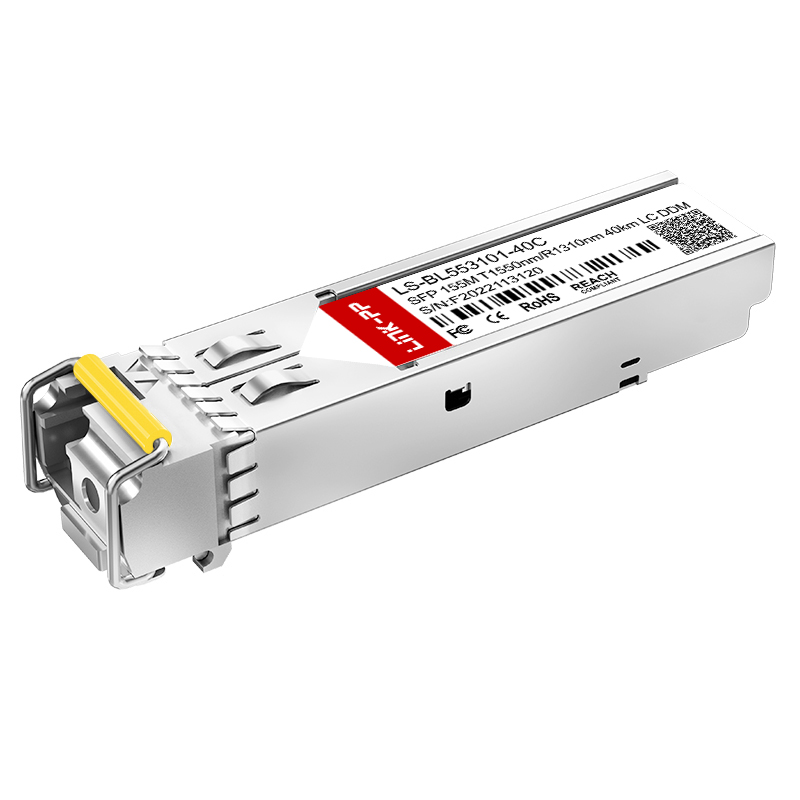

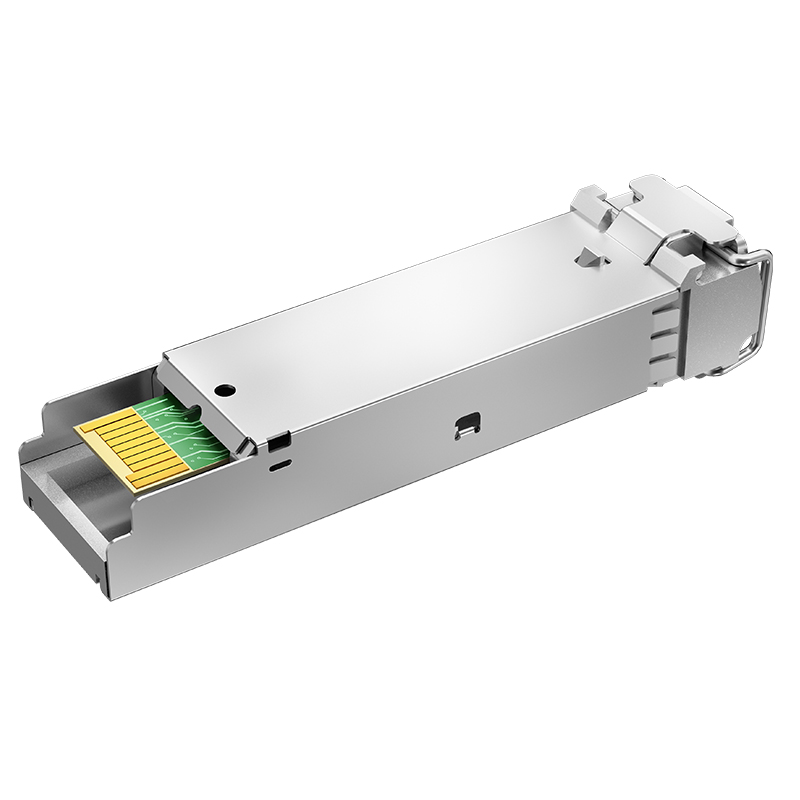

1550nm-TX/1310nm-RX Bidirectional SFP 155M Bidi 40km Simplex LC Optic Transceiver Module

Product Description

1550nm-TX/1310nm-RX Bidirectional SFP 155M Bidi 40km Simplex LC Optic Transceiver Module
Specifications Highlight
Parameter Value
Part No. LS-BL553101-40C
Form Factor SFP
Max Data Rate 155Mbps
Wavelength 1550nm-TX/1310nm-RX
Max Cable Distance 40km
Connector Simplex LC
Media SMF
Transmitter Type FP
Receiver Type PIN
TX Power -8 ~ -1dBm
Receiver Sensitivity < -32dBm
EMC (Electro Magnetic Compatibility) Supported
DDM/DOM Supported
Protocols SFP MSA and SFF-8472
Temperature Range 0 to 70°C / -40 to 85°C
Warranty 5 Years
Sample Available
View Our Solutions
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. A full series of optical modules is provided for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Optical Solutions Map
Support Full Range Of 155M BiDi SFP
Part Number Data Rate Wavelength Distance Components DDM
LS-BL315501-10C 155Mbps 1310nm-TX/1550nm-RX 10km FP/PIN Yes
LS-BL553101-10C 155Mbps 1550nm-TX/1310nm-RX 10km FP/PIN Yes
LS-BL315501-15C 155Mbps 1310nm-TX/1550nm-RX 15km FP/PIN Yes
LS-BL553101-15C 155Mbps 1550nm-TX/1310nm-RX 15km FP/PIN Yes
LS-BL315501-20C 155Mbps 1310nm-TX/1550nm-RX 20km FP/PIN Yes
LS-BL553101-20C 155Mbps 1550nm-TX/1310nm-RX 20km FP/PIN Yes
LS-BL315501-40C 155Mbps 1310nm-TX/1550nm-RX 40km FP/PIN Yes
LS-BL553101-40C 155Mbps 1550nm-TX/1310nm-RX 40km FP/PIN Yes
LS-BL315501-80C 155Mbps 1310nm-TX/1550nm-RX 80km FP/PIN Yes
LS-BL553101-80C 155Mbps 1550nm-TX/1310nm-RX 80km FP/PIN Yes
LS-BL495501-80C 155Mbps 1490nm-TX/1550nm-RX 80km DFB/PIN Yes
LS-BL554901-80C 155Mbps 1550nm-TX/1490nm-RX 80km DFB/PIN Yes
SFP Hardware details
SFP Categories Overview
Application Fields & Scenarios
Optical Transport Networks
Optical Transport Networks
Provide end-to-end DWDM devices with almost all optical devices - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR etc.
Cloud and Enterprise
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, a series of high-speed optical modules has been developed with rates ranging from 10G to 800G, providing high-quality optical interconnection solutions.
Wireless
Wireless
High reliability and performance products with mature, efficient lasers and mainstream chip solutions. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul for various scenarios in 4G/5G systems.
FTTx
FTTx
Aimed at global communication network constructors, FTTx optical fiber access total solutions are covered, ranging from all-optical or optical copper combined access solutions and products.
Subsystems
To ensure the normal operation of the communication line, the optical cable O&M solution is provided which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
Subsystems
Related Products SFP Cage
SFP Cage Accessories
Why Choose Us
Advantage 1
Advantage 2
Advantage 3
Advantage 4
Frequently Asked Questions
Q1. Are you a specialized manufacturer or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, SFP modules, and other related parts.
Q2. Can I request a sample before proceeding to mass production?
Yes, we can offer free samples for quality evaluation and testing, with shipping and freight charges covered by the customer.
Q3. What is the typical delivery and lead time?
For stocked items, products are ready to ship immediately. For mass production orders, the lead time typically ranges from 15 to 30 days.
Q4. What after-sales service and support do you provide?
We provide a comprehensive warranty period along with 24-hour online technical support to assist with deployment, configuration, and troubleshooting.
Q5. Do you support OEM/ODM orders?
Yes, we accept custom OEM and ODM orders to meet specific requirements. Please submit your inquiry details to initiate a discussion.
Q6. What are your key advantages in production?
We possess nearly two decades of production experience, utilizing state-of-the-art manufacturing equipment and strict quality inspection standards, while establishing long-term collaborations with global enterprise partners.
