Product Description

Shielded Magnetic Dual Ports RJ-45 Connector 1840538-3 6610128-1 1840538-4 1840538-2

Separator

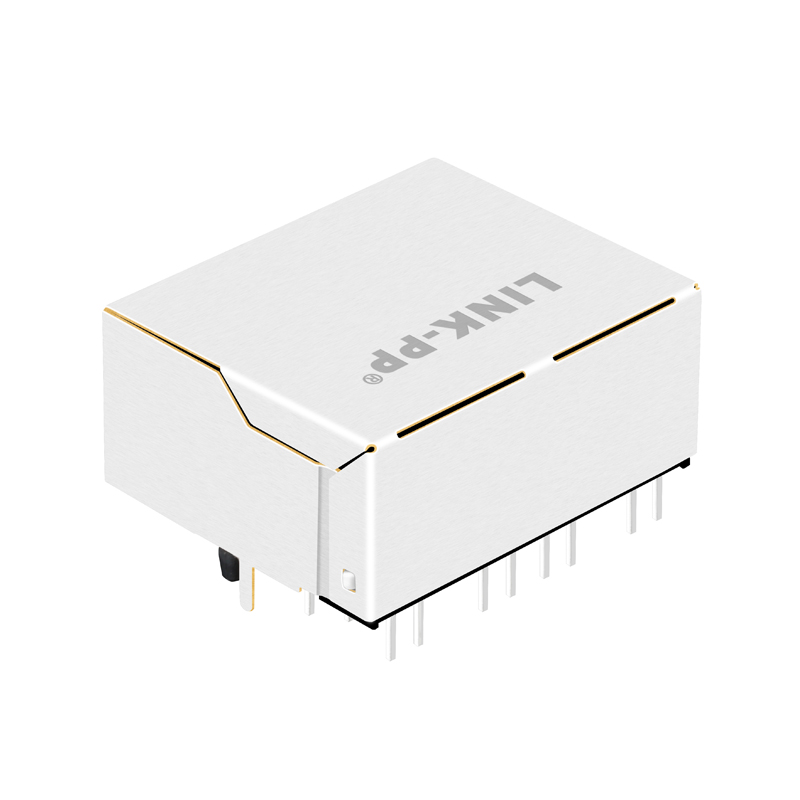

RJ45 Connector Side View

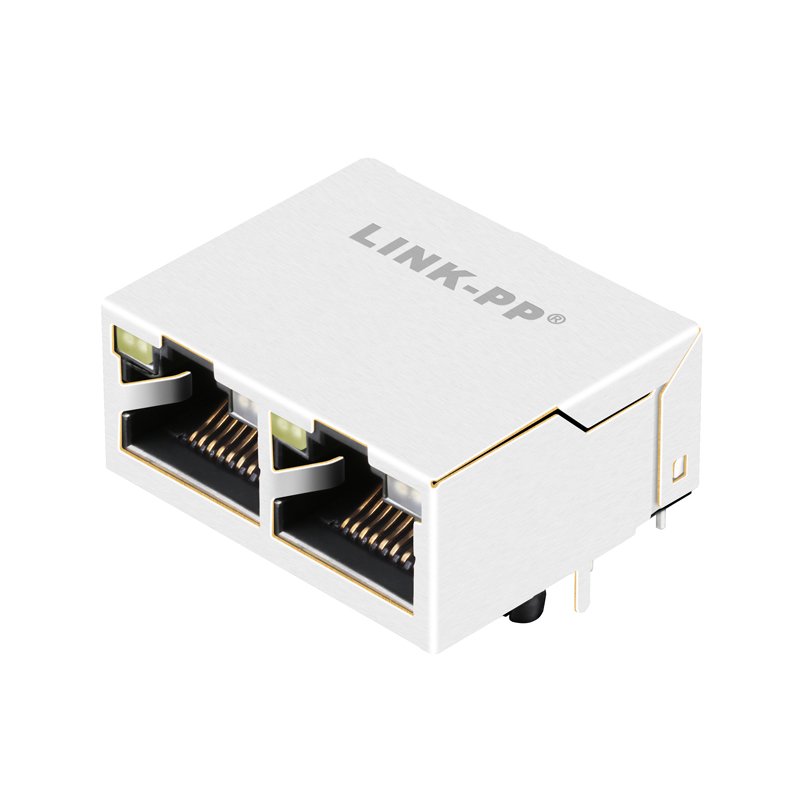

RJ45 Connector Front View
Product Banner
Part Number1840538-3 6610128-1 1840538-4 1840538-2
Application-LANETHERNET(NoN POE)
AutoMDIXYES
BST CircuitYES
Configuration RXT,C
Configuration TXT,C
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Cores Per Port6
DiodesNO DIODES
LED OptionGREEN/GREEN
LatchUP
Number of Ports1x2
PCBFR4
PCB Mount AngleSIDE ENTRY
PCB Retaining PostT POST
Pin TypeTHT SOLDER
RoHS CompliantYES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Shield EMI TabsWITH
ShieldingShielded
Speed10/100 Base-T
Temperature0 ~ 70℃
Turns Ratio RX1CT:1
Turns Ratio TX1CT:1
Detailed Dimensions
Key Industry Preferred Supplier

We are a preferred supplier for major global electronics leaders in telecommunications and industrial automation. Our components are integrated into high-performance boards and networking equipment worldwide.

Technical Specifications Drawing
Product Display 1
Product Display 2

Why Choose Our Magnetic RJ45 Connectors

World’s Leading Supplier of Integrated RJ45 Connectors and Discrete Magnetic Transformers

Professional Certification
  • ISO 9001:2008
  • UL Certification
  • Reach Certification
  • RoHS Compliance
  • Active Environmental Policy
100% Guaranteed Quality
  • Manufactured Under Strict Controls
  • 100% Tested (Not Just Batch Tested)
  • Over 9 Years of OEM Experience for Industry Leaders
  • Successful Partnerships with Samsung, Cisco, Siemens, and Intel
  • Quality Guarantee: 6 Years
Competitive Advantage
  • Highly Competitive Pricing Compared to Market Alternatives
  • Fast Delivery: 2-3 Weeks After Orders
  • Free Samples Available for Testing
  • Custom Design Capabilities for Specific Requirements
Separator

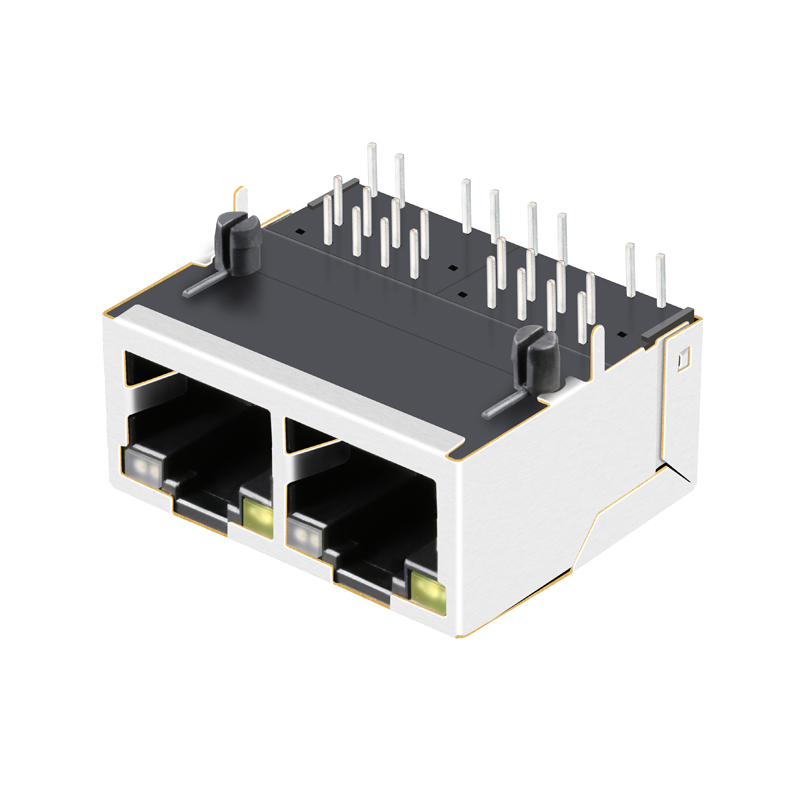

Connector Detail

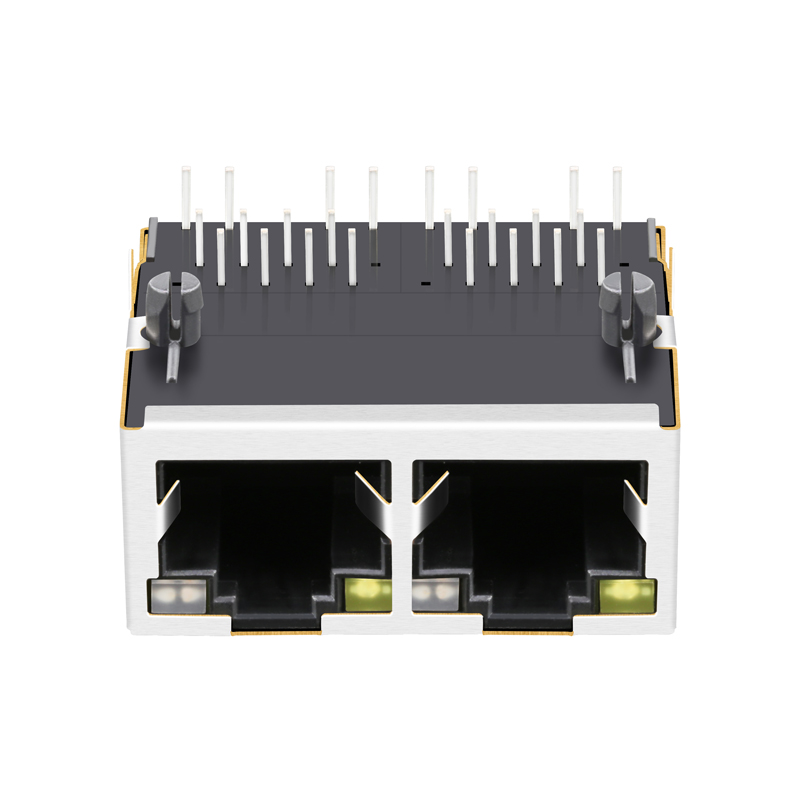

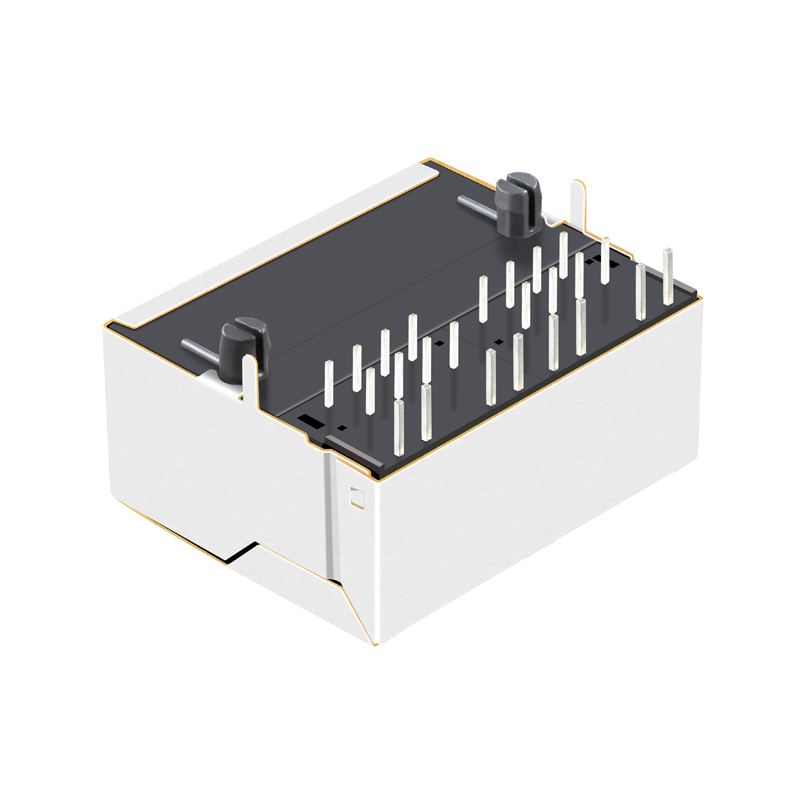

Connector Bottom View

Frequently Asked Questions

1. What is the data transfer speed of this RJ-45 connector?
This connector supports 10/100 Base-T Ethernet speeds, making it suitable for standard high-speed networking applications.
2. Does this specific model support Power over Ethernet (PoE)?
No, this particular part is designed for non-PoE Ethernet applications.
3. What are the LED configuration and color options?
The connector features a dual Green/Green LED configuration for link and activity status indication.
4. What is the operating temperature range for this component?
The component is designed to operate reliably within a temperature range of 0°C to 70°C.
5. Is the connector shielded against EMI?
Yes, it is a fully shielded magnetic connector and includes EMI tabs to ensure superior electromagnetic interference protection.
6. What type of mounting and entry does it use?
It features a side entry (right angle) PCB mount angle and utilizes Through-Hole Technology (THT) soldering with a T-Post for secure mechanical attachment.
