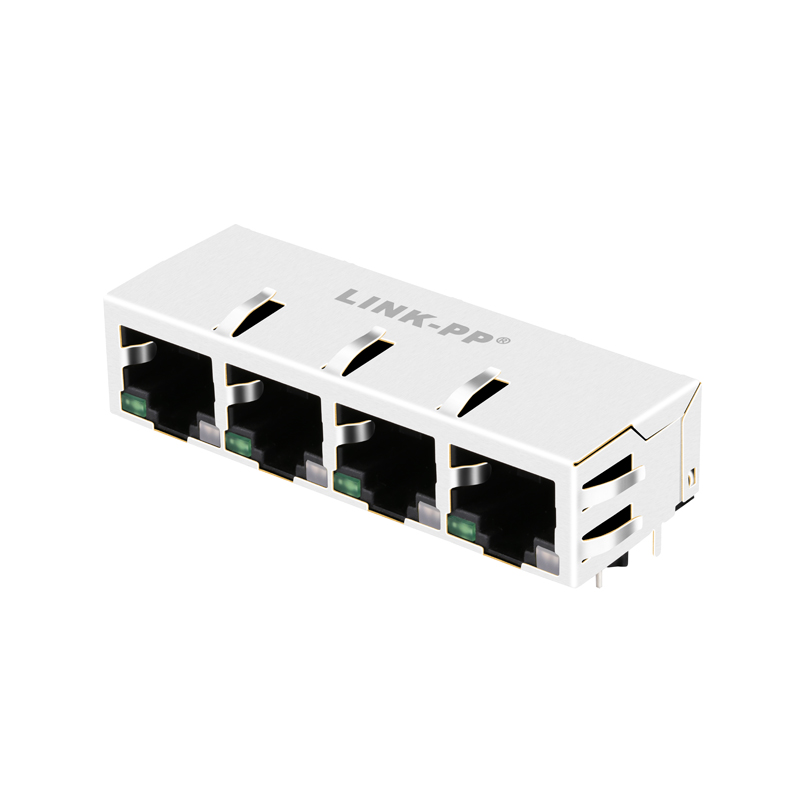

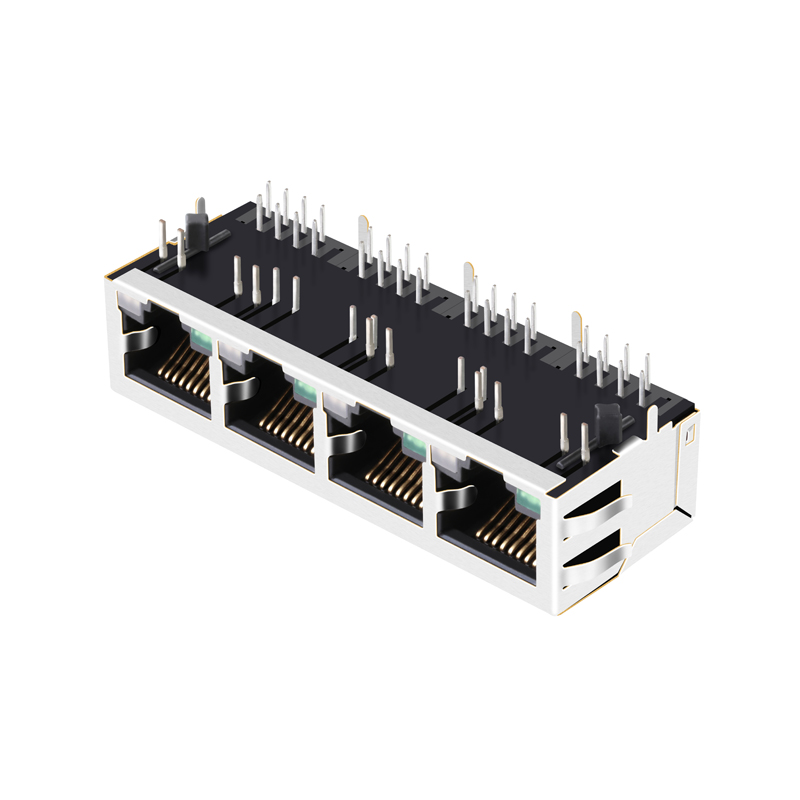

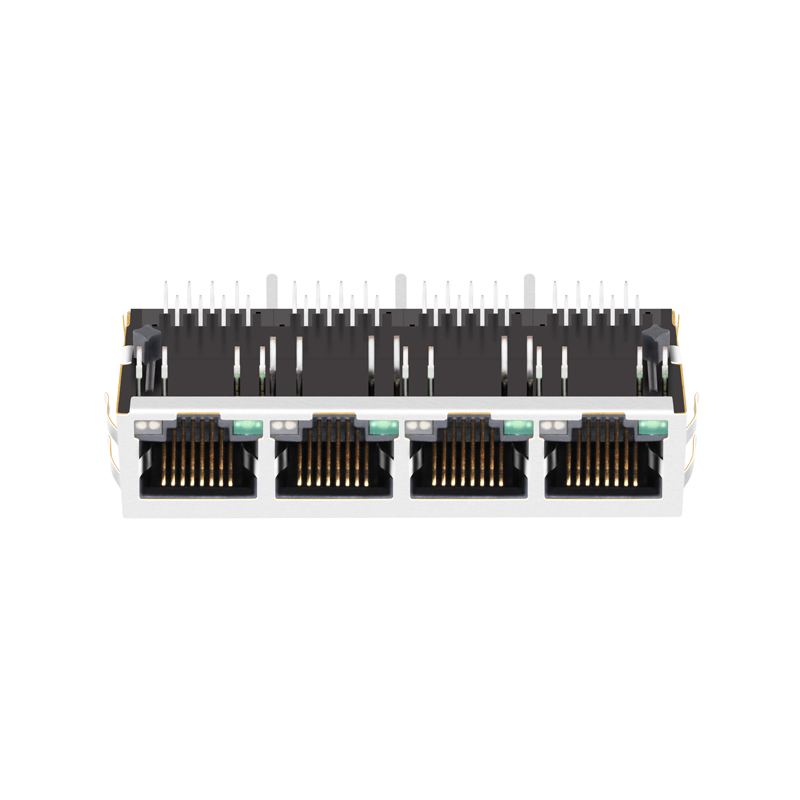

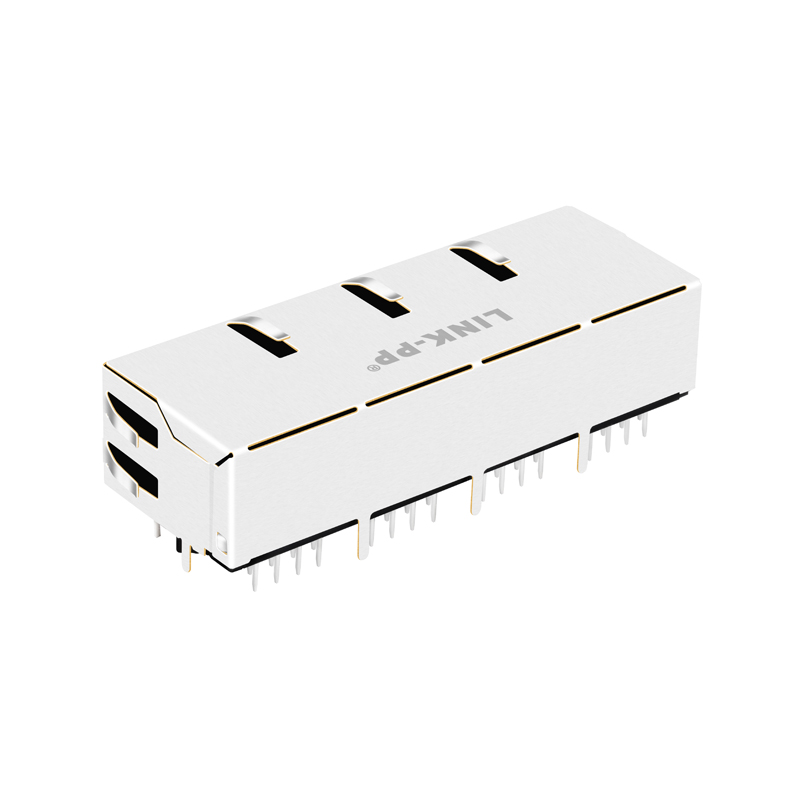

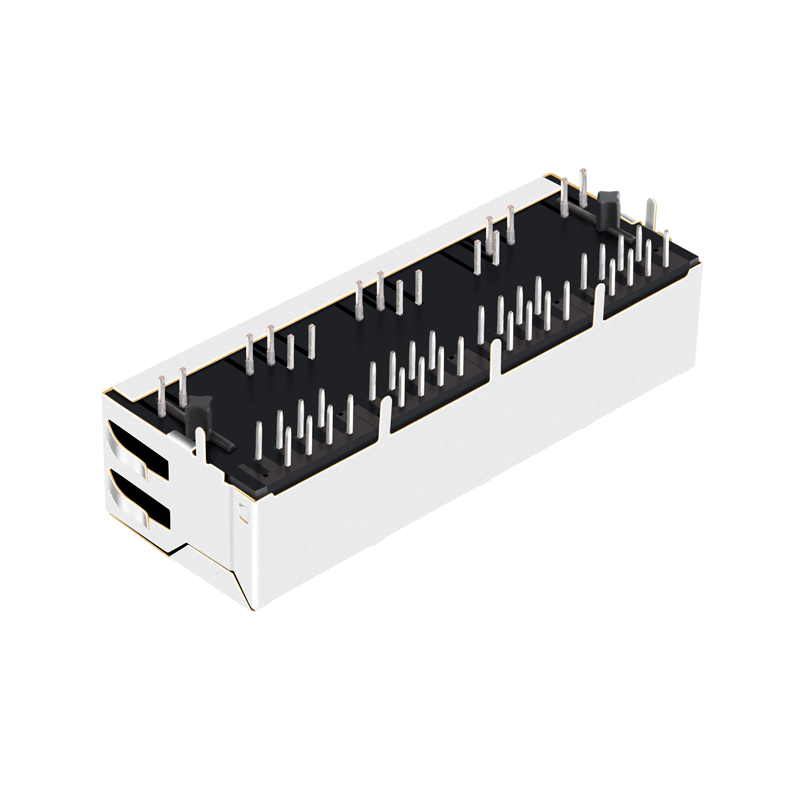

Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7
| Part Number |
5-6610068-7 |
| AutomDX |
YES |
| Bst Circuit |
YES |
| Configuration RX |
T,C |
| Configuration TX |
T,C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u"/50u" |
| Cores Per Port |
4 |
| Diodes |
NO DIDES41 |
| LED Option |
GREEN/GREEN&ORANGE |
| Latch |
UP |
| Number of Ports |
1X4 |
| PCB |
FR4 |
| PCB Mount Angle |
SIDE ENTRY |
| PCB Retaining Post |
T POST |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search |
YES |
| Shield EMI Tabs |
WITH OR WITHOUT |
| Speed |
1000 BASE-T |
| Temperature |
0 TO 70°C/-40 TO 85°C |
| Turns Ratio RX |
1CT:1 |
| Turns Ratio TX |
1CT:1 |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
- ISO 9001:2008
- UL Certification
- Reach Certification
- RoHS Compliance
- Active Environmental Policy
- Manufactured Under Strict Controls.
- 100% Tested (Not Just Batch Tested)
- Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel...
- Quality Guarantee: 6 Years
- More Competitive Price Than Pulse Tyco Halo Wurth And Amphenol
- Delivery Time: 2-3 Weeks After Orders
- Free Samples Are Available
- Provide New Design For Customer Requirements
- 90% Off Shipping Cost By DHL UPS FEDEX Or TNT
Frequently Asked Questions (FAQ)
What is the data transmission speed of this RJ45 connector?
This RJ45 modular jack supports Gigabit Ethernet speeds up to 1000 BASE-T.
What is the operating temperature range for the 5-6610068-7 connector?
The connector operates efficiently within temperature ranges of 0 to 70°C for standard environments, or -40 to 85°C for industrial setups.
Does this RJ45 modular jack come with LEDs?
Yes, it features integrated LED indicators with Green/Green & Orange light configurations.
What is the contact mating area plating option?
The contact mating area features gold plating, with thickness options of 6u", 15u", 30u", or 50u" depending on application requirements.
Is this product compliant with environmental standards?
Yes, it is RoHS compliant (RoHS-5 with lead in solder exemption) and aligns with active environmental policies.
Are free samples available for project testing?
Yes, free samples are available to support testing and validation for new designs or project requirements.
