Product Description

2 * 8 Port RJ 45 Jack, Shielded 16port RJ45 Connector J2042H3B J2045H3C J2039H3C 0853-2X8R-69

RJ45 Jack Header

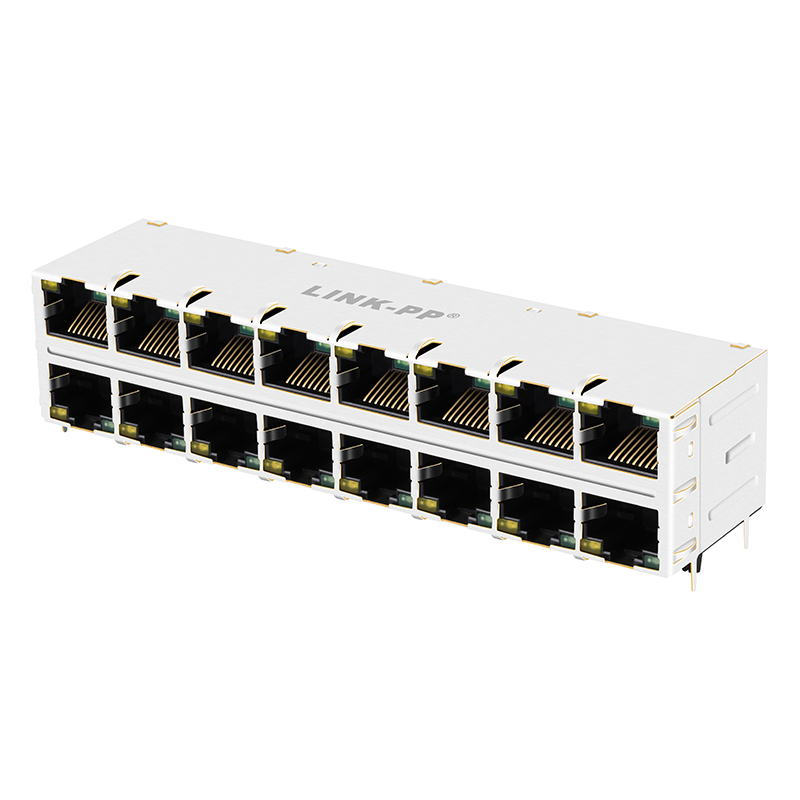

16 port RJ45 Connector
RJ45 Connector Detail

Technical Specifications

Part Number RJ45 connector
Application-LAN ETHERNET (NON POE)
AutoMDIX YES
Bst Circuit YES
Configuration RX / TX T, C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores Per Port 8
LED Option WITH LEDS
Latch Up/Down
Number of Ports 2x8
PCB Mount Angle SIDE ENTRY
Pin Type THT SOLDER
Speed 10/100/1000 Base-T
Temperature -40°C ~ 85°C
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Structural Drawing

Why Choose Our Solutions

A leading global supplier of Integrated RJ45 Connectors and Discrete Magnetic Transformers.

✓
Professional Certification: ISO 9001:2008, UL Certification, Reach Certification, RoHS Compliance, and Active Environmental Policy.
✓
100% Quality Guarantee: Manufactured under strict controls and 100% tested (not just batch tested). Quality guarantee for 6 years.
✓
Competitive Service: Delivery time within 2-3 weeks, free samples available, and specialized designs for customer requirements.
Manufacturing Quality
Port Details
Back View
Certification Banner
Product Range 1
Product Range 2

Frequently Asked Questions

Q1: What is the transmission speed of this 16-port RJ45 connector? A1: This connector supports 10/100/1000 Base-T speeds, making it suitable for Gigabit Ethernet applications.
Q2: Does this connector support Power over Ethernet (PoE)? A2: No, this specific model is designed for non-PoE Ethernet applications.
Q3: What are the plating options for the contact area? A3: The contact mating area is available with Gold plating options of 6u", 15u", or 30u" to meet different durability requirements.
Q4: Can this connector withstand harsh industrial temperatures? A4: Yes, it is rated for an industrial operating temperature range of -40°C to +85°C.
Q5: Is this product compliant with international environmental standards? A5: Yes, it is RoHS compliant and meets Reach certification standards, following an active environmental policy.
Q6: What is the lead time for bulk orders? A6: Typically, the delivery time is 2-3 weeks after the order is confirmed, and free samples are available for quality evaluation.
