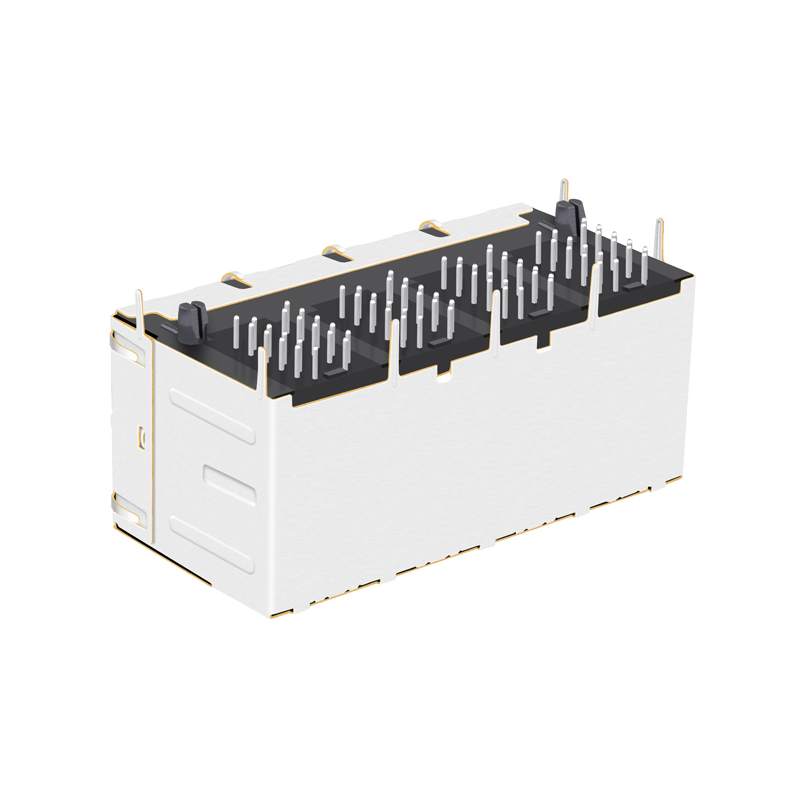

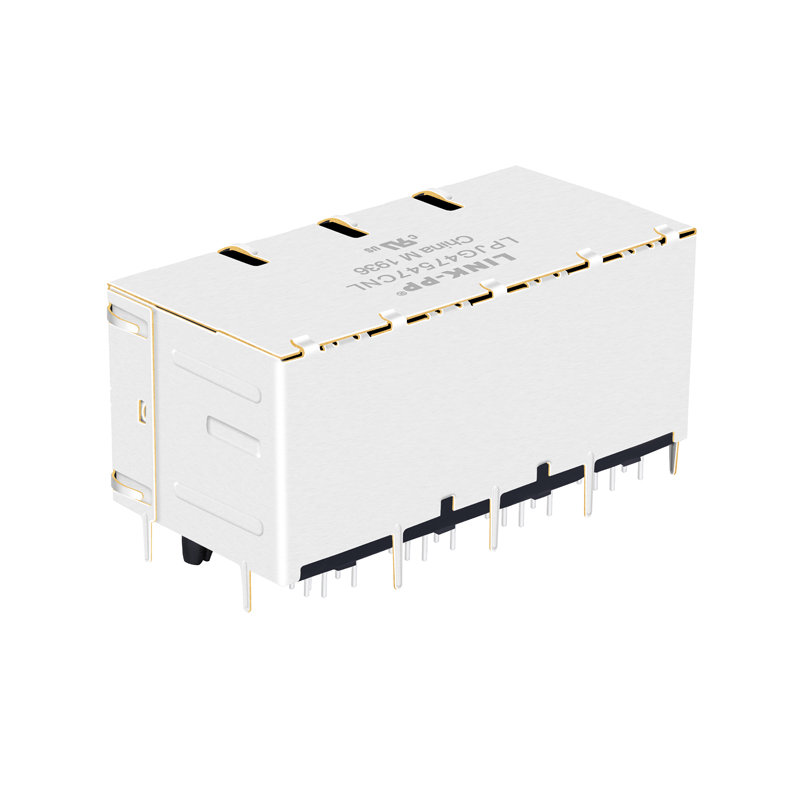

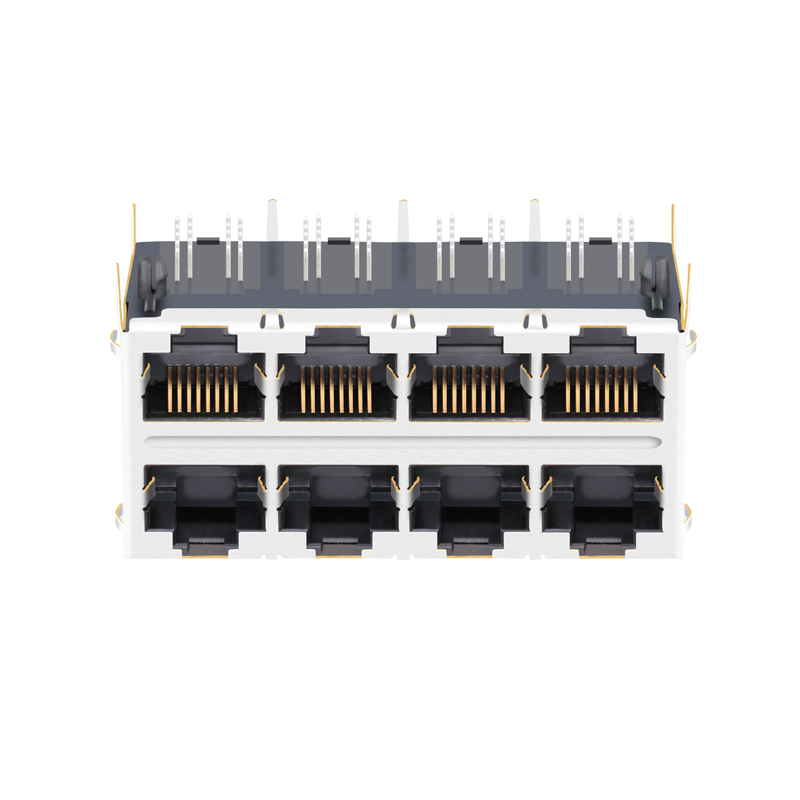

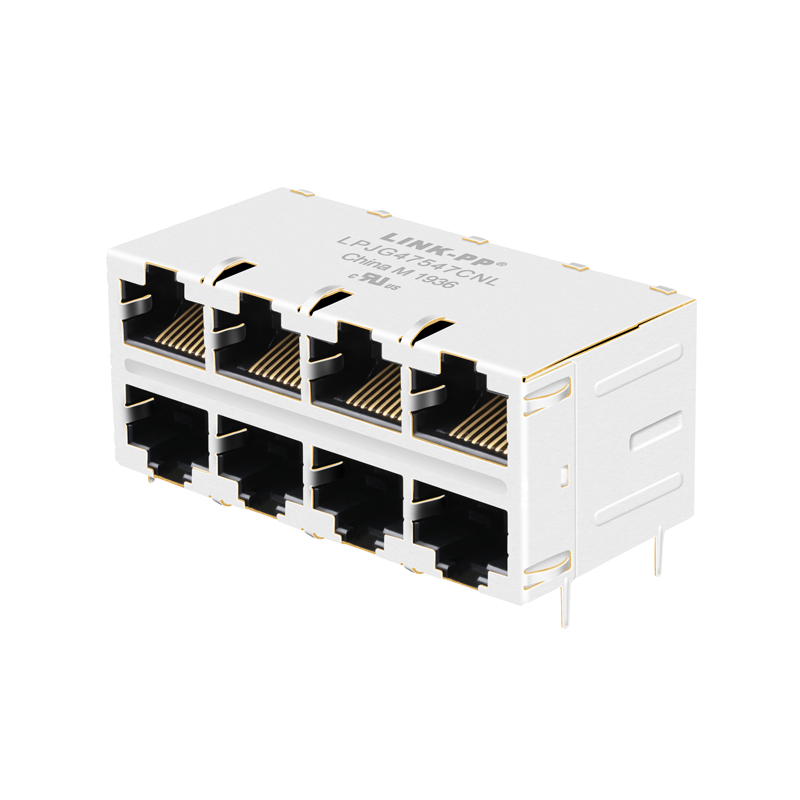

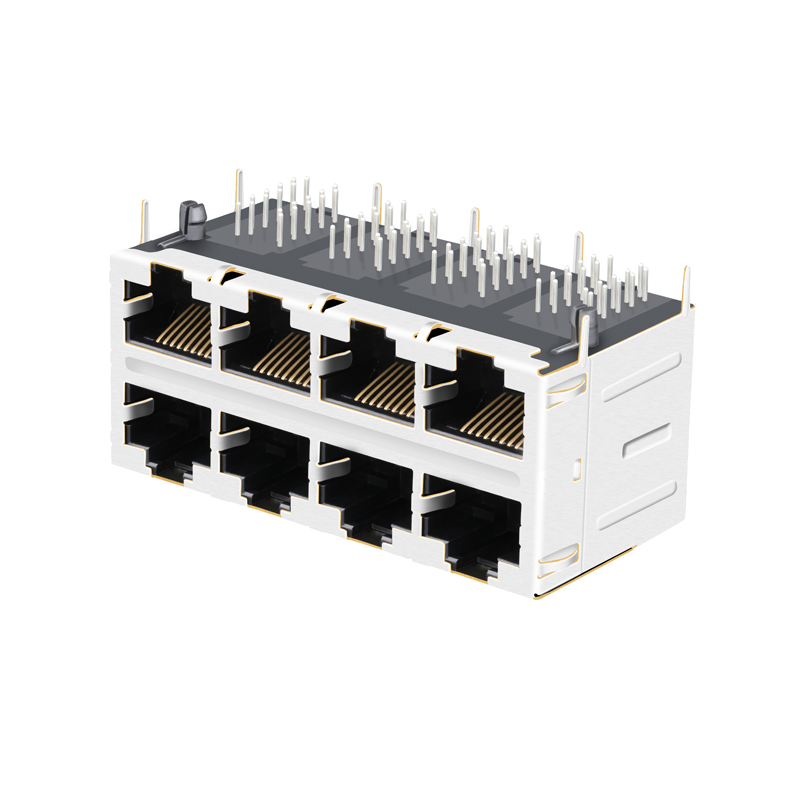

10P8C RJ45 Ethernet 2xN RJ 45 Connector, 2 * 4 Port RJ-45 Jack JC0-0131 DA6T00101 DA6T10303 DU1T202A1

Product Description

Product Overview

10P8C RJ45 Ethernet 2xN RJ 45 Connector, 2 * 4 Port RJ-45 Jack JC0-0131 DA6T00101 DA6T10303 DU1T202A1

Products Description
ItemRJ45 Female Connector
Part NumberLPJG47547CNL
Compatible WithJC0-0131 DA6T00101 DA6T10303 DU1T202A1
Part StatusActive
Connector TypeJack
Number of Positions/Contacts8p8c (RJ45, Ethernet)
Application-LanEthernet (Non-PoE)
Number of Ports2x4 Port
Speed1000 Base-T
LatchDown/Up
Cores per Port4
Orientation90° Angle (Right)
PCB Mount AngleSIDE ENTRY
Shield EMI TabsWith
LED OptionWithout
PCB MaterialFR4
PCB Retaining PostT POST
Temperature0°C TO 70°C / -40°C TO 85°C
Bst CircuitYes
AutoMDXYES
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C
Product Detail 1
Product Detail 2
Technical Drawing
Product Spec
Product Spec 2
Production View
Service Banner
Certification
Quality Control
Company Profile
Established in 1997, our company is a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.

We are a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
Factory View 1
Factory View 2
Laboratory
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer free samples to test quality, though shipping fees are covered by the customer.
What is your delivery time?
Stock items are ready to ship immediately; mass production typically takes 15-30 days.
What after-service do you offer?
We provide a one-year guarantee period and 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, we welcome OEM/ODM inquiries. Please contact us for a detailed discussion on your requirements.
What are your primary advantages?
With over 19 years of production experience, we have established long-term partnerships with global industry leaders.
