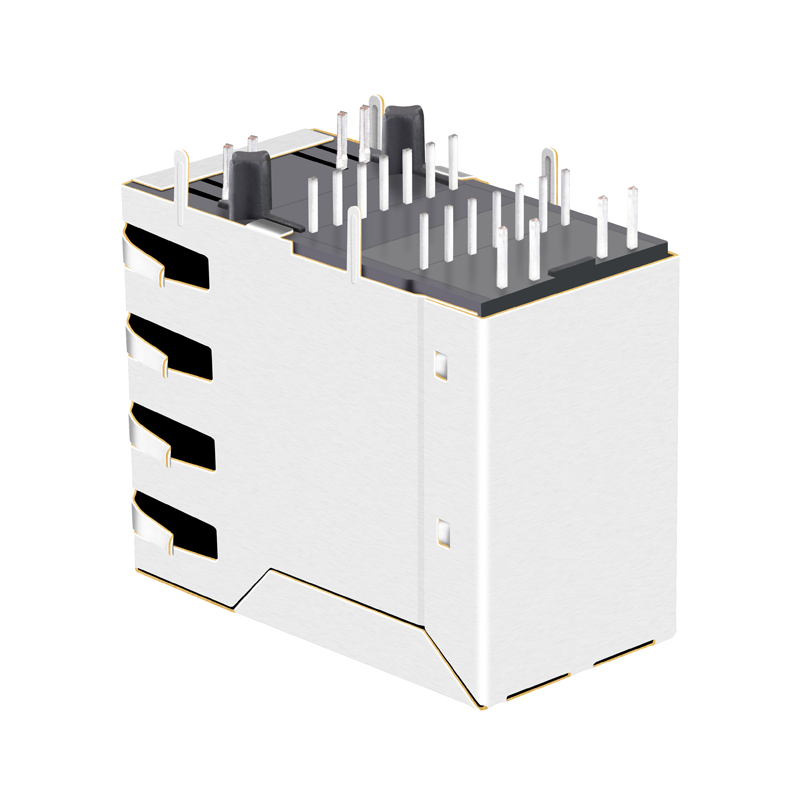

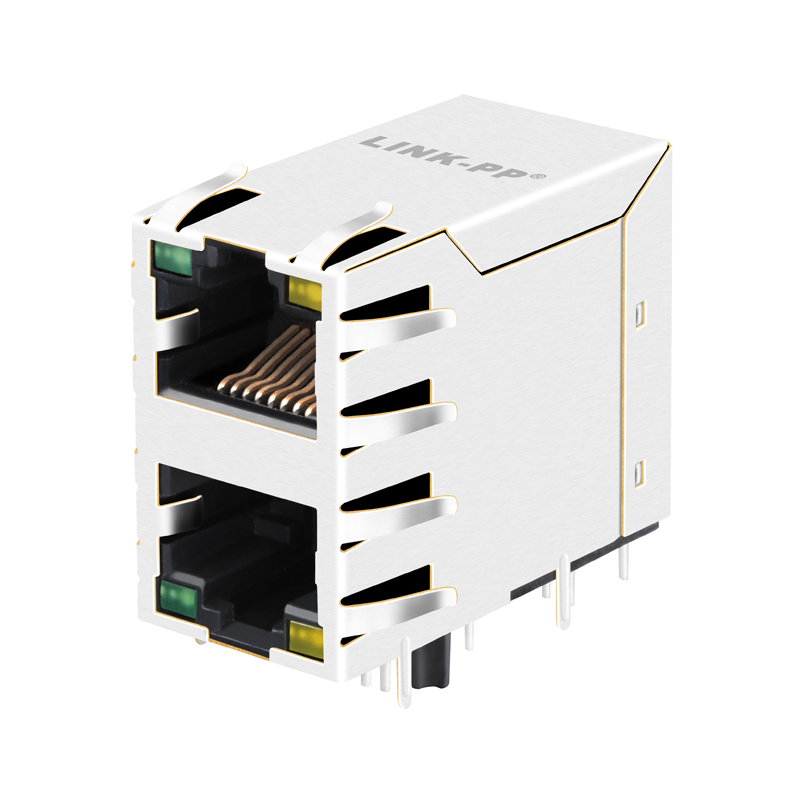

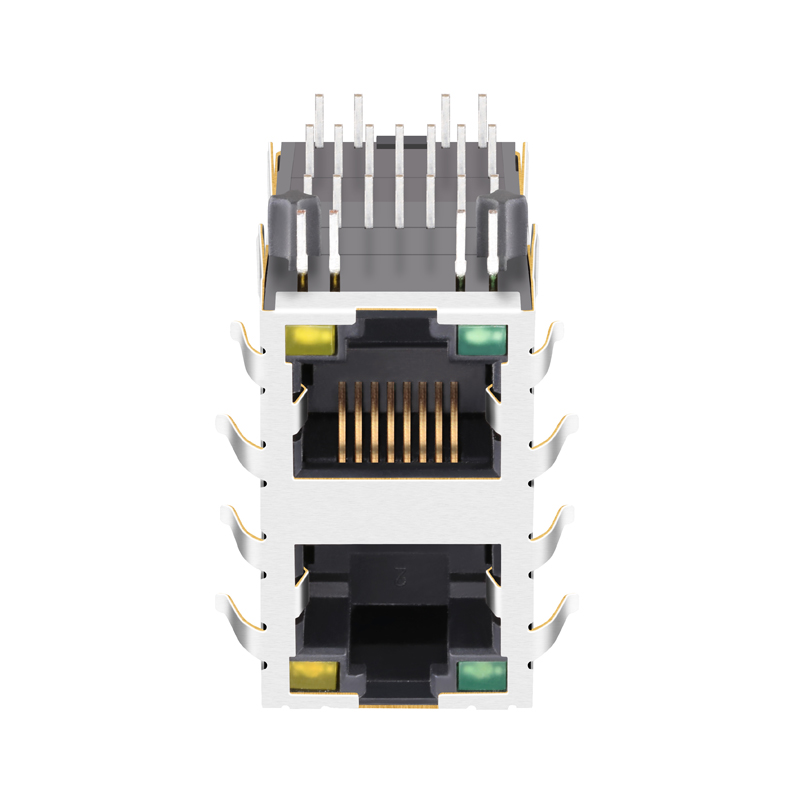

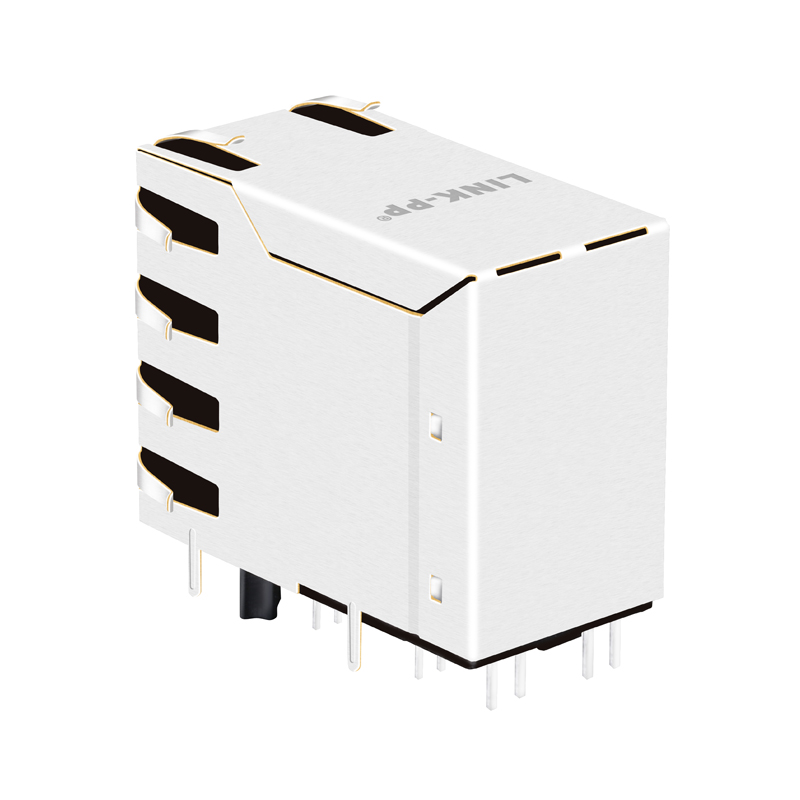

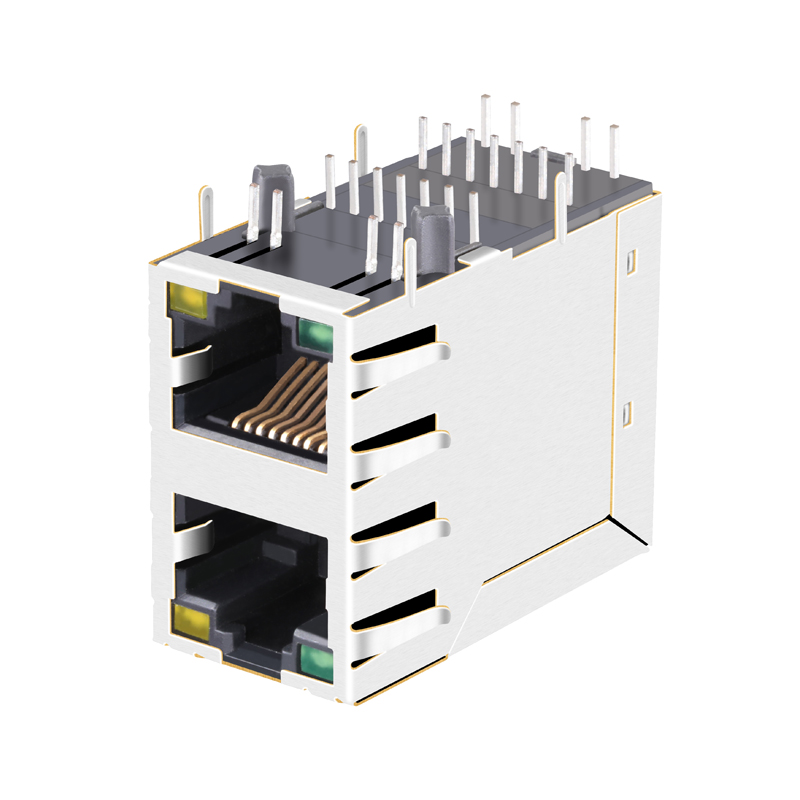

China Manufactures 2x1 Port Shielded RJ45 Modular Jack

Send Inquiry

Product Description

2x1 Port RJ45 Connector 10/100 Base-t Integrated Magnetics
Part Number	LPJ17202CNL
Cross Reference	MIC24A10-0101W-LF3 / 7499051002
Application-Lan	ETHERNET (Non PoE)
AutoMDIX	YES
Bst Circuit	YES
Configuration RX/TX	T, C / T, C
Contact Plating	GOLD 6u"/15u"/30u"
LED Option	Without
Latch Direction	TAB DOWN / Up
Number of Ports	1X1
PCB Material & Mount	FR4 / Side Entry
Pin Type	THT SOLDER
RoHS Compliant	YES (With lead in solder exemption)
Speed	10/100 Base-T
Temperature Range	-40 TO 85℃
Turns Ratio	1CT:1CT

Why Choose Our Solutions

World Leader Supplier Of Integrated RJ45 Connectors And Discrete Magnetic Transformers

Application Showcase

Look for our Logo on leading development boards and hardware.

Frequently Asked Questions

1. What is the transmission speed of this RJ45 Modular Jack?

This connector is designed for 10/100 Base-T Ethernet applications, ensuring reliable data transfer for standard network environments.

2. Can this connector withstand extreme industrial temperatures?

Yes, it features an industrial-grade operating temperature range of -40°C to +85°C, making it suitable for demanding environments.

3. Does this product come with a quality guarantee?

We provide a 6-year quality guarantee. All products undergo 100% testing (not just batch testing) to ensure defect-free performance.

4. Is this RJ45 connector compliant with international standards?

Absolutely. Our products are manufactured under ISO 9001:2008 standards and hold UL, Reach, and RoHS certifications.

5. What is the typical lead time for an order?

The standard delivery time is approximately 2 to 3 weeks after the order is confirmed. Free samples are also available for evaluation.

6. Does this model include integrated LEDs?

This specific model (LPJ17202CNL) is a "Without LED" version. It features integrated magnetics and a shielded design for EMI protection.
