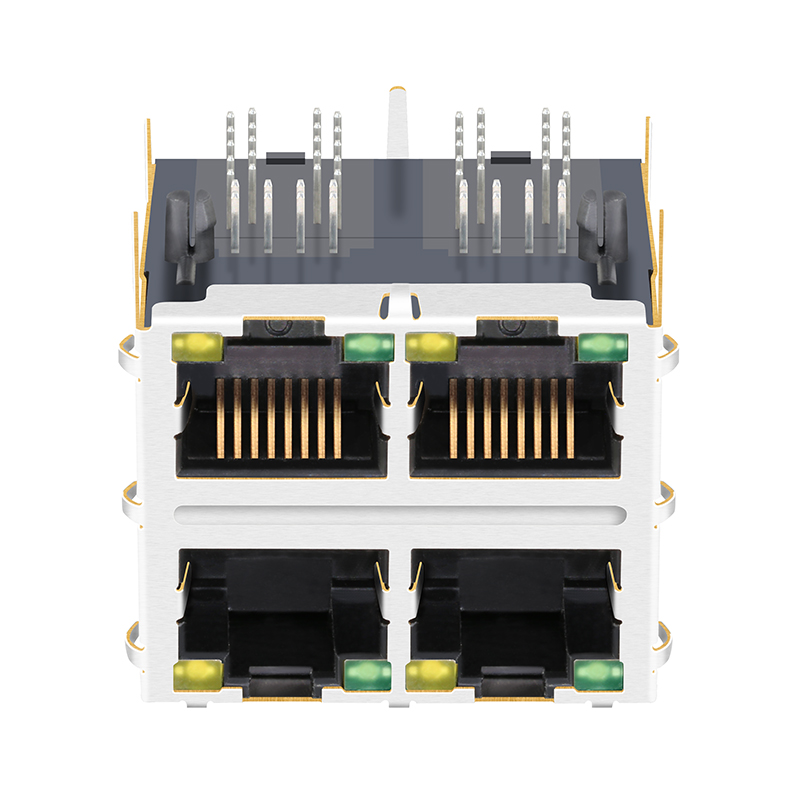

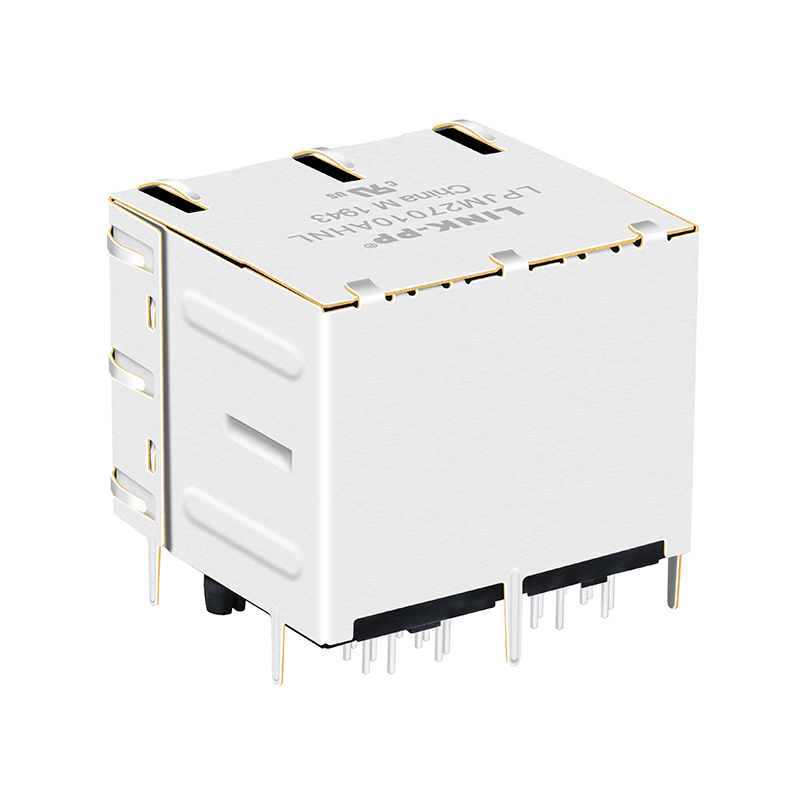

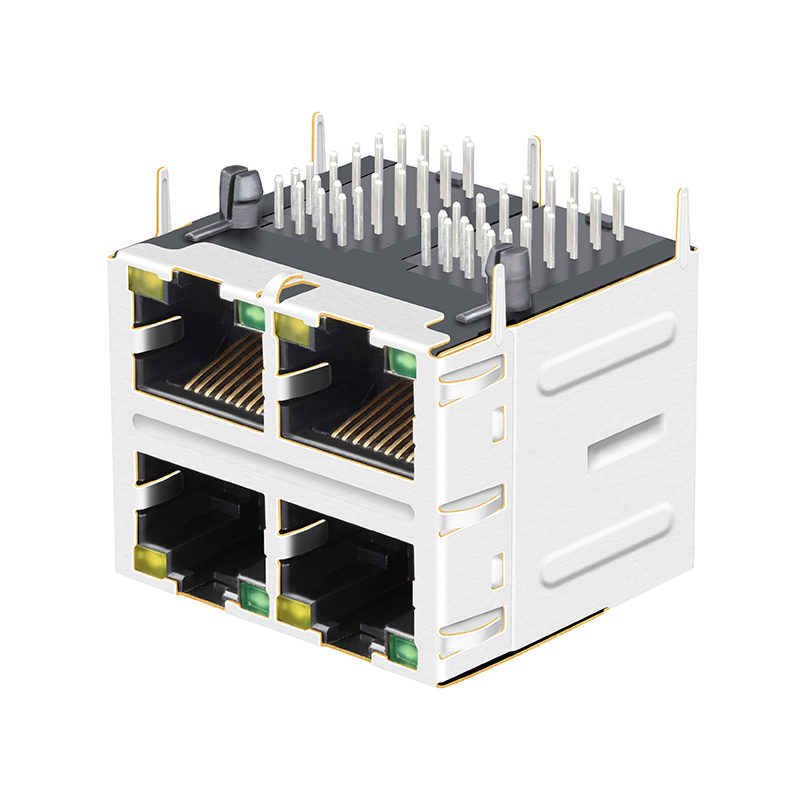

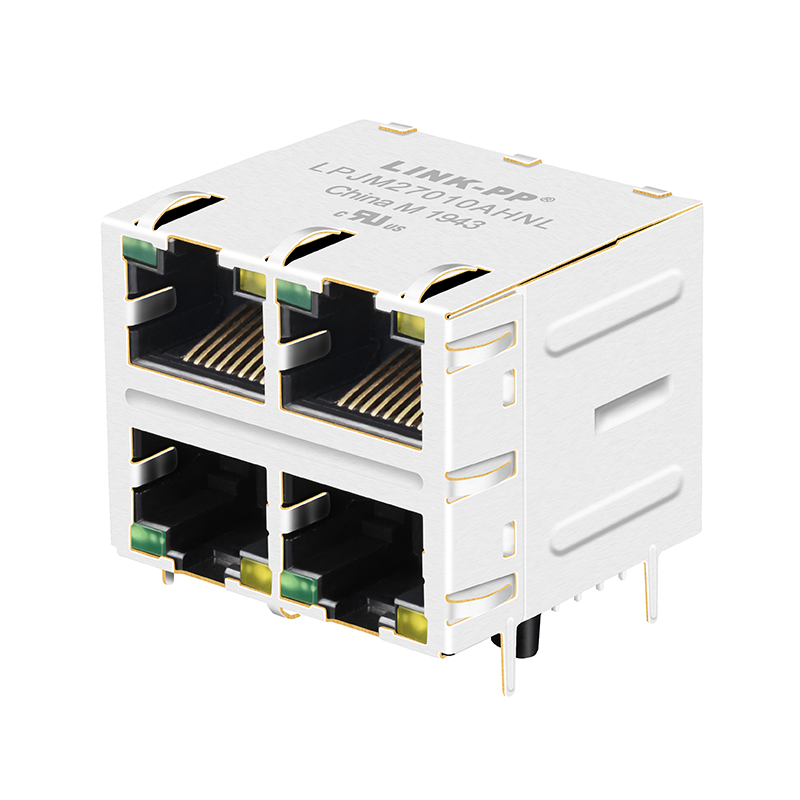

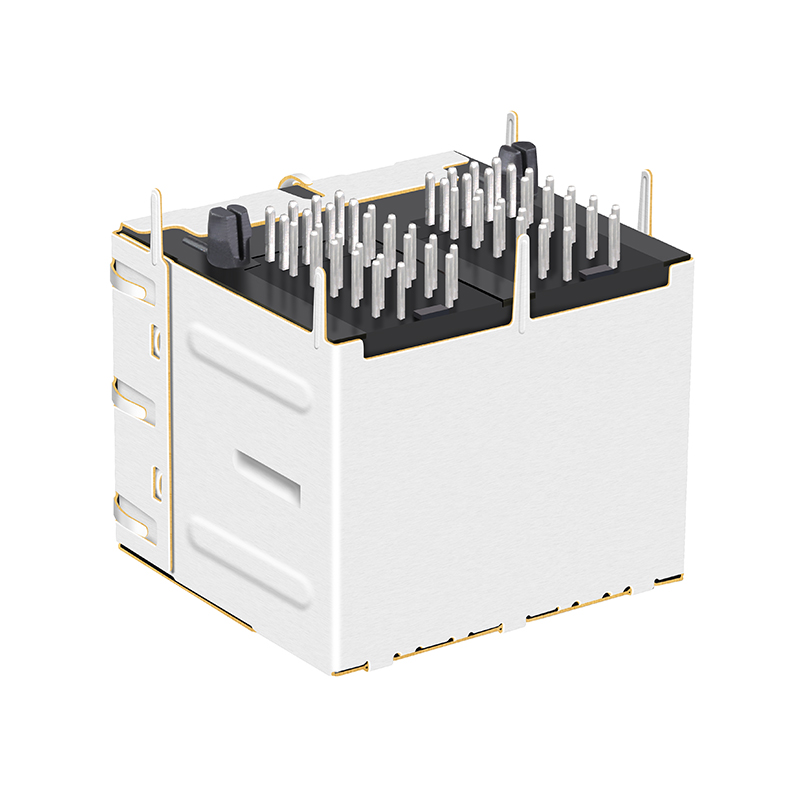

| Item | RJ45 Female Connector |
| Part Number | LPJM27010AHNL |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 10p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet (Non-PoE) |
| Number of Ports | 2x2 Port |
| Speed | 2.5G Base-T |
| Latch Direction | Down |
| Cores per Port | 8 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | With |
| LED Option | Green/Yellow |
| PCB Material | FR4 |
| PCB Retaining Post | T POST |
| Temperature Range | 0℃ TO 70℃ |
| Bst Circuit | Yes |
| AutoMDIX | YES |
| Contact Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
Established in 1997, our company is a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.
As a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, we serve more than 10,000+ customers across 200 countries. By building multi-warehouse systems and continuously increasing inventory, we are committed to being a world leader in Ethernet RJ45 connectors and LAN transformer solutions.
