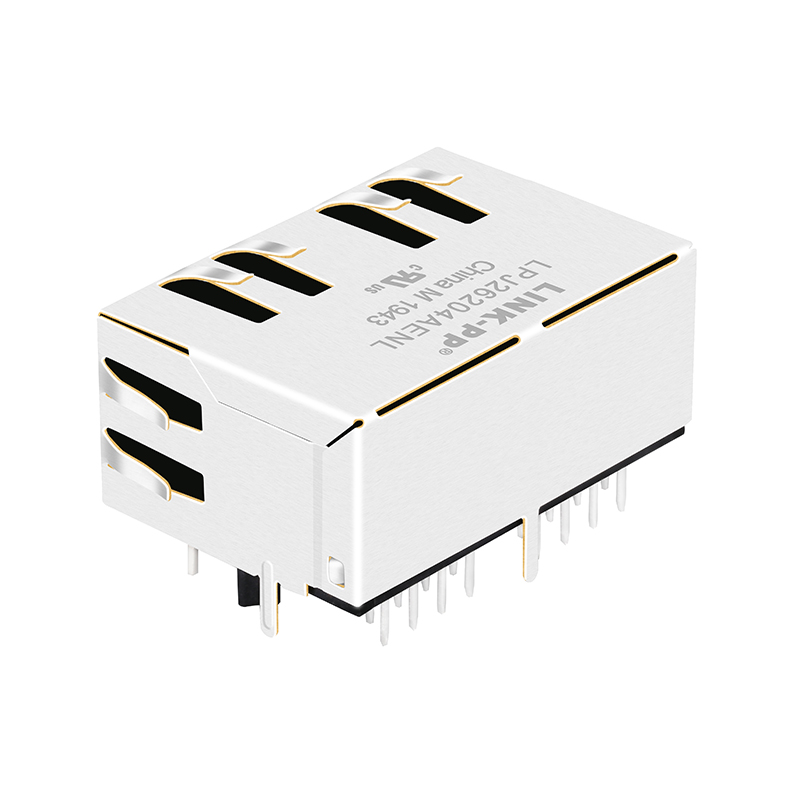

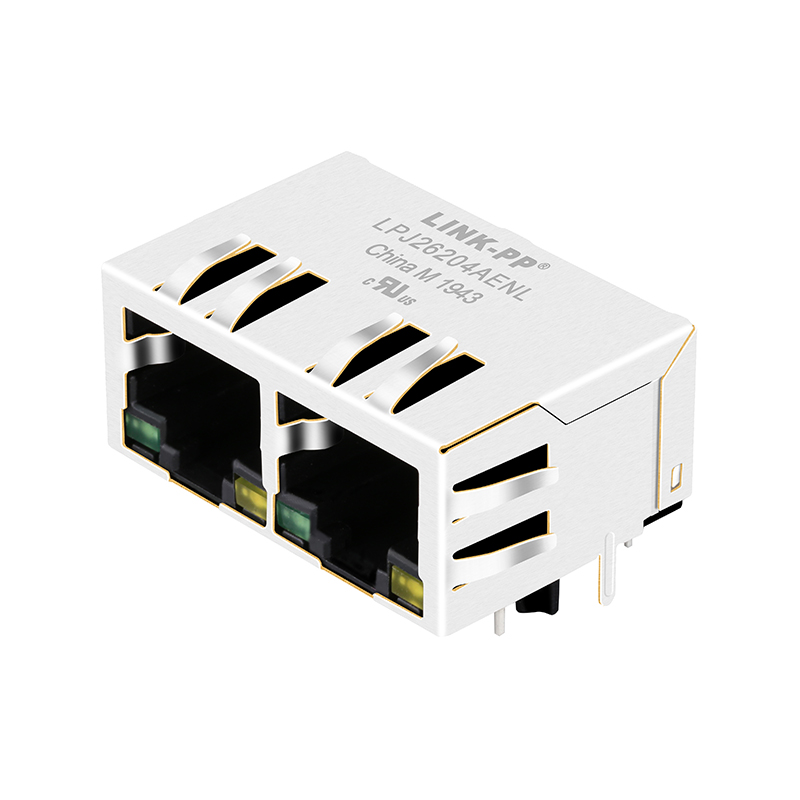

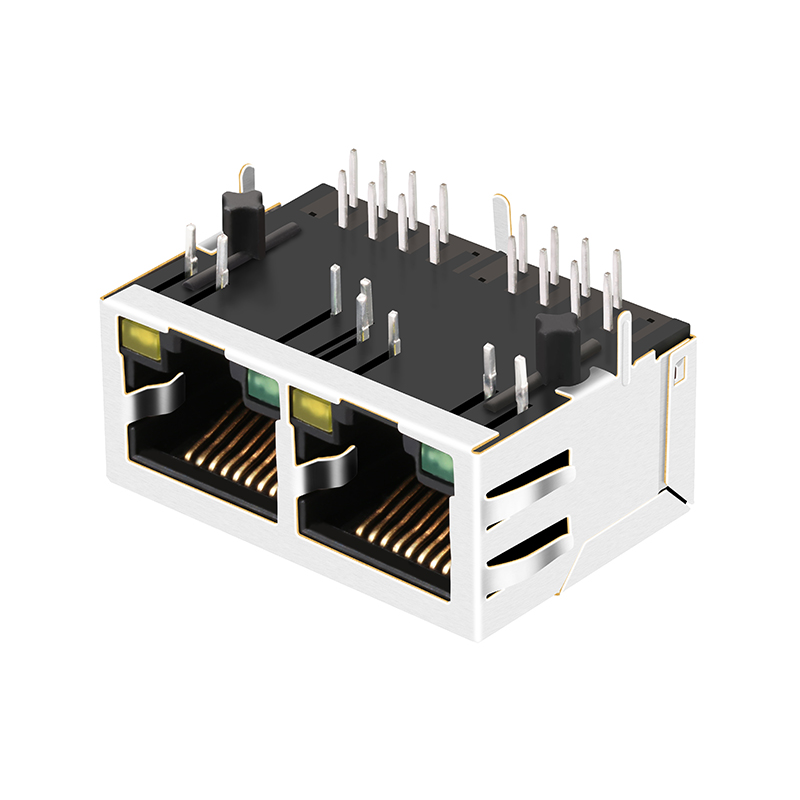

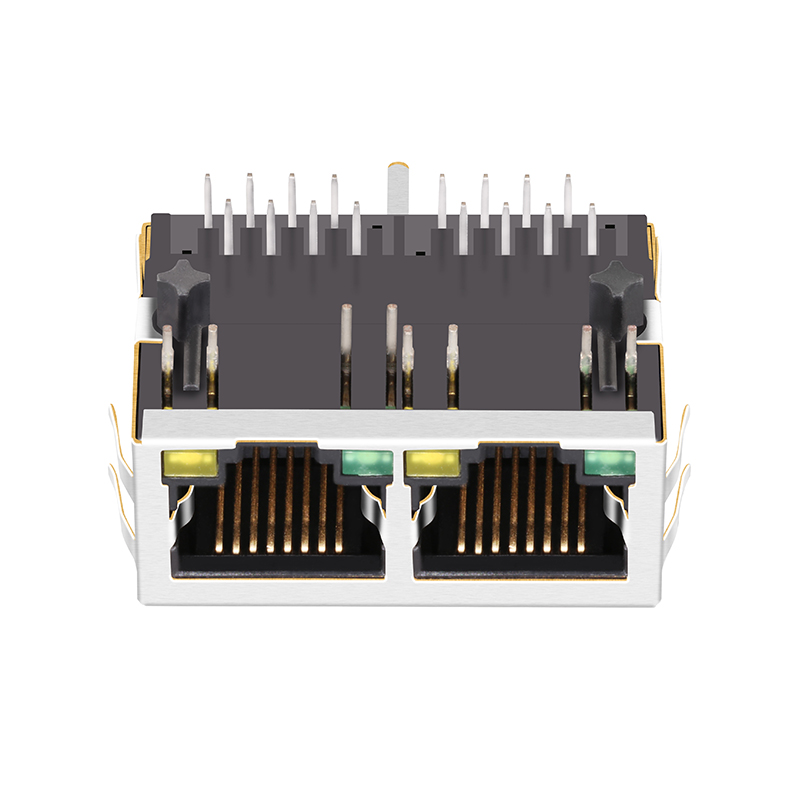

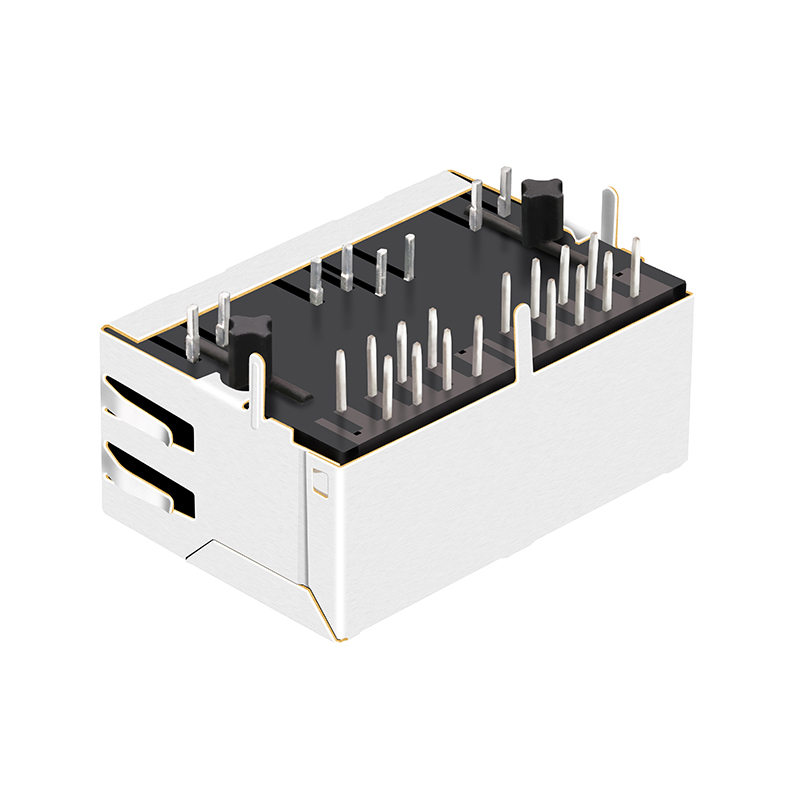

LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
1 / 5
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector

LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector

Send Inquiry

Product Description

Product Description

Product View 1
Product View 2
Product View 3

Specification

Item Value
Model NumberLPJ26204AENL
Part StatusActive
Connector TypeRJ45
Applications-Lan10/100 Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Contact Finish Thickness6.00µin (0.152µm)
LED ColorGreen / Yellow
Number of Cores per Jack4
ShieldingShielded, EMI Finger
Number of Ports1x2 Port
FeaturesBoard Guide
Tab DirectionDown
Contact FinishGold
Configuration RX/TXT,C
Turns Ratio RX/TX1CT:1CT
Operating Temperature0°C ~ 70°C

Applications & Features

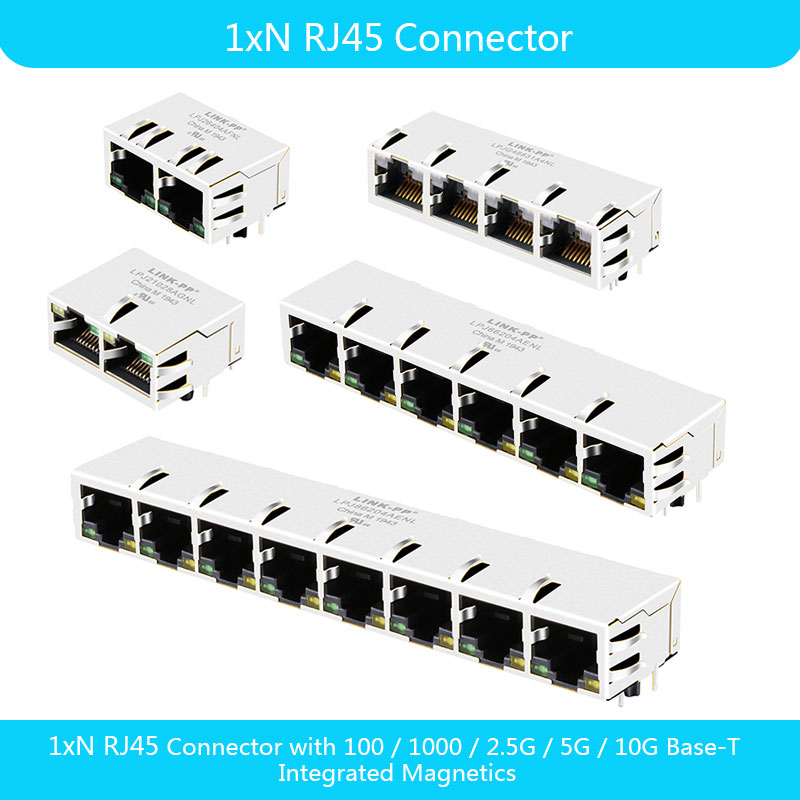

Application Features
10 / 100 / 1000 / 2.5G / 5G / 10G Base-T 1xN Port RJ45 Connector
Suitable for industrial temperatures from –40 °C up to +85 °C. Compatible to Industrial Ethernet systems like EtherCAT or Profinet. Compliant with most IC’s for Ethernet applications such as Microchip, Broadcom, Marvell. Ideal for Hubs, Routers, Switches, IP cameras, and IoT applications.

Packing & Delivery

Package Details:
Tray packing. Carton size: 37*30*30cm.
G.W./carton: 9kg | Qty/carton: 600pcs | SPQ: 30pcs | N.W/pcs: 0.015kg
Packing Info

Production Facility

Facility 1
Facility 2
Facility 3
Facility 4
Facility 5
Facility 6
Facility 7

Frequently Asked Questions

1. How is product quality guaranteed?
We ensure quality through a pre-production sample before mass production and a final inspection before every shipment.
2. What types of products can I purchase?
We offer a wide range of components including RJ45 Magnetics, Lan transformers, Modular Jacks, and RJ11 Connectors.
3. What certifications do your products hold?
Our manufacturing processes and products are certificated by ISO9001, RoHS, REACH, CE, and UL standards.
4. What are the key features of the RJ45 connectors?
Features include gold contact finishing, shielding with EMI fingers, board guides, and support for 10/100 Base-T up to 10G applications.
5. What delivery terms are accepted?
Accepted delivery terms include FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DDP, DDU, and Express Delivery.
6. What payment methods are supported?
We accept multiple payment types including T/T, L/C, D/P, MoneyGram, Credit Card, PayPal, and Western Union in various global currencies.
