IEEE802.3af 1000 Base-T Single Port Transformer Module QT24A03

Product Description

Transformer Modules Overview
IEEE802.3af 1000 Base-T Single Port Transformer Module QT24A03
Products Description
Item Lan Transformer
Replaceable Brand Model QT24A03
Part Status Active
Construction Open Frame
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(Non PoE)
Number of Ports 1 Port
Speed 1000 Base-t
Cores per Port 8
Pin Number 24 Pin
Mounting Type SMT
Temperature 0℃ TO 70℃
AutoMDIX YES
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C,S
Package Tape & Reel

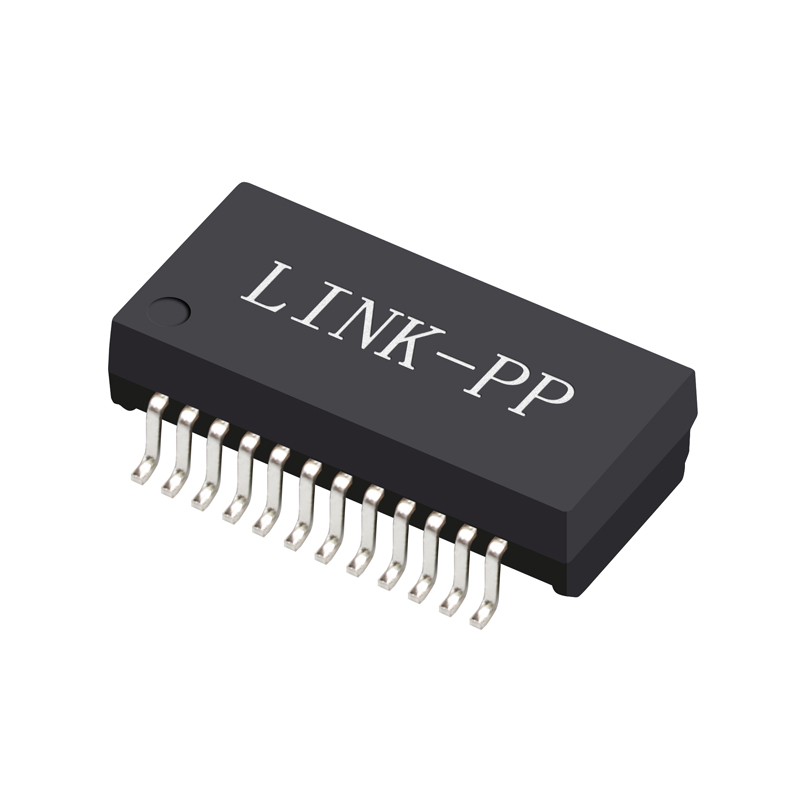

Product View 1
Product View 2
Product View 3
Product View 4
Product View 5
Detailed Dimensions
Electrical Performance Diagram
Why Choose Us
Quality Standard
Production Process
Advanced Equipment
Testing Support
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL, owning advanced manufacturing facilities and test equipments imported from abroad. With the abundant productive capacity of 3000K per month, we are able to delivery the goods within the short time. Moreover, we can provide the professional complete solution for magnetic components and strong technical support as well.

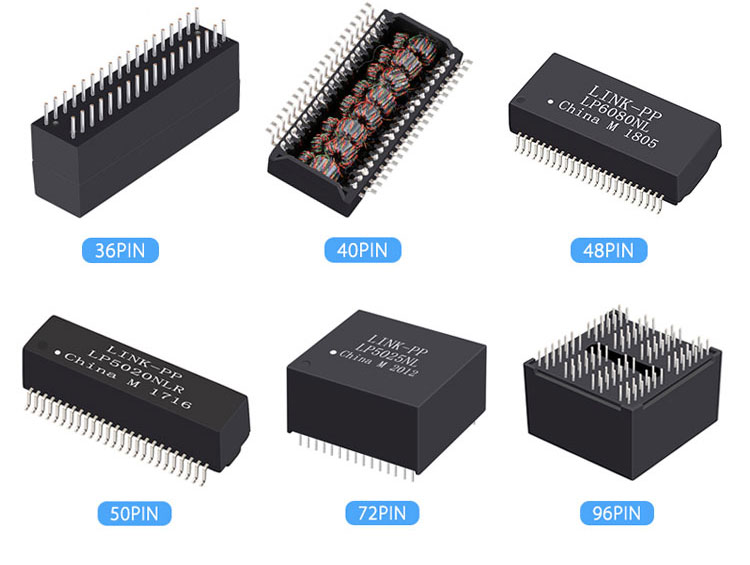

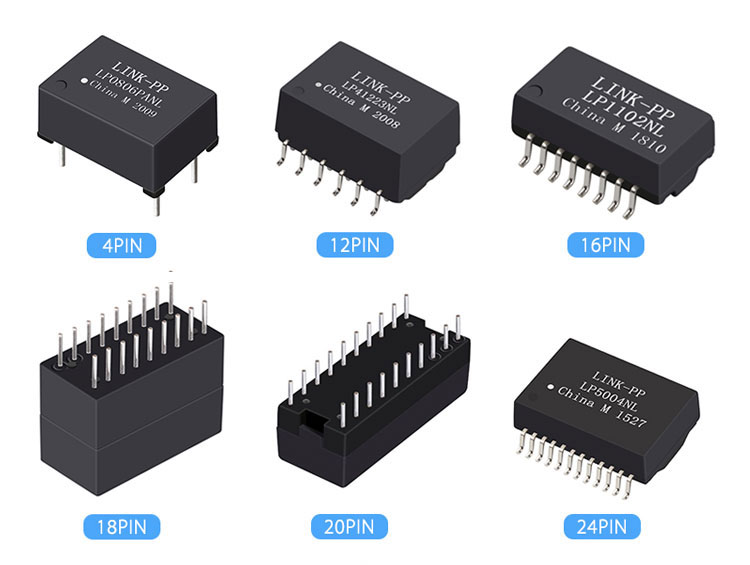

Main Products: 10/100/1000M LAN pulse transformer and filter, RJ45 connector with 10/100/1000M magnetic, T1/E1, T3/DS3/E3/STS-1 interface line transformer, ISDN, HDSL, ADSL and VDSL interface line transformer and splitter. Our products are widely used in networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem.

Our products have been exported to more than 30 countries and regions in the world, including Germany, France, England, USA, Singapore, Korea, Canada, and Japan. Our engineering staff is dedicated to identifying, developing and manufacturing the optimal solution for our customers' unique requirements. We trust that our strength in the field and our faith of pursuing higher will convince you to be our long-term partner.
Production Line 1
Production Line 2
Testing Facility 1
Testing Facility 2
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but the shipping fee should be covered by your side.
What is your delivery time?
Ready to ship for stock items, and 15-30 days for mass production.
What after-service can you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send your inquiries to us so that we can have a detailed discussion on your specific requirements.
What is your advantage?
We have extensive production experience in the field and have established partnerships with leading global enterprises for many years.
