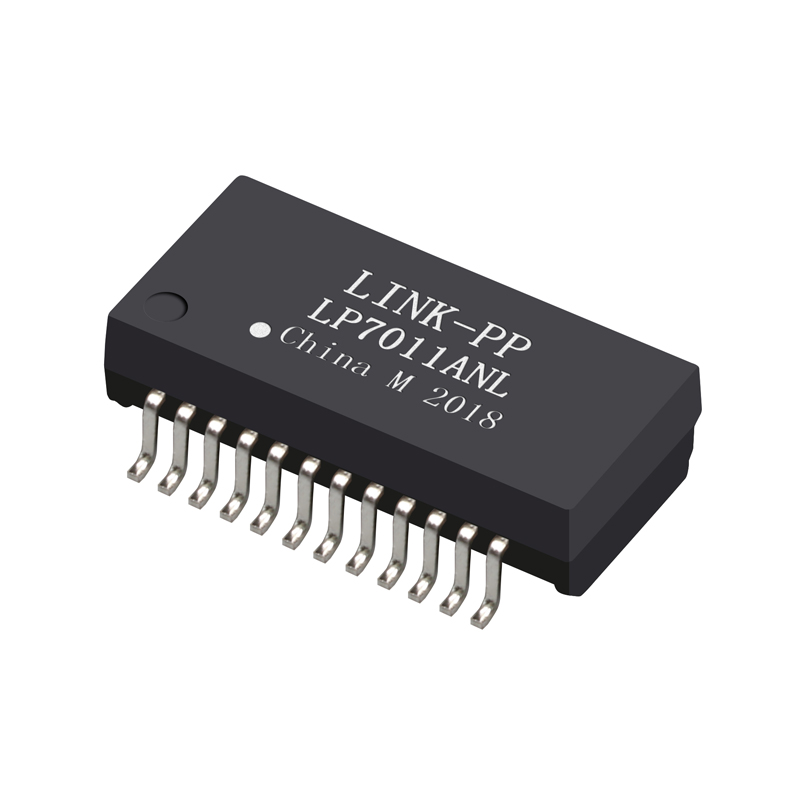

10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002

Product Description

Specification

Parameter Item	Value
Place of Origin	China
Part Number	LP7011ANL
Pulse Part Number	XF-GH-002
Transformer Type	Lan Transformer
Application-Lan	Ethernet(PoE)
Number of Ports	Single Port
Speed	10G Base-T
Package	Tape & Reel

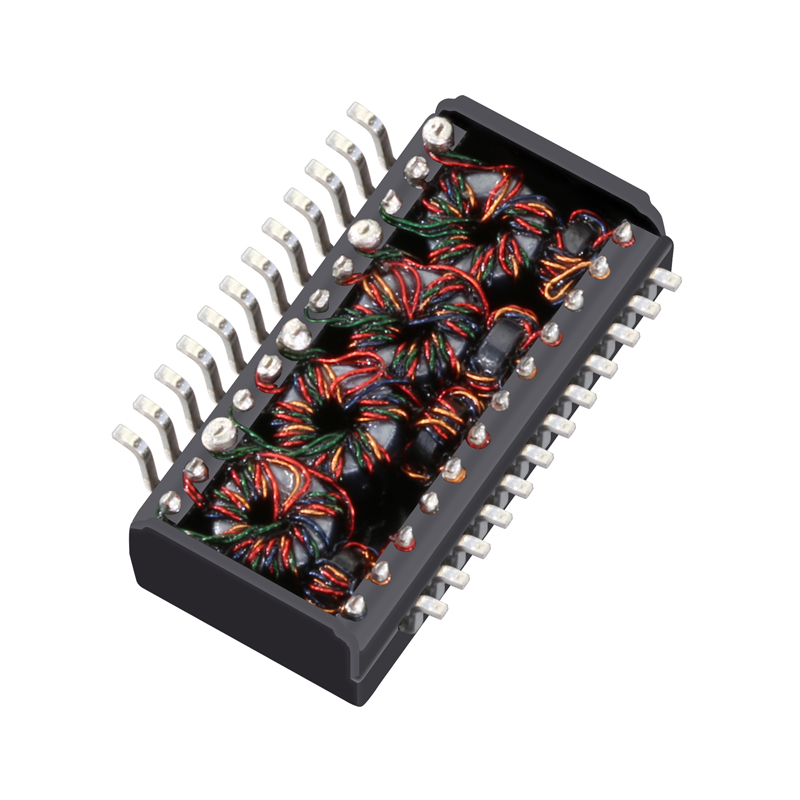

Cores per Port	8
PIN number	24
Mounting Type	Surface Mount
Temperature	-40°C TO +85°C
Turns Ratio RX/TX	1CT:1CT
Configuration RX/TX	T,C,S

Packing & Delivery

Packaging Specifications

N.W / pcs: 0.004kg

Package: Reel

SPQ: 400pcs

Qty / carton: 1600pcs

Carton size: 36*35.5*23cm

G.W / carton: 5.9kg

Company Profile

We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, RoHS, REACH, CE, and UL, owning advanced manufacturing facilities and testing equipment imported from abroad. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to deliver the goods within a short time. Moreover, we can provide professional complete solutions for magnetic components and strong technical support as well. Our products are widely used in networking and communication equipment such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, and xDSL modem.

Main Products

10/100/1000M LAN pulse transformer and filter
RJ45 connector with 10/100/1000M magnetic
T1/E1, T3/DS3/E3/STS-1 interface line transformer
ISDN, HDSL, ADSL and VDSL interface line transformer and splitter

We have exported our products to more than 30 countries and regions globally, including Germany, France, England, USA, Singapore, Korea, Canada, and Japan. Our engineering staff is dedicated to identifying, developing, and manufacturing the optimal solution for our customers' unique requirements. We trust that our strength in the field and our faith of pursuing higher will convince you to be our long-term partner.

Frequently Asked Questions

What is the speed rating of this LAN transformer?

This transformer supports speeds up to 10G Base-T, making it ideal for high-speed network communication links.

What is the operating temperature range?

The component operates reliably in a wide temperature range from -40°C to +85°C, suitable for industrial and harsh environments.

What applications is this transformer designed for?

It is designed for Ethernet (PoE) applications and is widely compatible with switches, routers, IP phones, HUBs, and network interface cards.

What certifications do your manufacturing facilities possess?

Our production lines are fully certified to international standards including ISO9001:2000, RoHS, REACH, CE, and UL.

How is the product packaged for shipment?

The units are supplied in Tape & Reel packaging. The Standard Package Quantity (SPQ) is 400 pcs per reel, and 1600 pcs are packaged in a carton measuring 36*35.5*23cm.
