Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
1 / 5
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT

Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT

Send Inquiry

Product Description

Product Description

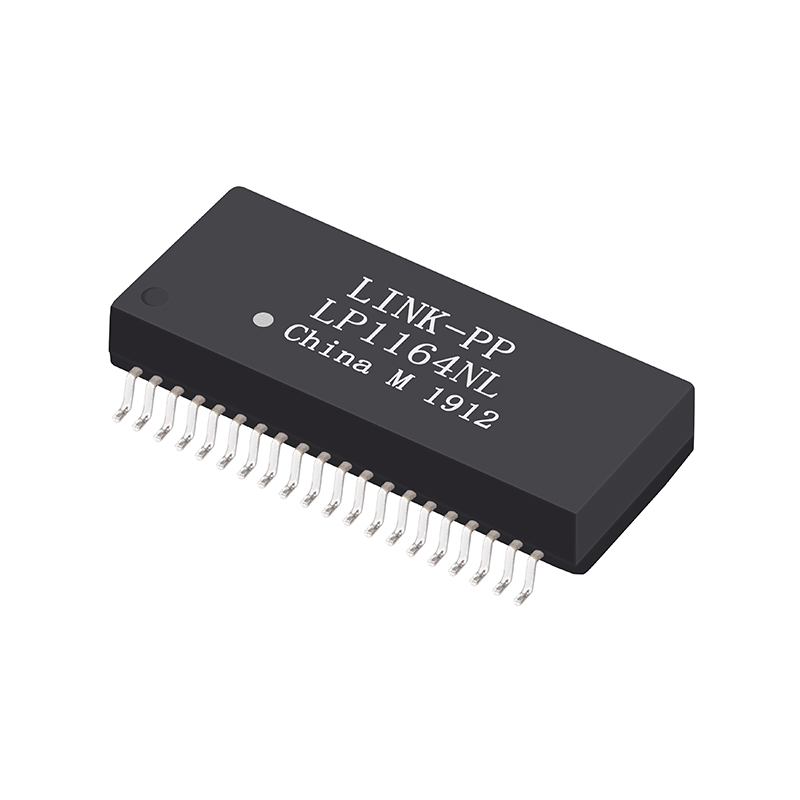

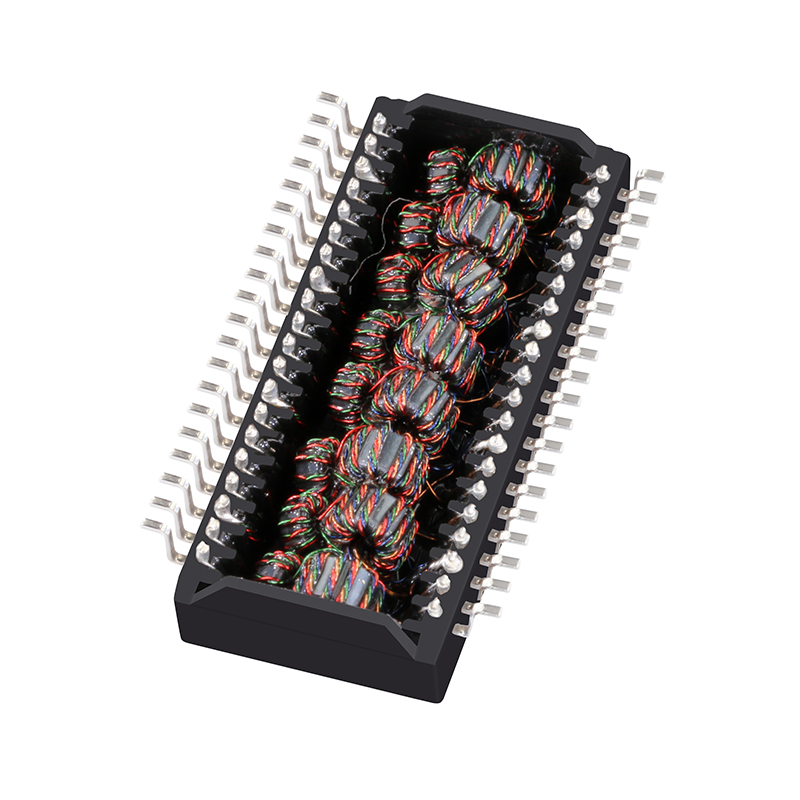

Product Image 1
Product Image 2
Specification
Specification Item Value
Place of Origin China
LINK-PP Part Number LP1164NL
Pulse Part Number H1164NLT
Transformer Type Lan Transformer
Application-Lan Ethernet (Non-PoE)
Number of Ports Quad Port
Speed 10/100 Base-T
Package Tape & Reel
Cores per Port 16
PIN number 40
Mounting Type Surface Mount
Temperature 0°C TO +70°C
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C, S
Packing & Delivery
Packing Image

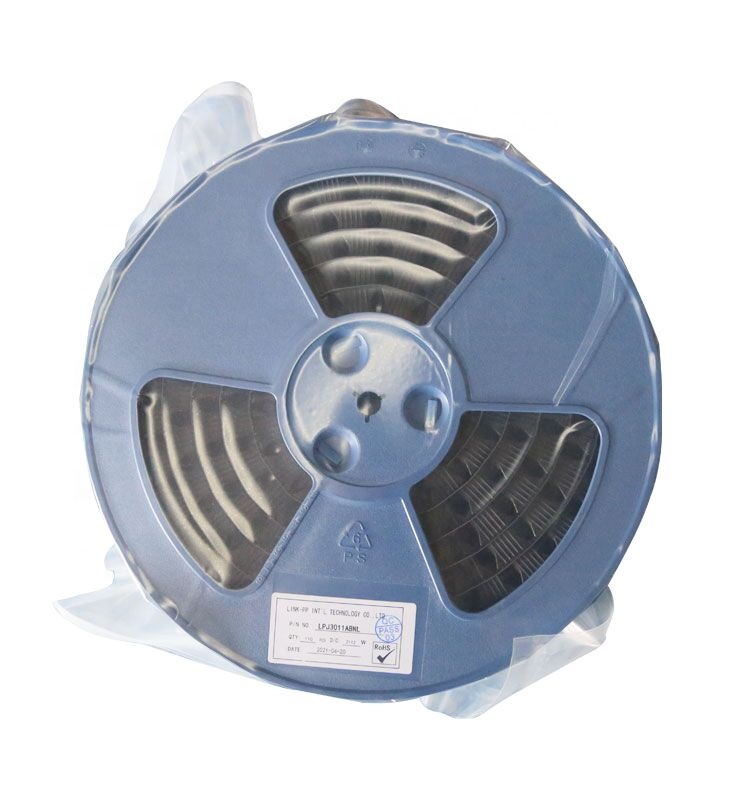

Package Details:
N.W/pcs: 0.005kg Package: Reel SPQ: 400pcs Qty/carton: 1600pcs Carton size: 36*35.5*23cm G.W/carton: 7.5kg
Product Overview & Applications
Specialized in high-performance magnetic telecom and networking components, manufactured under rigorous quality systems certificated by ISO9001:2000, ROSH, REACH, CE, and UL. These modules utilize advanced manufacturing facilities and imported testing equipment to guarantee maximum reliability and parameter consistency.
These products are widely integrated into telecom, networking, and communication applications including HUBS, PC Cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL Modems.
Main Product Lines:
  • 10/100/1000M LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M magnetic
  • T1/E1, T3/DS3/E3/STS-1 interface line transformer
  • ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Production Facility 1
Production Facility 2

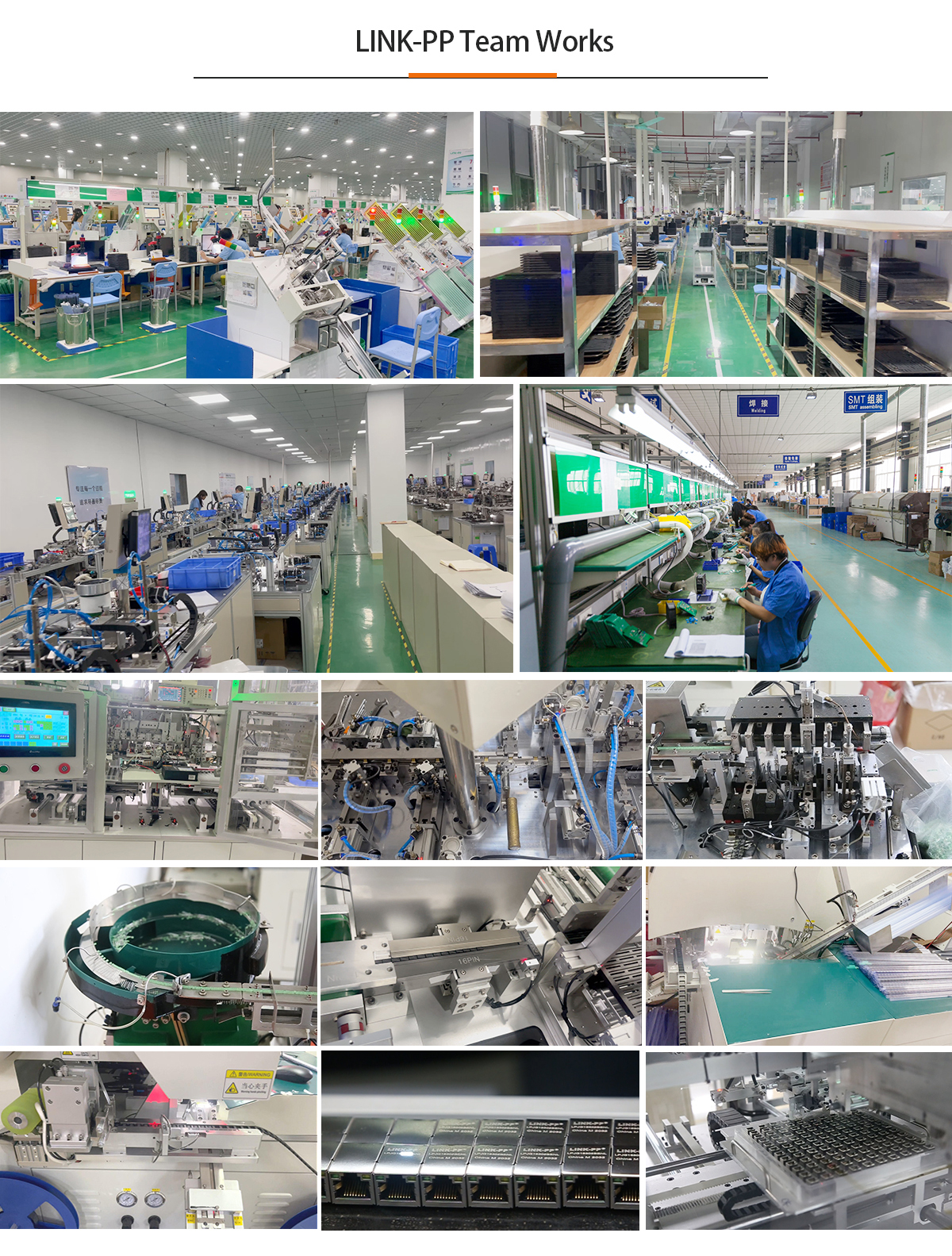

Production Facility 3
Production Facility 4
Production Facility 5

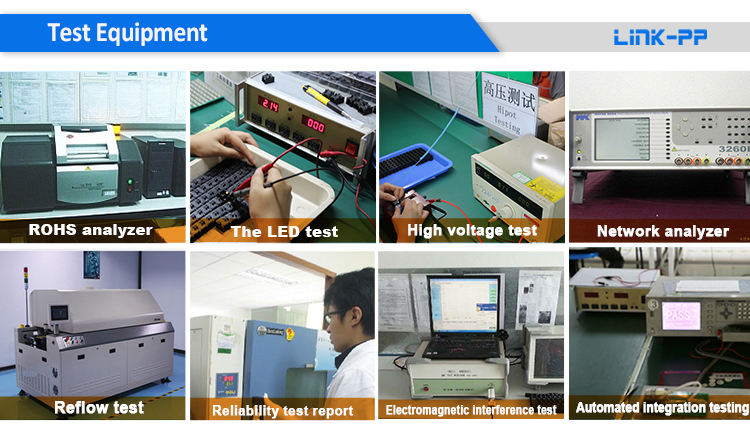

Testing Equipment 1
Testing Equipment 2
Frequently Asked Questions
What are the key application areas for the LP1164NL LAN transformer?
The LP1164NL is designed for 10/100 Base-T Ethernet (Non-PoE) environments. It is widely applied in communication and networking setups such as switches, routers, hubs, IP phones, PC cards, and mainboards.
Is the LP1164NL compatible with other standard industry parts?
Yes, the LP1164NL matches equivalent specifications and acts as a direct cross-reference / replacement for the Pulse part number H1164NLT.
What are the shipping packaging standards for this component?
The components are packaged in Tape & Reel format. Standard Package Quantity (SPQ) is 400 pieces per reel, with 1600 pieces per shipping carton. The gross weight per carton is approximately 7.5 kg.
What temperature range can this transformer operate under?
This surface-mount (SMD) device operates within a standard temperature range of 0°C to +70°C, suitable for typical commercial networking environments.
What are the configuration properties of the transformer?
It features a Quad Port configuration, 40 pins, 16 cores per port, a turns ratio of 1CT:1CT for RX/TX, and a configuration pattern of T, C, S (Transmitter, Center Tap, Receiver).
What certification standards does this product meet?
These LAN transformers are manufactured in facilities conforming to ISO9001:2000, ROSH, REACH, CE, and UL standard certifications to ensure compliance with global environmental and safety guidelines.
