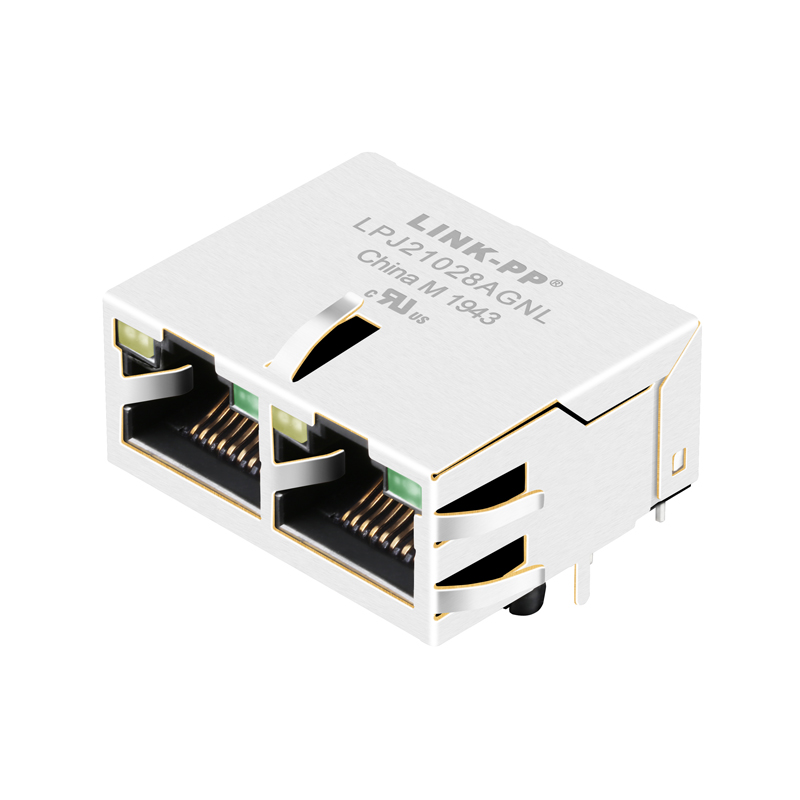

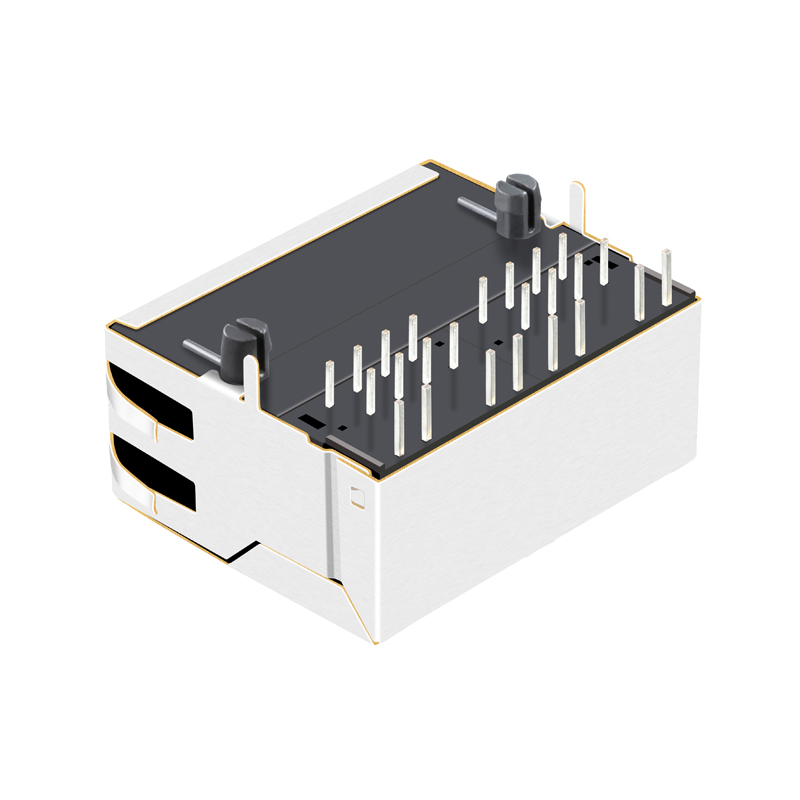

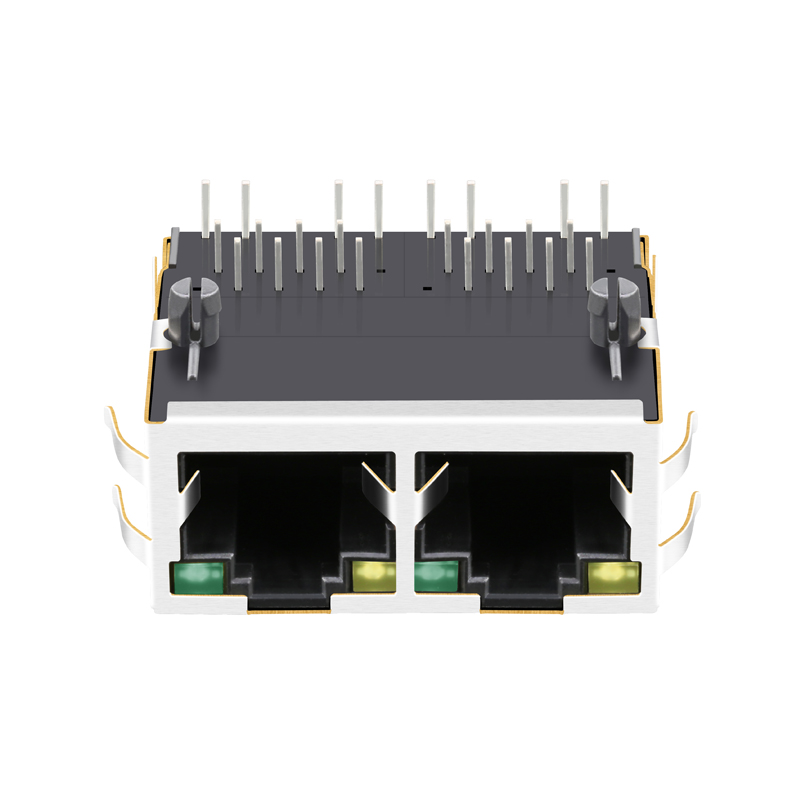

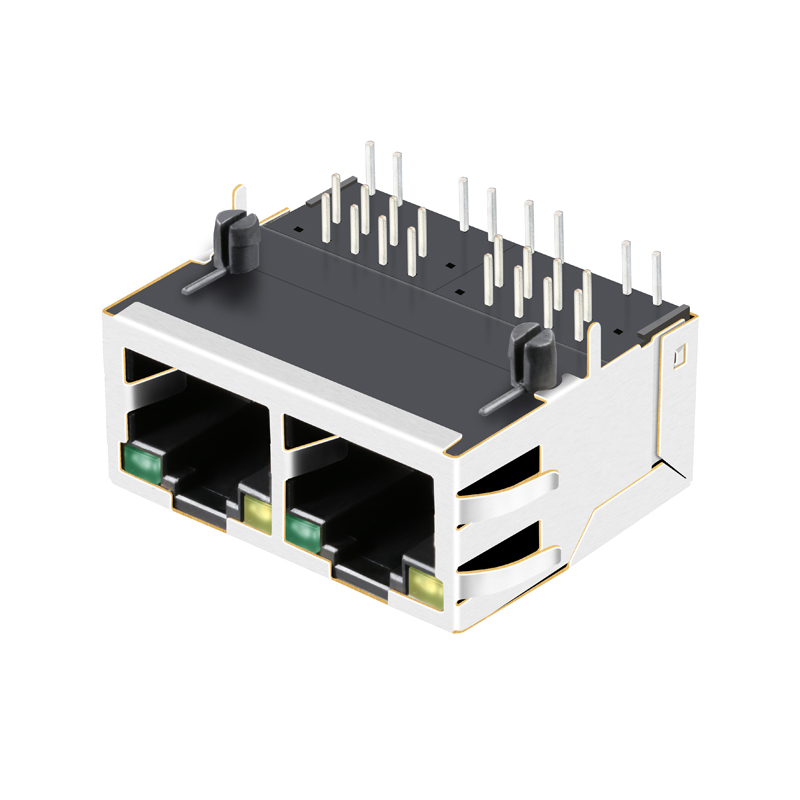

Standard 1x2 Port Ethernet RJ45 Modular Jack with Magnetics

Product Description

Product Overview
Standard 1x2 Port Ethernet RJ45 Modular Jack with Magnetics
📋 Products Description
ItemRJ45 Female Connector
Part NumberLPJ21028AGNL
Compatible WithRT2-14FB4K1A
Part StatusActive
Connector TypeJack
Number of Positions/Contacts8p8c (RJ45, Ethernet)
Application-LanEthernet (Non-PoE)
Number of Ports1x2 Port
Speed10/100/1000 Base-T
LatchDown/Up
Cores per Port4
Orientation90° Angle (Right)
PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithout/With
LED OptionGreen/Yellow
PCB MaterialFR4
PCB Retaining PostT POST
Temperature Range0℃ TO 70℃ / -40℃ TO 85℃
Bst CircuitYes
AutoMDIXYES
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT, C
Technical Drawing
Related Products
Internal Structure
Production View
Quality Control
Manufacturing
Testing Facility
Packaging
Shipping
🏢 Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.

As a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, we serve more than 10,000+ customers in over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming a world-leading provider of Ethernet RJ45 connectors and LAN transformers.
Workshop
Lab
Certificates
FAQ
1 Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
2 Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, though the shipping fee should be covered by the customer.
3 What is your delivery time?
Stock items are ready to ship immediately; mass production typically takes 15-30 days.
4 What after-service do you offer?
We provide a one-year guarantee period and offer 24-hour online technical support.
5 Can you accept OEM/ODM orders?
Yes, we welcome OEM/ODM inquiries. Please contact us for a detailed discussion.
6 What is your advantage?
We have over 19 years of professional production experience and maintain long-term partnerships with major global technology leaders.
