1000 BASE-T SMD Ethernet Transformer Modules HST-24054SXCR / HST-24056SCR

Product Description

1000 BASE-T SMD Ethernet Transformer Modules HST-24054SXCR / HST-24056SCR
1000 BASE-T SMD Ethernet Transformer Module Banner
Products Description
Item Lan Transformer
Replaceable Brand Model HST-24054SXCR / HST-24056SCR
Part Status Active
Construction Open Frame
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Speed 1000 Base-T
Mounting Type SMT
Temperature 0°C TO 70°C
AutoMDIX YES
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C, S
Package Tape & Reel

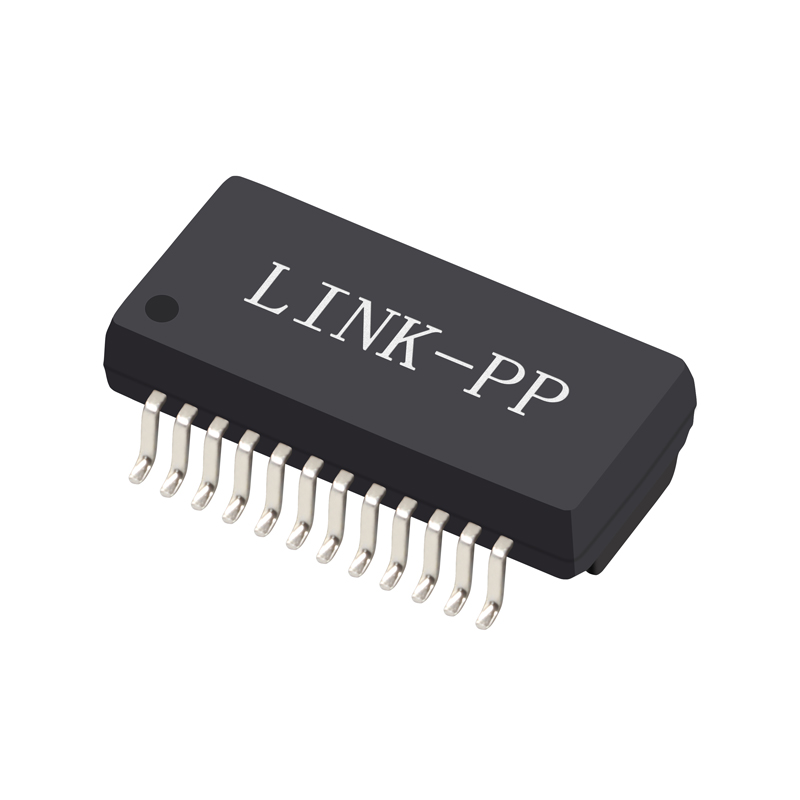

Ethernet Transformer Module Front View
Ethernet Transformer Module Side View
Ethernet Transformer Module Pin Configuration
Ethernet Transformer Module Packaging View
Ethernet Transformer Module Bottom View
Ethernet Transformer Module Dimensions Schematic
Ethernet Transformer Module Circuit Diagram
Why Choose Us
Quality Assurance Standard
Advanced Manufacturing Facilities
Global Delivery & Logistics
Strong Technical Support
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE and UL, owning advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to deliver the goods within a short time. Moreover, we can provide the professional complete solution for magnetic components and strong technical support as well.

Main Products: 10/100/1000M LAN pulse transformer and filter, RJ45 connector with 10/100/1000M magnetic, T1/E1, T3/DS3/E3/STS-1 interface line transformer, ISDN, HDSL, ADSL and VDSL interface line transformer and splitter. Our products are widely used in networking and communication equipment such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem. We have exported our products to more than 30 countries and regions in the world. Our engineering staff is dedicated to identifying, developing and manufacturing the optimal solution for our customers' unique requirements. We trust that our strength in the field and our faith of pursuing higher will convince you to be our long-term partner.
Production Workshop View 1
Production Workshop View 2
Quality Testing Equipment
R&D Engineering Center
FAQ
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors and SFP modules, etc.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but the shipping fee needs to be covered by the buyer.
3. What is your delivery time?
Ready to ship for stock items and 15-30 days for mass production orders.
4. What after-service can you offer?
We offer a one-year guarantee period and provide technical support online 24 hours.
5. Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion about your custom requirements.
6. What is your advantage?
We have 19 years of professional production experience in magnetic components and work as a trusted partner for global industry leaders.
