| Part Number | 1116173-4 |
| Alternative Part Number | LPJE101AHNL |
| Application-LAN | ETHERNET(NON POE) |
| AutomDX | YES |
| Package Height (Inches/mm) | 0.516/13.10 |
| Package Length (Inches/mm) | 0.620/15.75 |
| Package Width (Inches/mm) | 0.640/16.26 |
| Configuration TX/RX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores Per Port | - |
| Diodes | No |
| Latch | Up |
| LED Option | Green/Yellow LEDS |
| Number of Ports | 1X1 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | - |
| Temperature | -40 TO 85°C |
| Turns Ratio RX | 1CT:1 |
| Turns Ratio TX | 1CT:1 |
World’s Leading Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

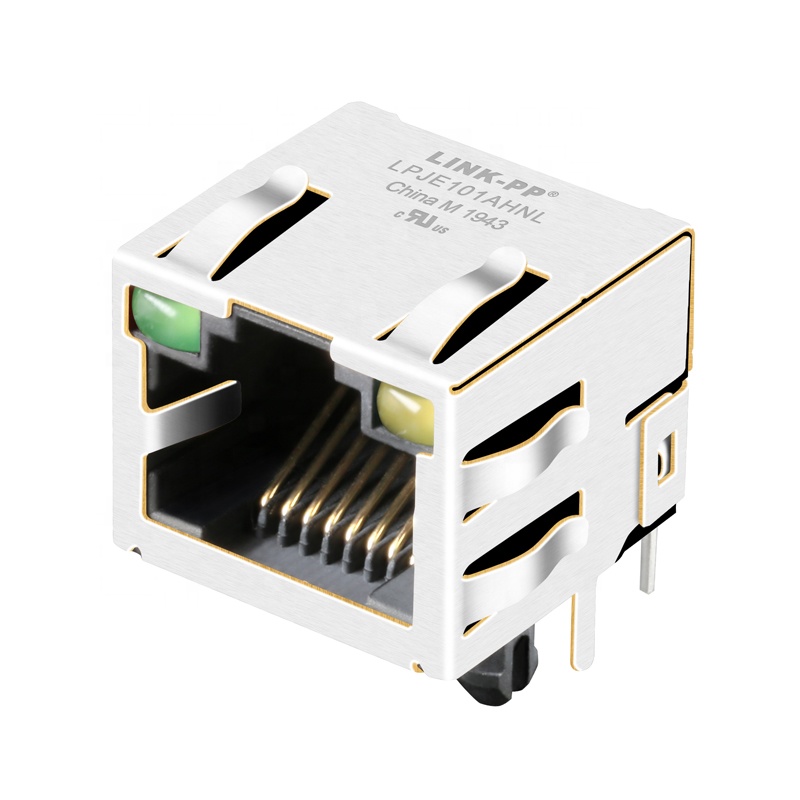

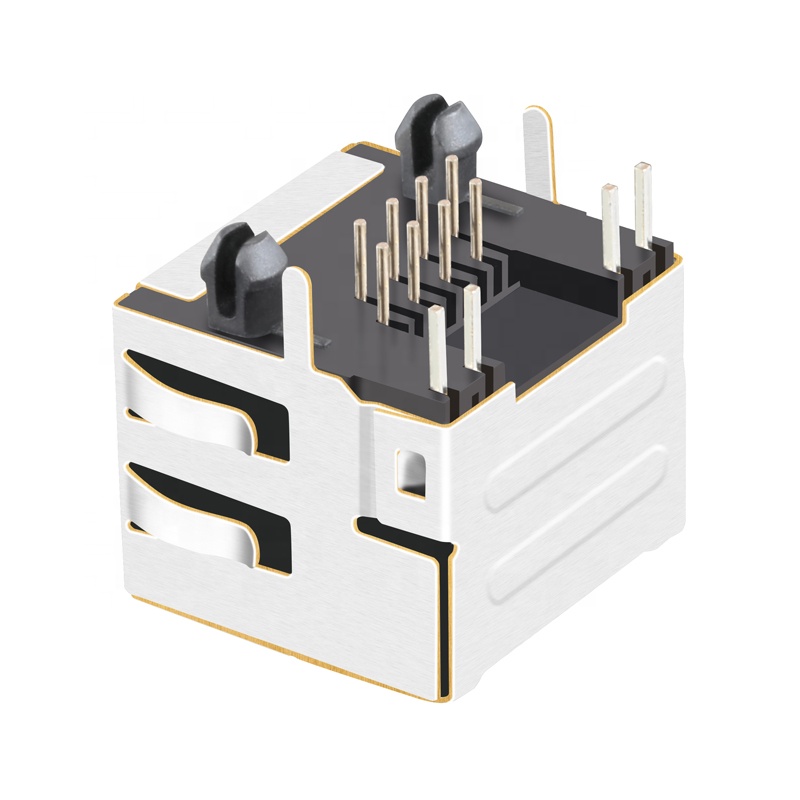

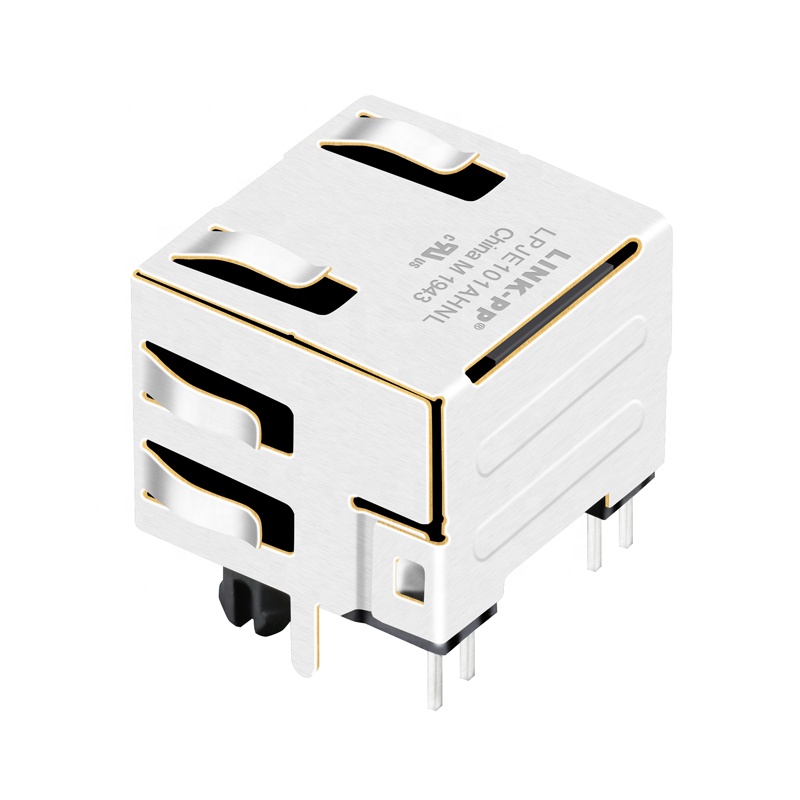

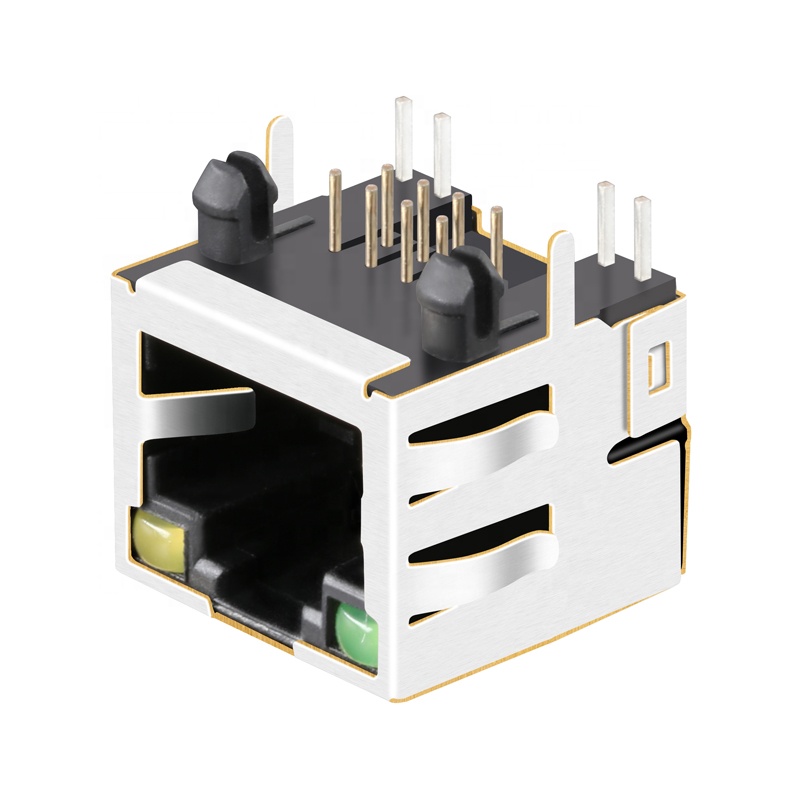

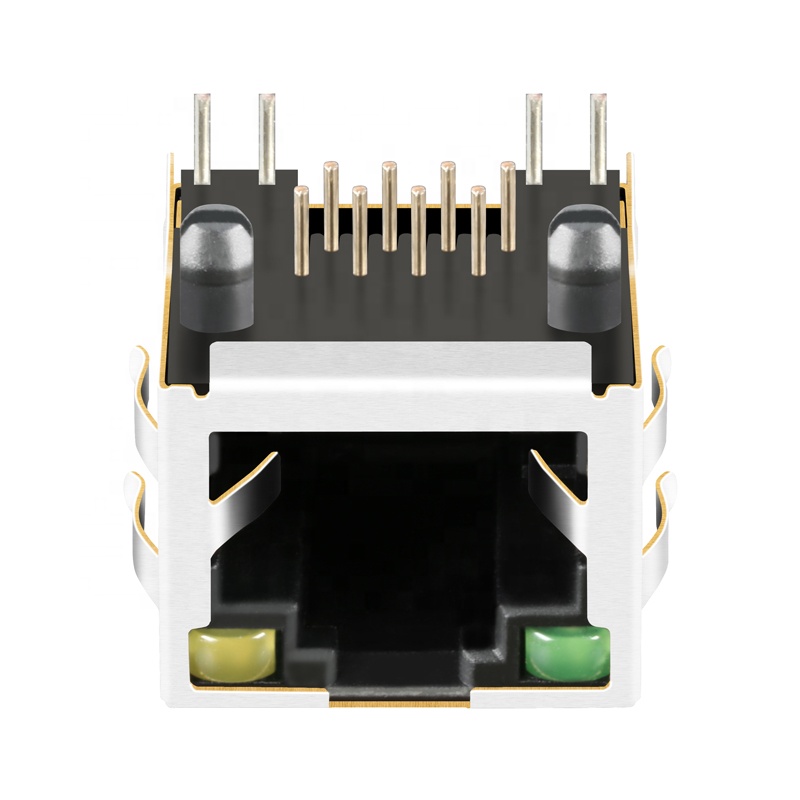

A1: This RJ45 modular jack is designed for Through-Hole (THT) networking applications, specifically supporting non-PoE Ethernet standard network devices.
A2: It includes built-in Green and Yellow LEDs (W/Y LED) to display connection status and activity directly on the connector port.
A3: Yes, it is RoHS compliant (RoHS-5 status with lead-in-solder exemption) and adheres to Reach certification requirements.
A4: The module supports a wide operating temperature range from -40°C to +85°C, making it suitable for standard industrial environments.
A5: It measures 0.516" (13.10 mm) high, 0.620" (15.75 mm) long, and 0.640" (16.26 mm) wide, designed for Side Entry PCB mounting with a T-post retaining mechanism.
A6: The contact area is designed with high-conductivity gold plating options, available in thicknesses of 6u", 15u", or 30u" depending on application requirements.
