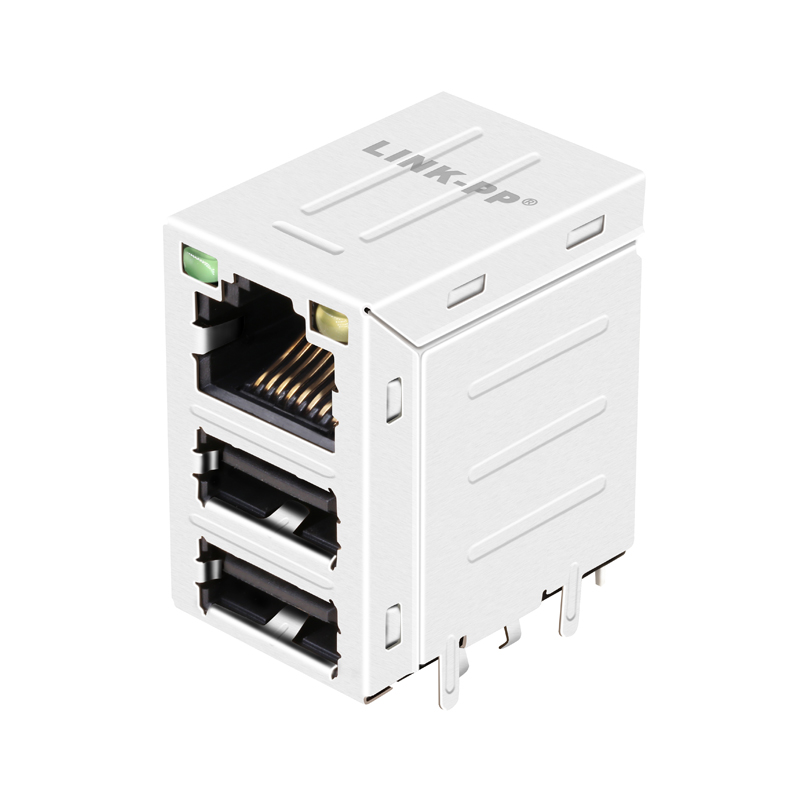

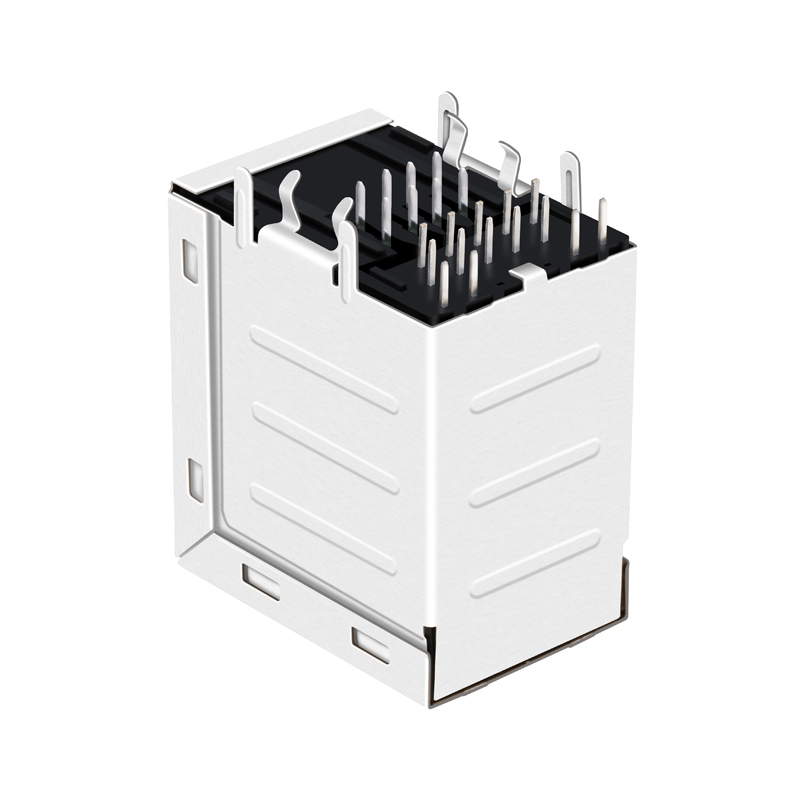

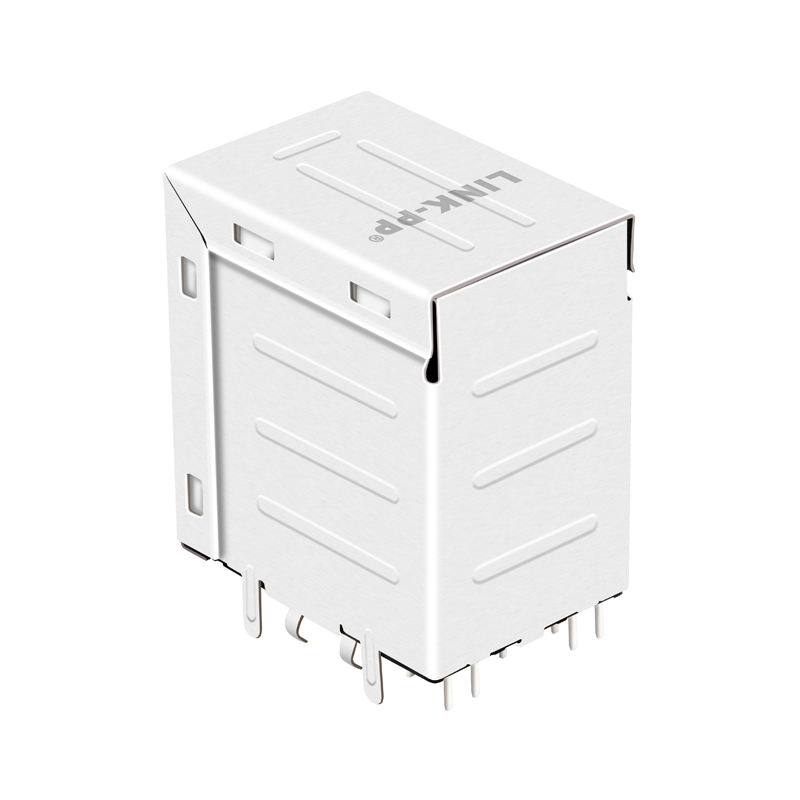

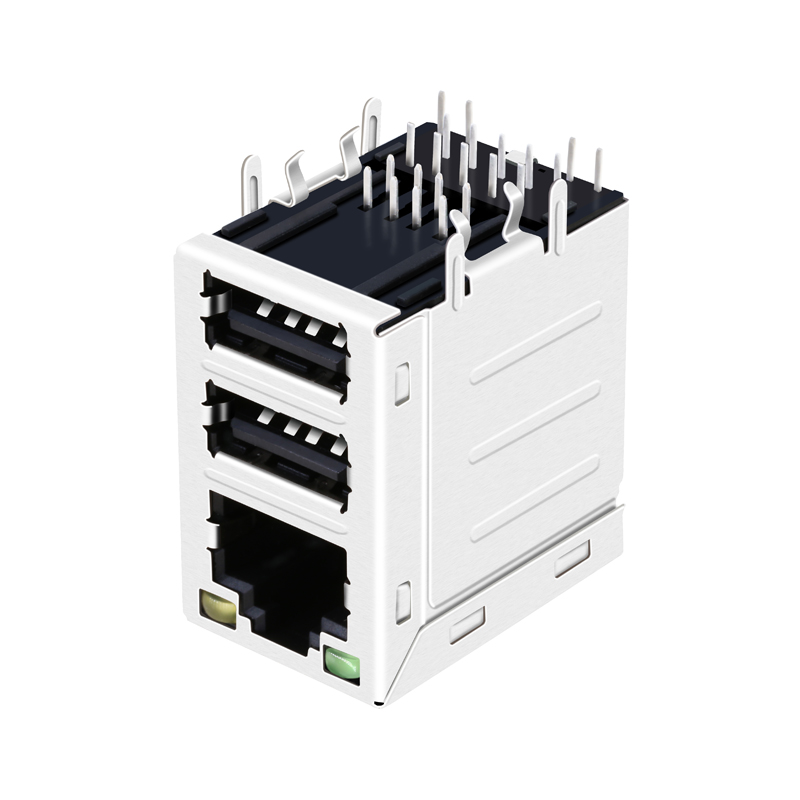

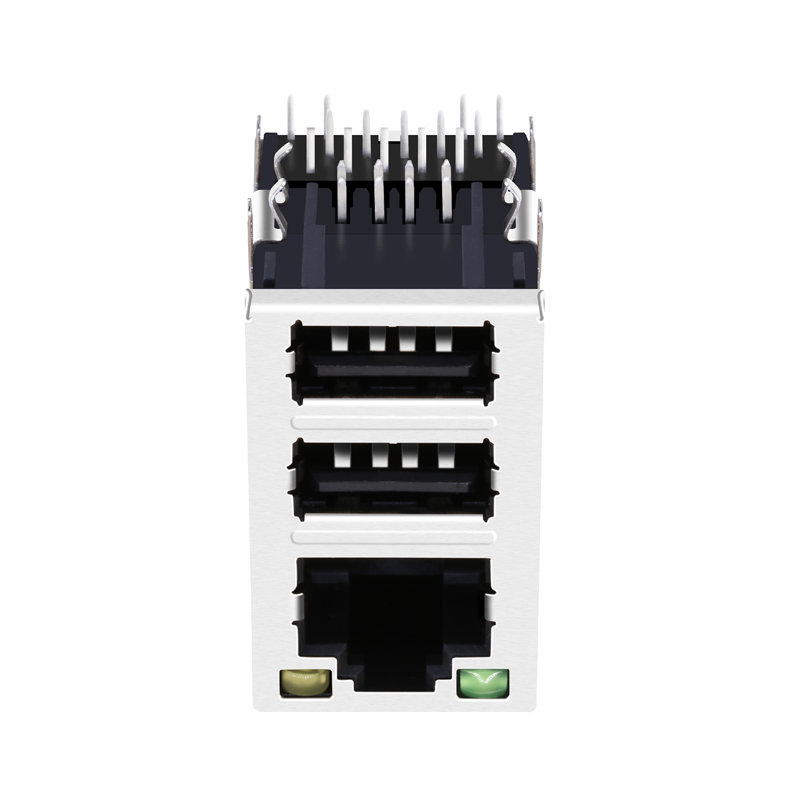

45F-10201DYD2NL 45F-10201DYDXNL Shielded Dual USB RJ-45 Female Connector With LEDs
45F-10201DYD2NL 45F-10201DYDXNL Shielded Dual USB RJ-45 Female Connector With LEDs
45F-10201DYD2NL 45F-10201DYDXNL Shielded Dual USB RJ-45 Female Connector With LEDs
45F-10201DYD2NL 45F-10201DYDXNL Shielded Dual USB RJ-45 Female Connector With LEDs
45F-10201DYD2NL 45F-10201DYDXNL Shielded Dual USB RJ-45 Female Connector With LEDs
1 / 5
45F-10201DYD2NL 45F-10201DYDXNL Shielded Dual USB RJ-45 Female Connector With LEDs
45F-10201DYD2NL 45F-10201DYDXNL Shielded Dual USB RJ-45 Female Connector With LEDs
45F-10201DYD2NL 45F-10201DYDXNL Shielded Dual USB RJ-45 Female Connector With LEDs
45F-10201DYD2NL 45F-10201DYDXNL Shielded Dual USB RJ-45 Female Connector With LEDs
45F-10201DYD2NL 45F-10201DYDXNL Shielded Dual USB RJ-45 Female Connector With LEDs

45F-10201DYD2NL 45F-10201DYDXNL Shielded Dual USB RJ-45 Female Connector With LEDs

Send Inquiry

Product Description

RJ-45 Female Connector
45F-10201DYD2NL 45F-10201DYDXNL Shielded Dual USB RJ-45 Female Connector with LEDs
Products Description
Item RJ45 Female Connector
Compatible With 45F-10201DYD2NL 45F-10201DYDXNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports Single Port With USB
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃/-40℃ TO 85℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
