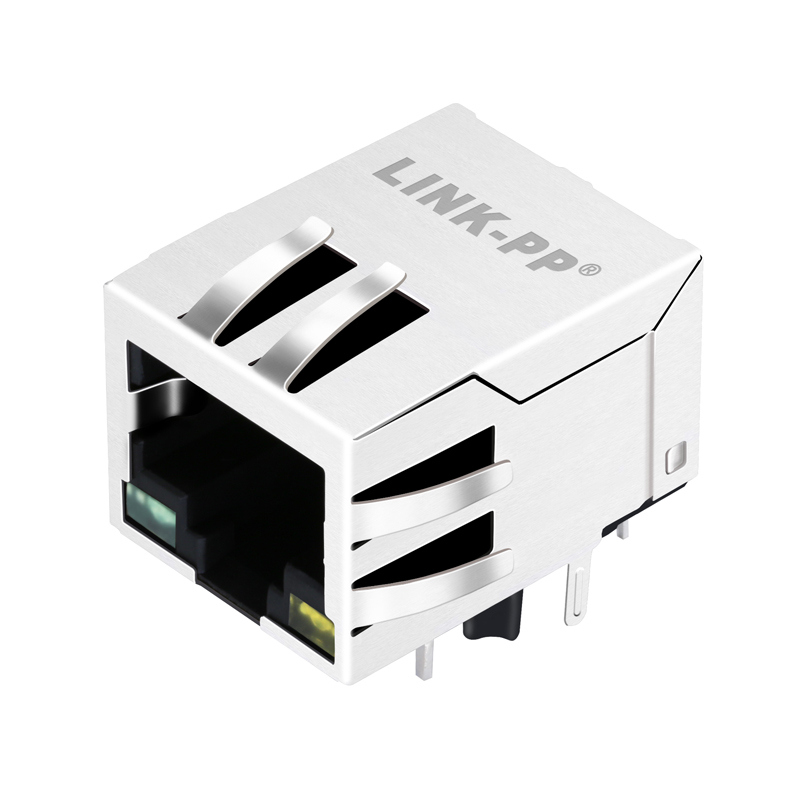

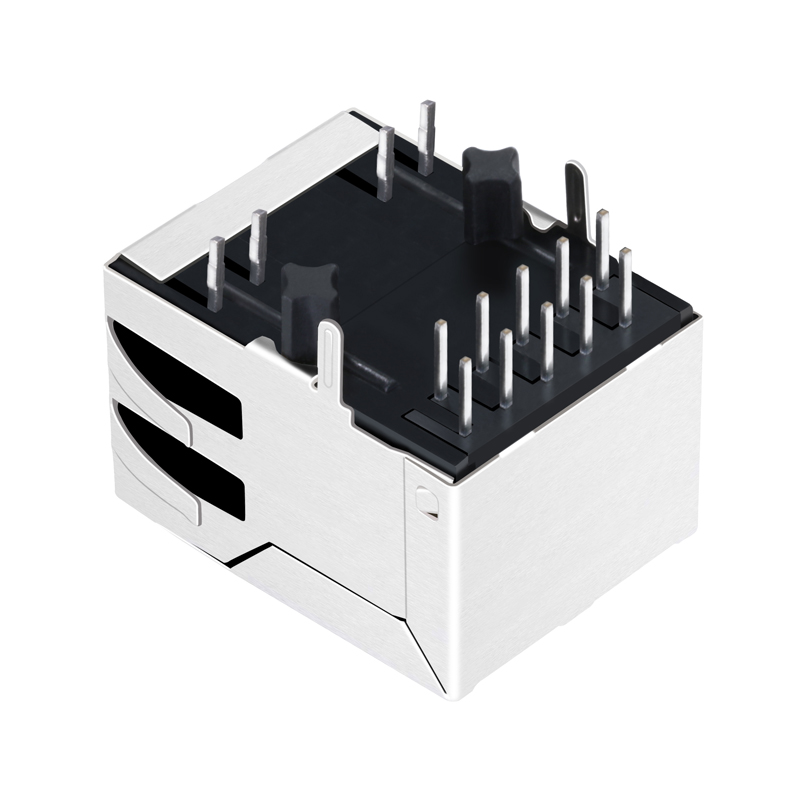

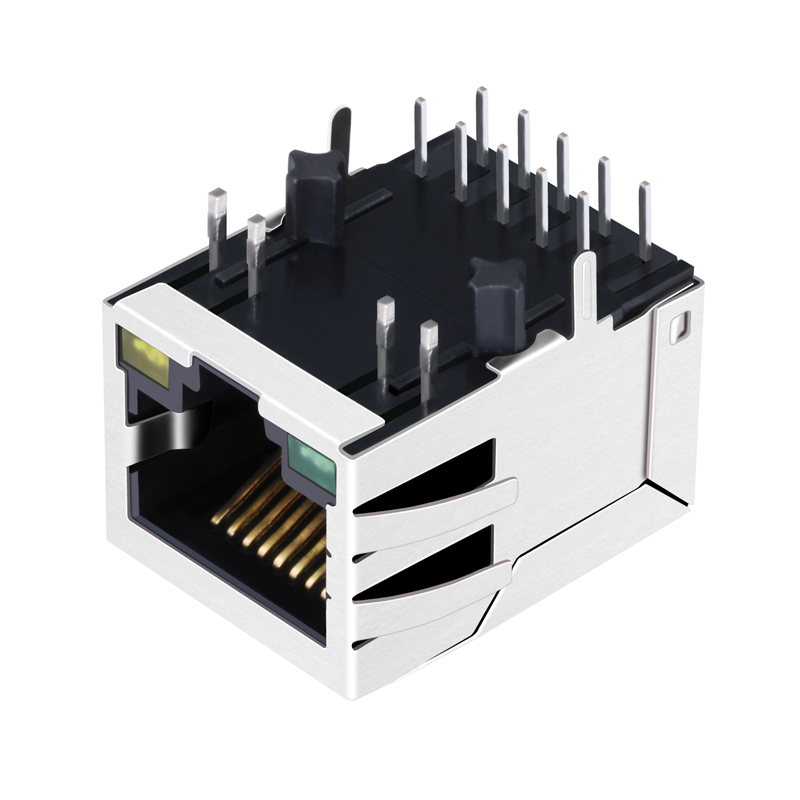

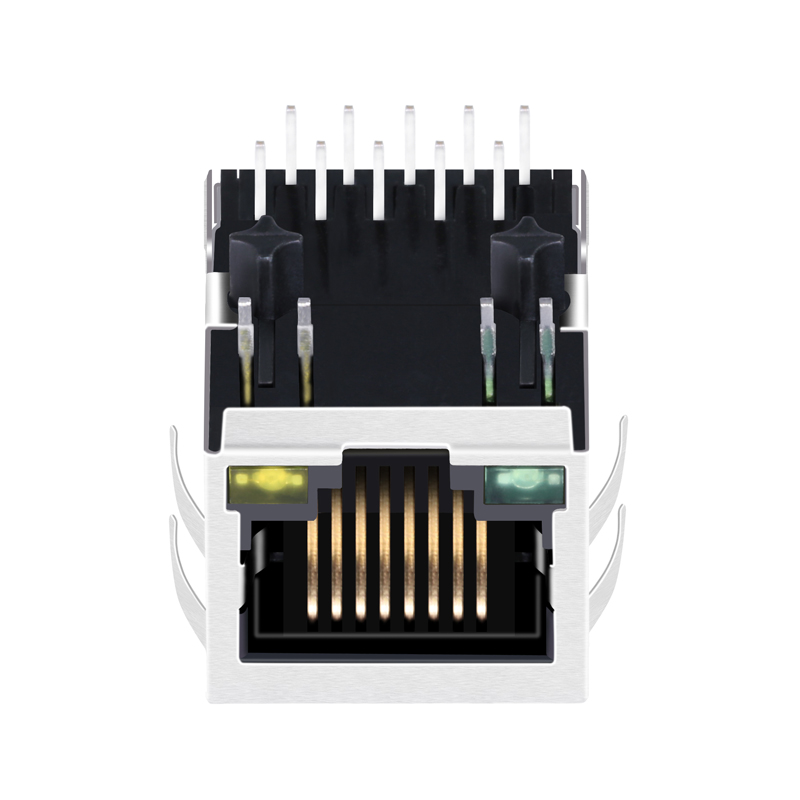

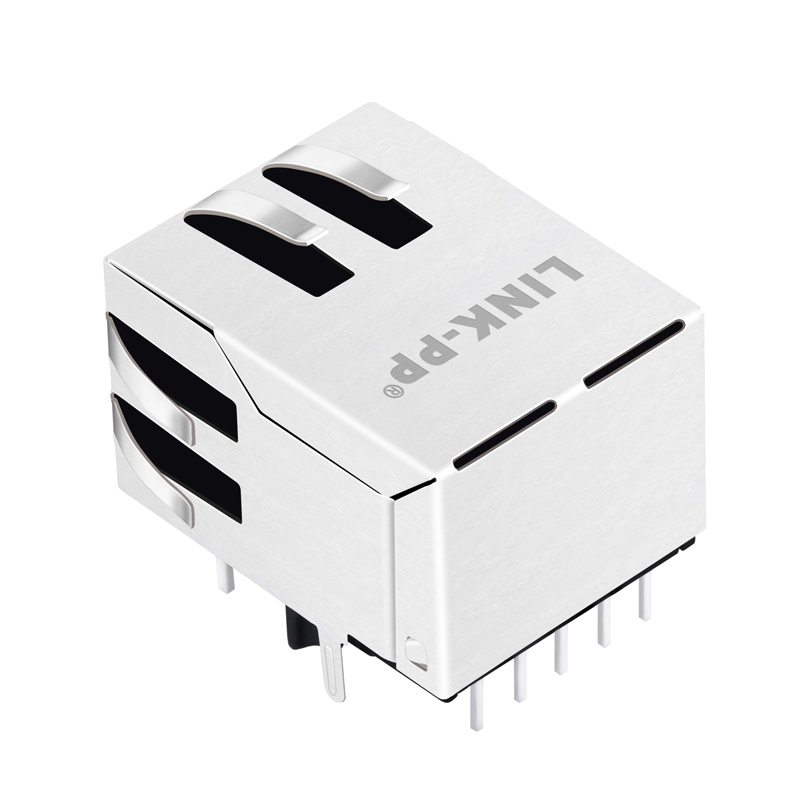

RJ 45 Connectors with POE RJ45 Ethernet Jack 1-6605833-1 SFE-PRT-08534 ARJ11E-MCSS
| Part Number |
ARJ11E-MCSS |
| AutomDX |
YES |
| Bst Circuit |
YES |
| Configuration RX |
T,C |
| Configuration TX |
T,C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u"/50u" |
| Cores Per Port |
4 |
| Diodes |
NO DIDES41 |
| LED Option |
GREEN/RED |
| Latch |
UP |
| Number of Ports |
1X1 |
| PCB |
FR4 |
| PCB Mount Angle |
SIDE ENTRY |
| PCB Retaining Post |
T POST |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search |
YES |
| Shield EMI Tabs |
WITH OR WITHOUT |
| Speed |
1000 BASE-T |
| Temperature |
0 TO 70°C/-40 TO 85°C |
| Turns Ratio RX |
1CT:1 |
| Turns Ratio TX |
1CT:1 |
Preferred Supplier Of TI Samsung Cisco Siemens ...
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
- ISO 9001:2008
- UL Certification
- Reach Certification
- RoHS Compliance
- Active Environmental Policy
- Manufactured Under Strict Controls.

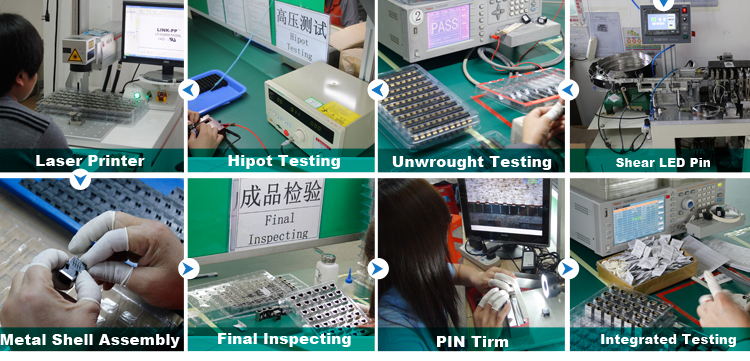

- 100% Tested (Not Just Batch Tested)
- OEM Of TE (Tyco) For 9 Years
- Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
- Preferred Supplier Of TI (Texas Instruments)
- Quality Guarantee: 6 Years
Competitive Price And Service
- More Competitive Price Than Pulse Tyco Halo Wurth And Amphenol
- Delivery Time: 2-3 Weeks After Orders
- Free Samples Are Available
- Provide New Design For Customer Requirements
- 90% Off Shipping Cost By DHL UPS DEDEX Or TNT
- The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction Through Continuous Improvements In Quality, Delivery And Service
- Committed To And Expects Quality Performance From Every Employee
- Standard Is Defect-Free Products And Services
RJ 45 Connectors with POE RJ45 Ethernet Cable 1-6605833-1 SFE-PRT-08534 ARJ11E-MCSS
Frequently Asked Questions (FAQ)
What is the transmission speed of this RJ45 connector?
This connector supports high-speed data transmission rates up to 1000 BASE-T, making it ideal for Gigabit Ethernet applications.
What are the available operating temperature ranges?
It supports standard operating temperatures from 0 to 70°C, and industrial-grade environments from -40 to 85°C.
Does this RJ45 connector include LED status indicators?
Yes, it features integrated Green and Red LED options to provide clear visual link status notifications directly on the jack.
What is the pin type and mounting layout for this product?
It uses a Through-Hole Technology (THT) solder pin configuration with a side-entry PCB mount angle.
What level of contact plating is offered?
The contact mating area is plated with gold, with options including 6u", 15u", 30u", or 50u" depending on application demands.
