Right Angle Low Profile RJ45 Inverted Modular Jack 1840453-1
Right Angle Low Profile RJ45 Inverted Modular Jack 1840453-1
Right Angle Low Profile RJ45 Inverted Modular Jack 1840453-1
Right Angle Low Profile RJ45 Inverted Modular Jack 1840453-1
Right Angle Low Profile RJ45 Inverted Modular Jack 1840453-1
1 / 5
Right Angle Low Profile RJ45 Inverted Modular Jack 1840453-1
Right Angle Low Profile RJ45 Inverted Modular Jack 1840453-1
Right Angle Low Profile RJ45 Inverted Modular Jack 1840453-1
Right Angle Low Profile RJ45 Inverted Modular Jack 1840453-1
Right Angle Low Profile RJ45 Inverted Modular Jack 1840453-1

Right Angle Low Profile RJ45 Inverted Modular Jack 1840453-1

Send Inquiry

Product Description

Modular Jack Overview
Right Angle Low Profile RJ45 Inverted Modular Jack 1840453-1
Products Description
Item RJ45 Female Connector
Bothhand Part Number 1840453-1
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C

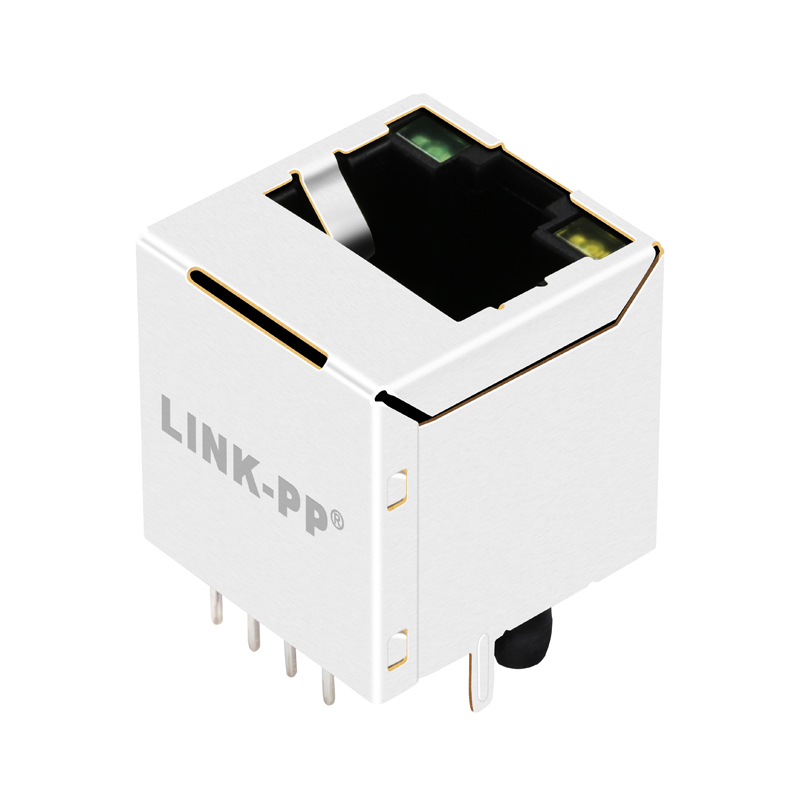

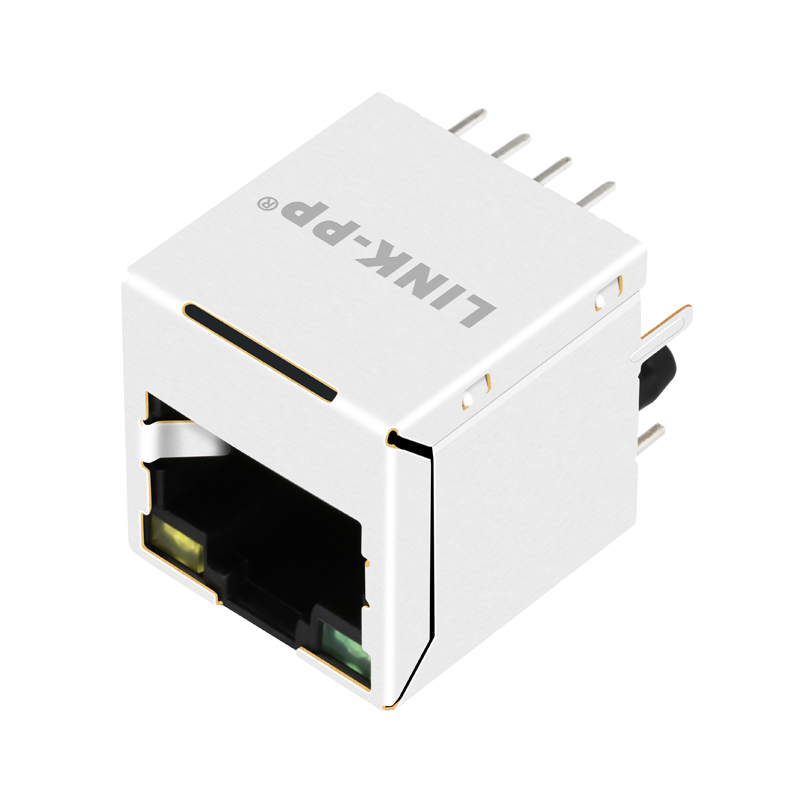

Modular Jack Drawing 1 Modular Jack Drawing 2

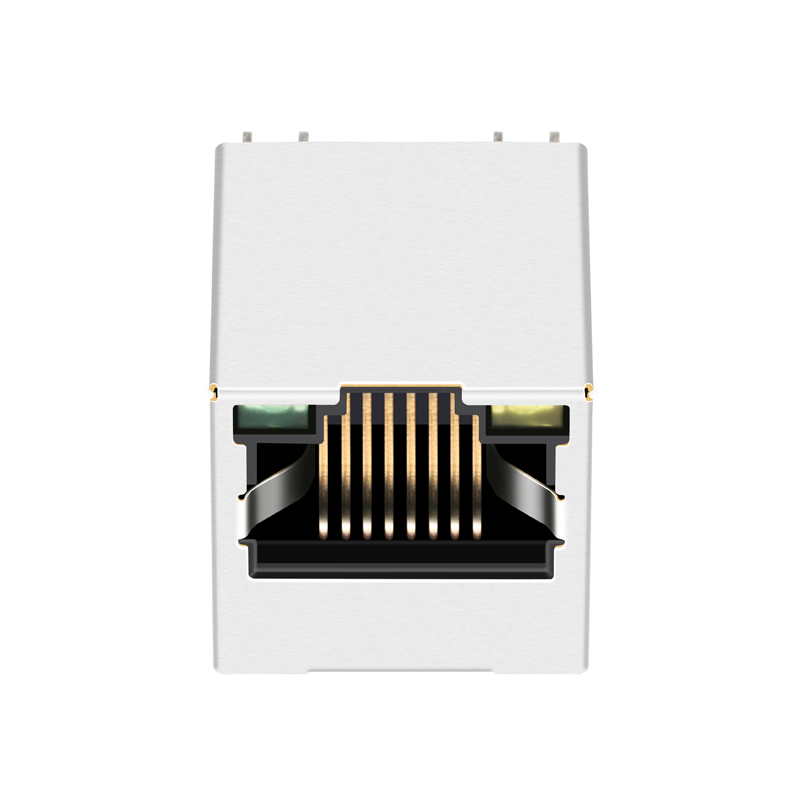

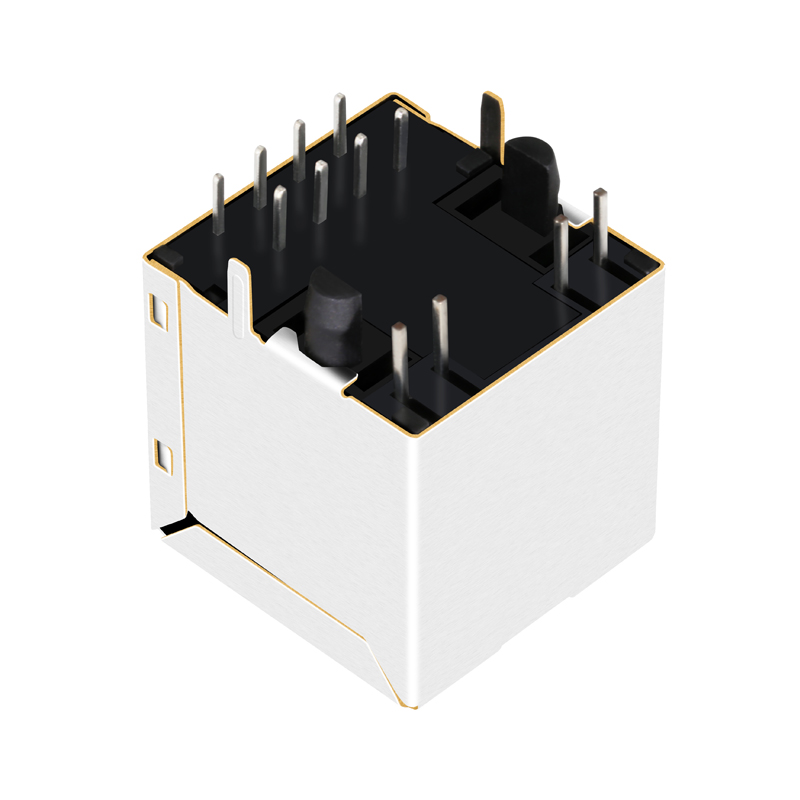

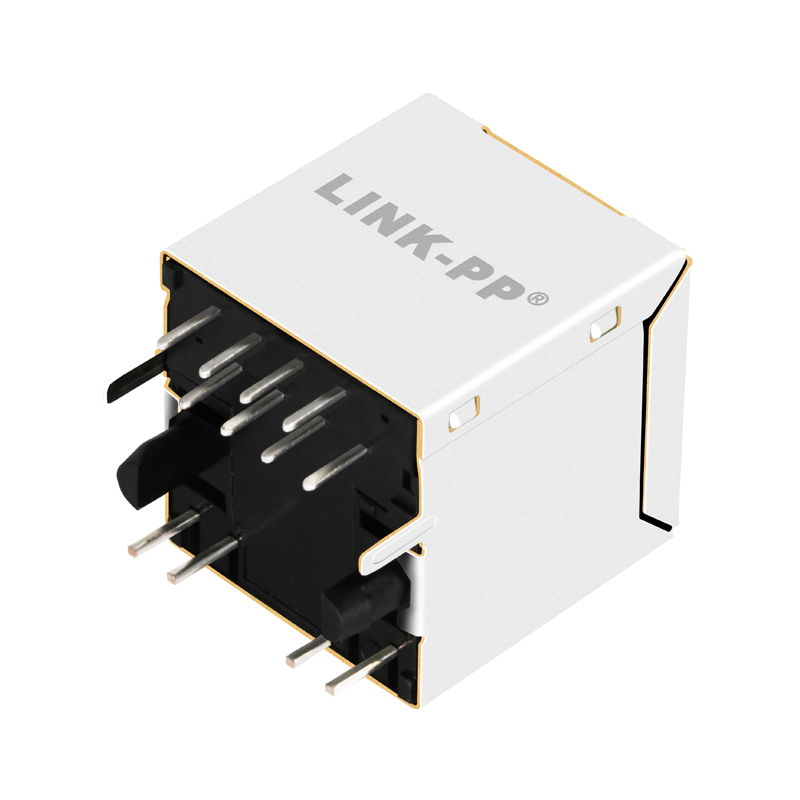

Product View 1 Product View 2 Product View 3 Product View 4
ℹ Click Below Products Link To Get More
Product Selection Guide
More Information
Showcase 1 Showcase 2 Showcase 3 Showcase 4 Showcase 5 Showcase 6
Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities. We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer manufacturer.
Factory Overview Production Line
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but shipping costs are covered by the customer.
What is your delivery time?
Stock items are ready to ship, and mass production orders typically take 15-30 days.
What after-sales service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so we can proceed with a detailed discussion regarding your custom requirements.
What is your advantage?
We possess over 19 years of production experience and have been a trusted partner for industry leaders for many years.
