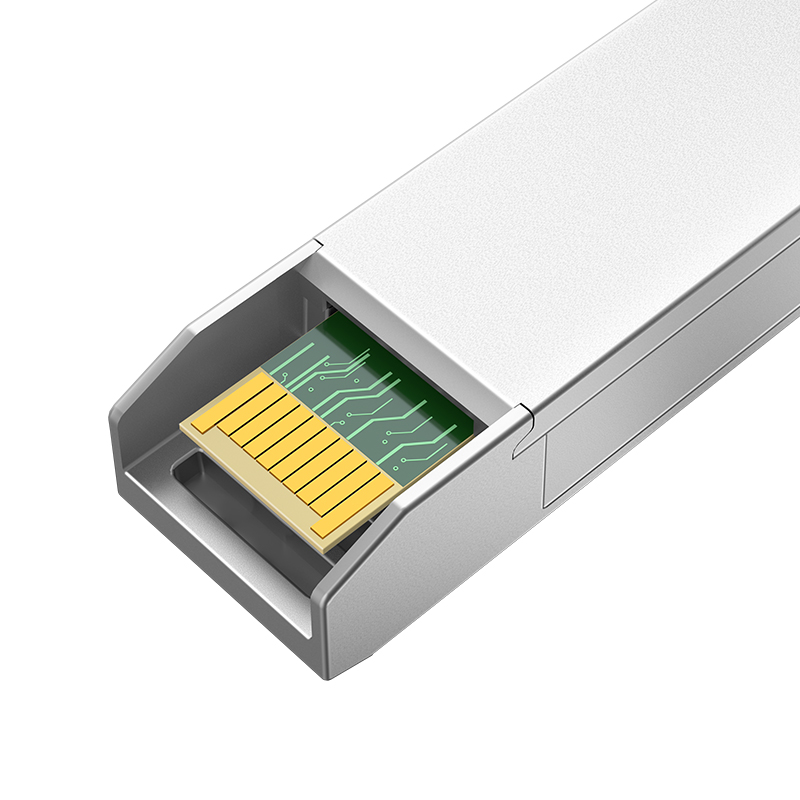

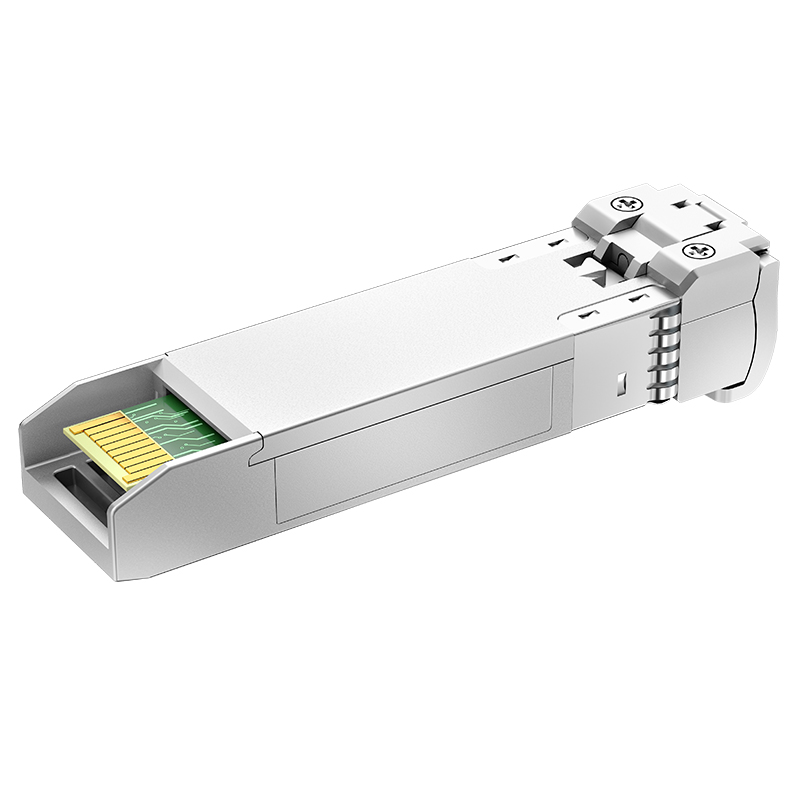

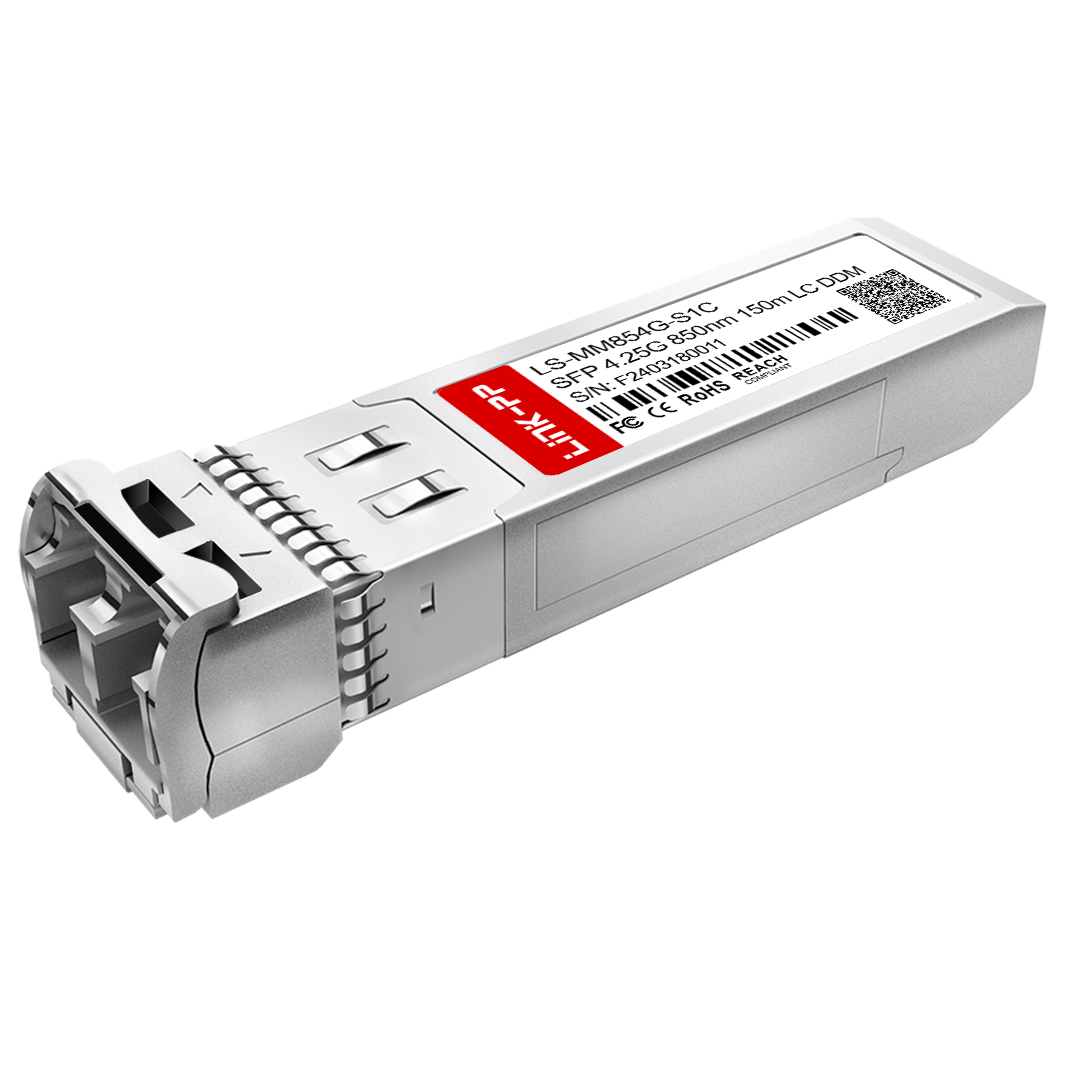

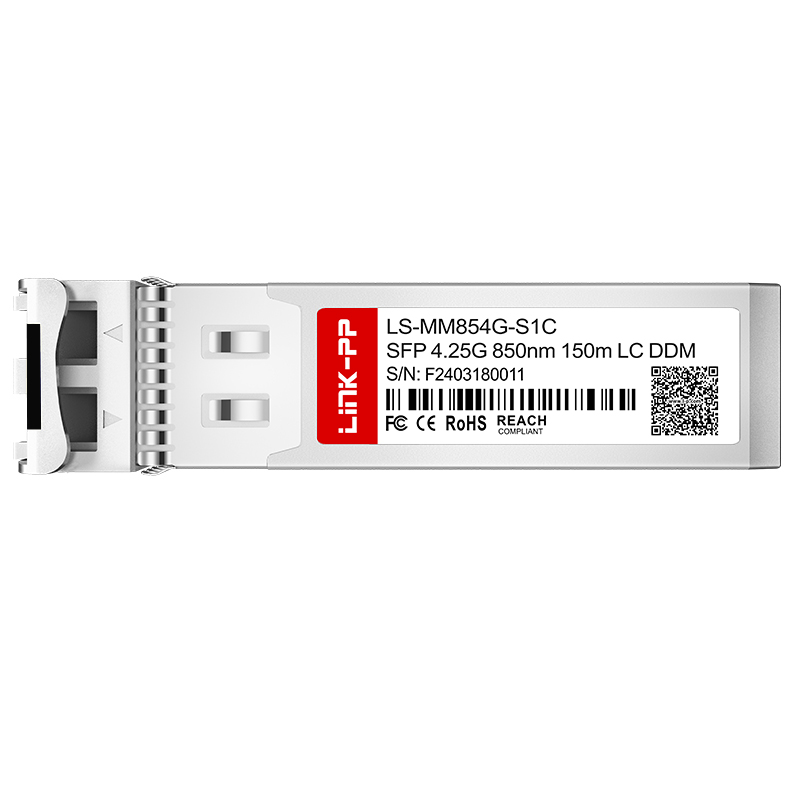

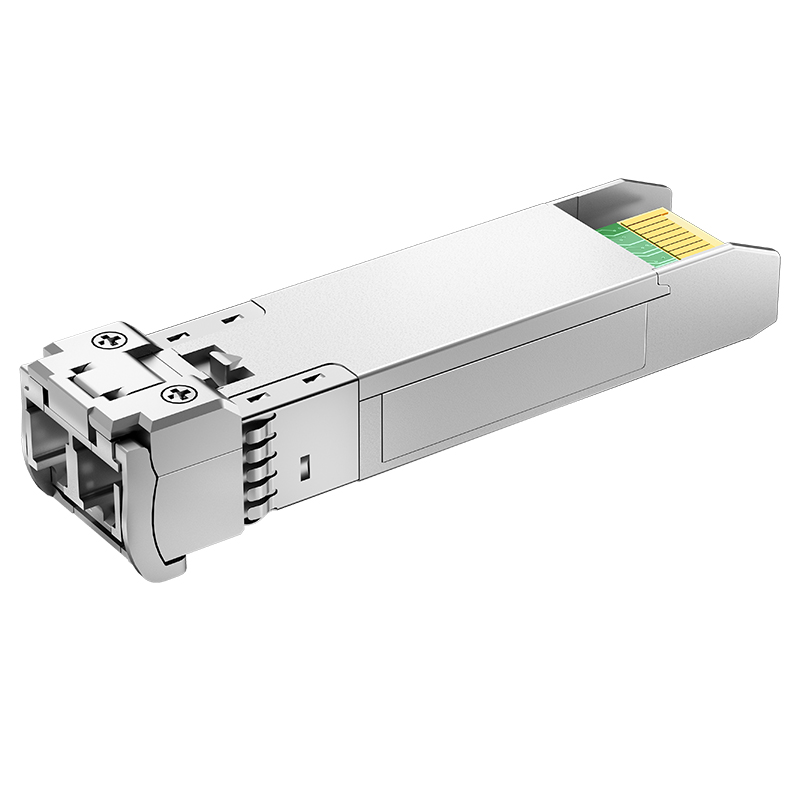

Multi Mode SFP 4G Fibre Channel 850nm 150m MMF LC Optical Transceiver Module

Product Description

Multi Mode SFP 4G Fibre Channel 850nm 150m MMF LC Optical Transceiver Module

Product Specifications
Part No. LS-MM854G-S1C
Form Factor SFP
Max Data Rate 4.25Gbps
Wavelength 850nm
Max Cable Distance 150m
Connector Duplex LC
Media MMF
Transmitter Type VCSEL
Receiver Type PIN
TX Power -9 ~ 0dBm
Receiver Sensitivity < -20dBm
EMC (Electro Magnetic Compatibility) Supported
DDM/DOM Supported
Protocols MSA Compliant
Temperature Range 0 to 70°C / -40 to 85°C
Warranty 5 Years
Sample Available
View Our Solutions
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Optical Transceiver Solutions
Support Full Range Of 4.25G SFP
Part Number Data Rate Wavelength Distance Media DDM
LS-MM854G-S1C 4.25Gbps 850nm 150m Multi-mode Yes
LS-MM852G-S3C 4.25Gbps 850nm 300m Multi-mode Yes
LS-MM854G-S5C 4.25Gbps 850nm 500m Multi-mode Yes
LS-SM314G-02C 4.25Gbps 1310nm 2km Single Mode Yes
LS-SM314G-04C 4.25Gbps 1310nm 4km Single Mode Yes
LS-SM314G-10C 4.25Gbps 1310nm 10km Single Mode Yes
LS-SM314G-40C 4.25Gbps 1310nm 40km Single Mode Yes
LS-SM554G-40C 4.25Gbps 1550nm 40km Single Mode Yes
SFP Transceivers Range
SFP Modules Category
Application Scenarios
Optical Transport Networks

Optical Transport Networks

We can provide end-to-end DWDM devices with almost all optical devices - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR etc.
Cloud and Enterprise

Cloud and Enterprise

To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Wireless Networks

Wireless

We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
FTTx Solutions

FTTx

Aiming at global communication network constructors, we provide FTTx optical fiber access total solutions covering all-optical or optical copper combined access solutions and products.
Subsystems

Subsystems

To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
★ Related Products: SFP Cage ★
SFP Cage Products
Why Choose Us
Advantage 1
Advantage 2
Advantage 3
Advantage 4
Manufacturing Capabilities
We are a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, RoHS, REACH, CE and UL, with advanced manufacturing equipment and testing equipment. With abundant production capacity, we are able to deliver products within a short time. In addition, we provide a complete series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also includes high-speed optical interconnect solutions for cloud computing and ultra-broadband networks. Using the latest optoelectronic technologies, we design, manufacture, and sell products worldwide.
Manufacturing Facility 1
Manufacturing Facility 2

Frequently Asked Questions

Q1 Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Q2 Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but the shipping fee needs to be covered by the customer.
Q3 What is your delivery time?
Products in stock are ready to ship. For mass production orders, the standard lead time is 15-30 days.
Q4 What after-sales service can you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Q5 Can you accept OEM/ODM orders?
Yes, we welcome OEM and ODM orders. Please send your inquiries to us so we can discuss the details.
Q6 What is your production advantage?
We have nearly two decades of production experience and have partnered with leading global network companies for many years.
