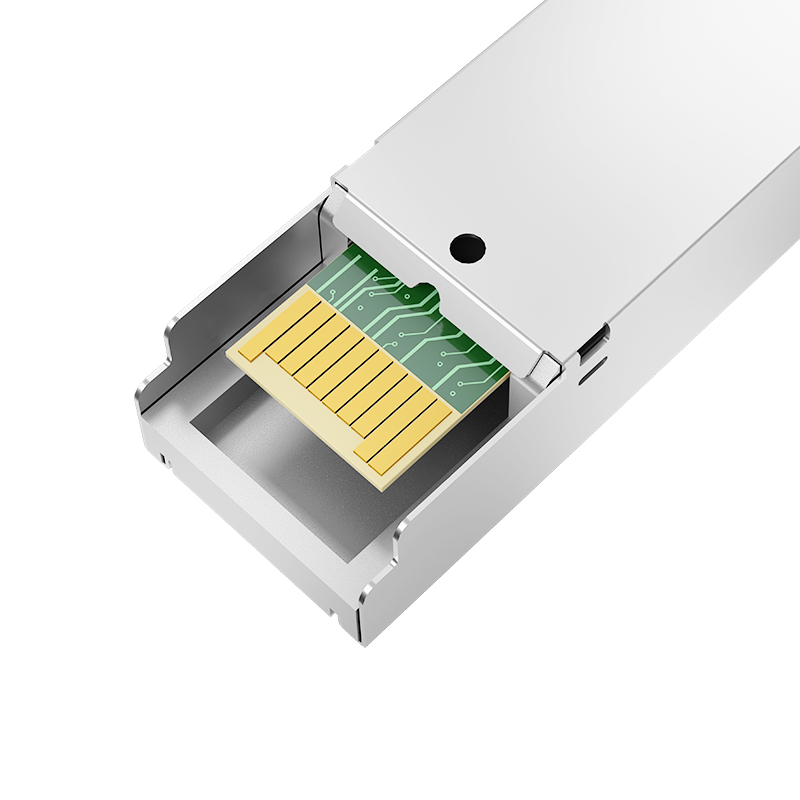

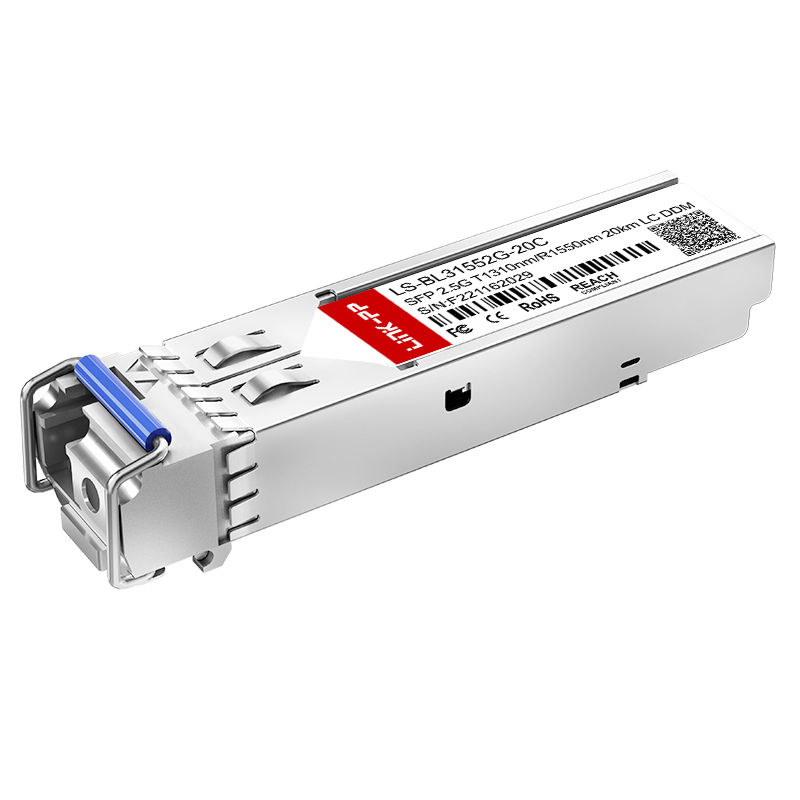

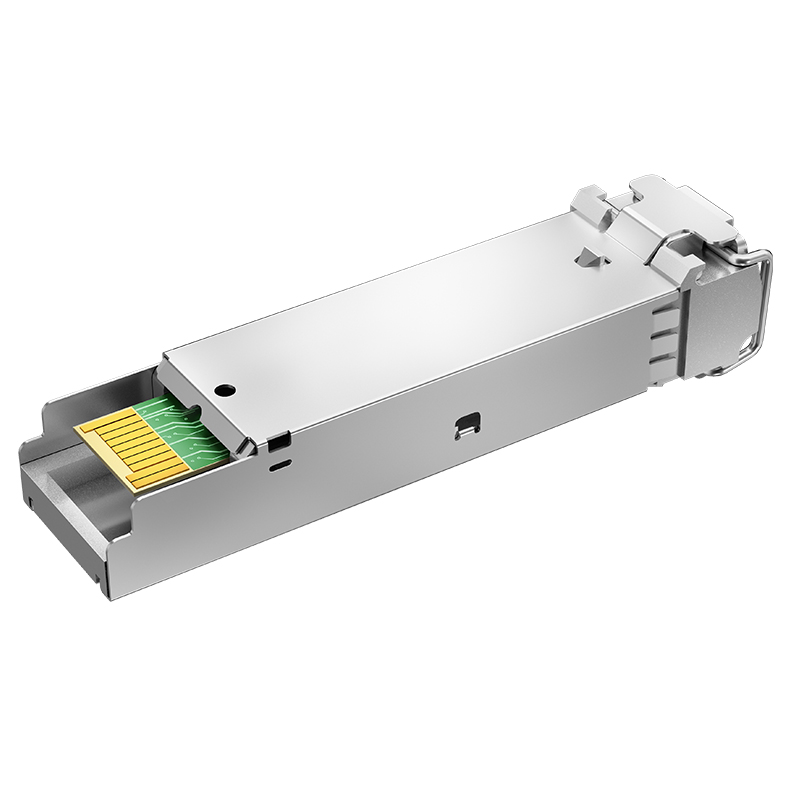

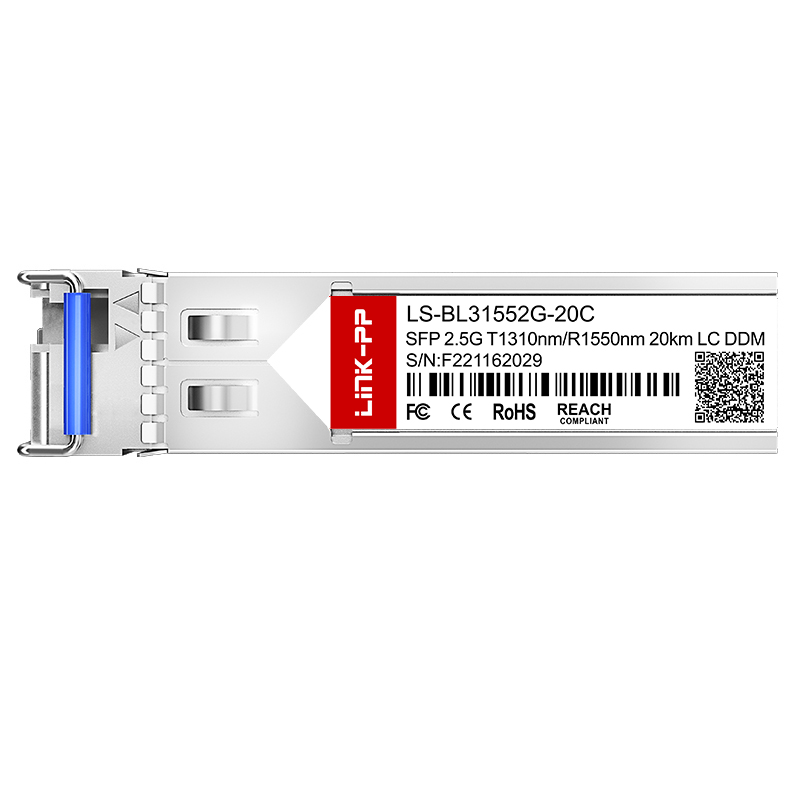

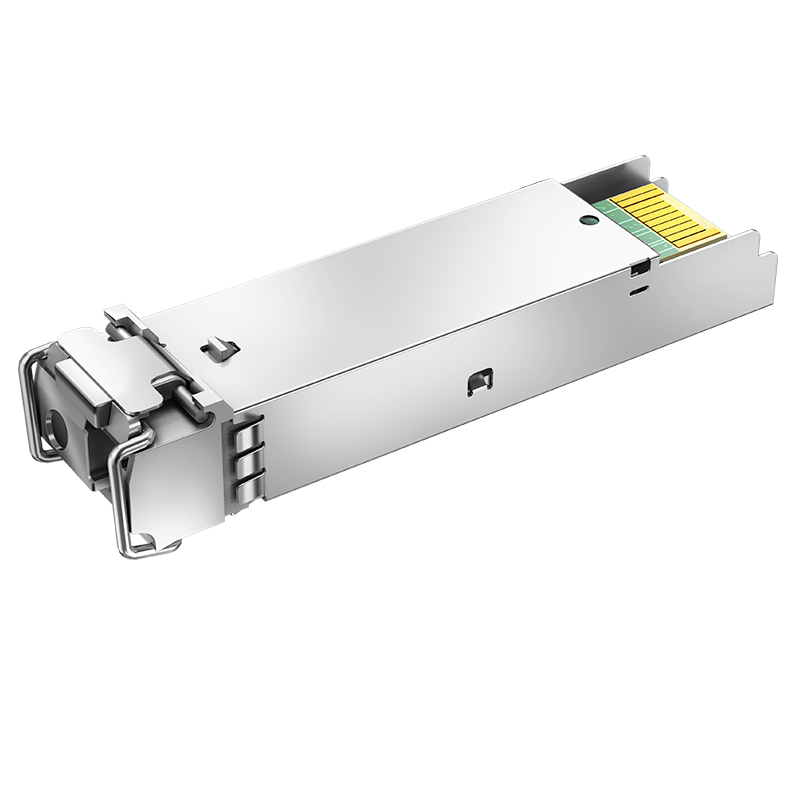

1310nm-TX/1550nm-RX Bidirectional Single Mode SFP 2.5G Bidi 20km LC Optical Transceiver Module

1 / 5

1310nm-TX/1550nm-RX Bidirectional Single Mode SFP 2.5G Bidi 20km LC Optical Transceiver Module

Send Inquiry

Product Description

Part No.	LS-BL31552G-20C
Form Factor	SFP
Max Data Rate	2.5Gbps
Wavelength	1310nm-TX/1550nm-RX
Max Cable Distance	20km
Connector	Simplex LC
Media	SMF
Transmitter Type	FP
Receiver Type	PIN
EMC (Electro Magnetic Compatibility)	Supported
DDM/DOM	Supported
Protocols	Fast Ethernet, Gigabit Fibre Channel, MSA Compliant
Temperature Range	0 to 70°C / -40 to 85°C
Warranty	5 Years
Sample	Available

VIEW OUR SOLUTIONS

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.

We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

Support 1.25G BiDi SFP

Support 10G/25G BiDi SFP

Optical Transport Networks

We can provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier(EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.

Cloud and Enterprise

To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical module which the product rate ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.

Wireless

We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.

FTTx

Aim to global communication network constructers, we provide FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.

Subsystems

To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).

Related Products SFP Cage

Why Choose Us

FAQ

1. Are you factory or trading company?

We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.

2. Can I get a sample before mass production?

Yes, we can offer you free sample to test quality, but you should pay the shipping fee.

3. What is your delivery time?

Ready to ship for stock and 15-30 days for mass production.

4. What after-service can you offer?

One year guarantee period and we can offer technical support online 24 hours.

5. Can you accept OEM/ODM order?

Yes, please send inquiry to us so that we can have a detailed discussion.

6. What is your advantage?

We have 19 years of production experience.
