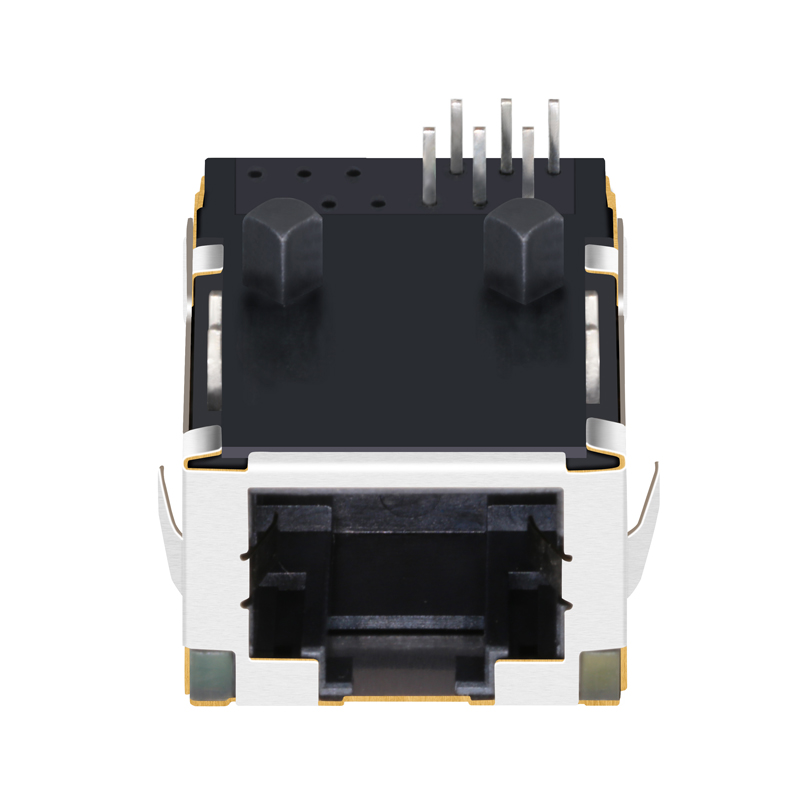

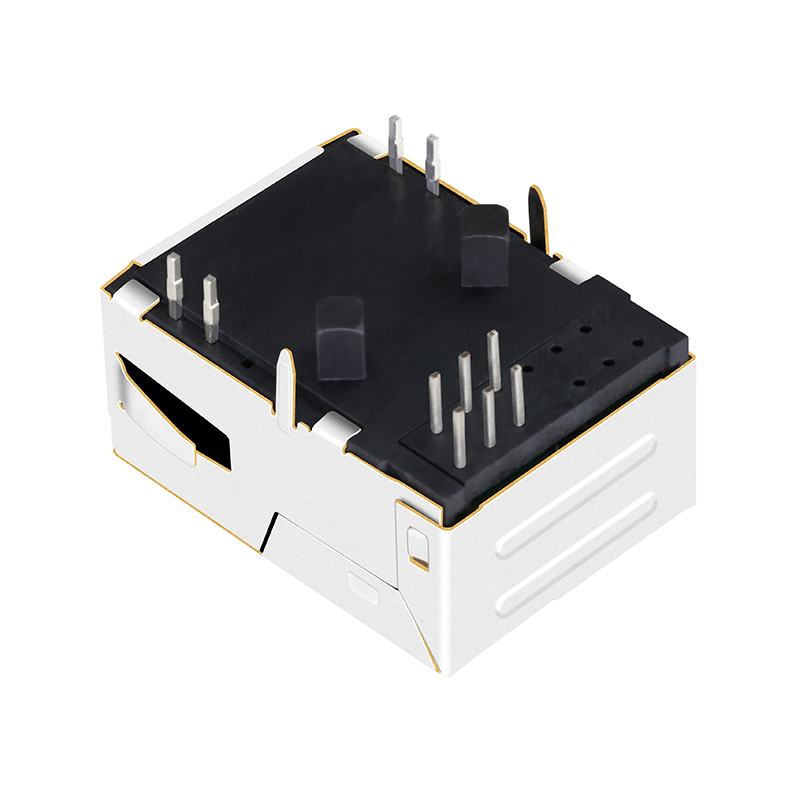

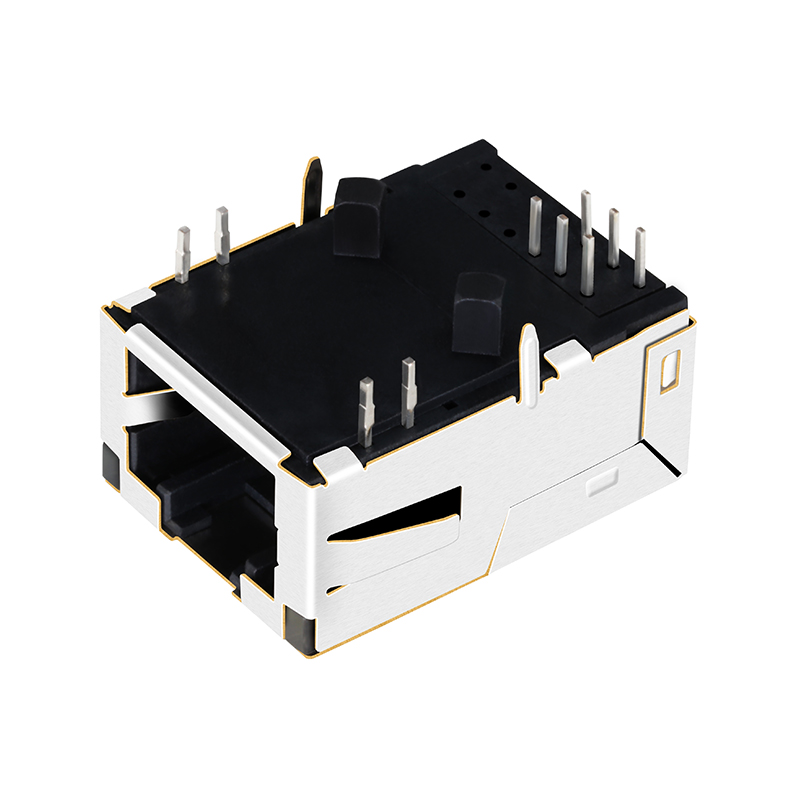

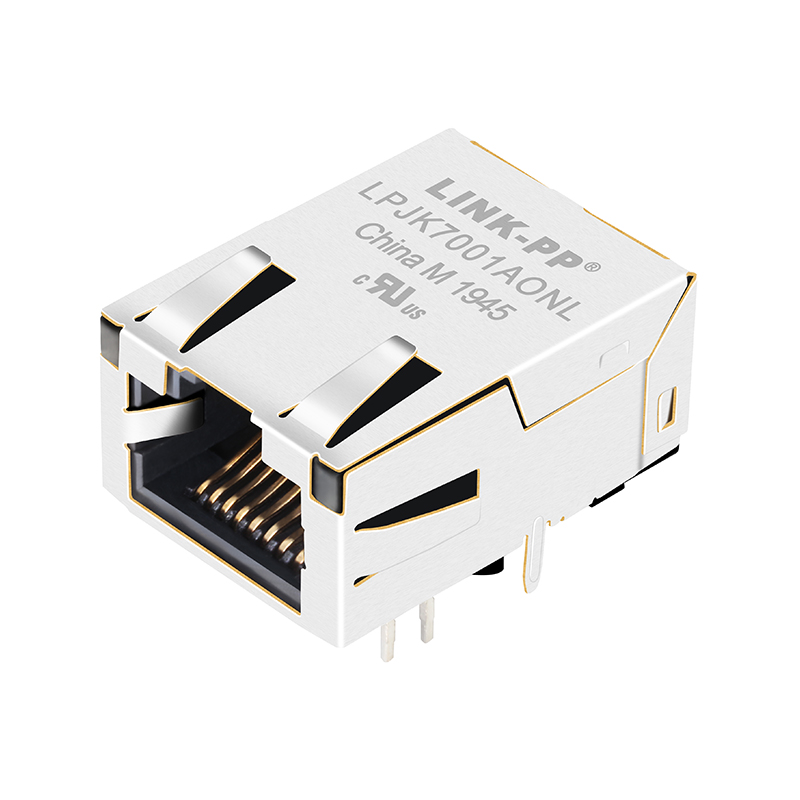

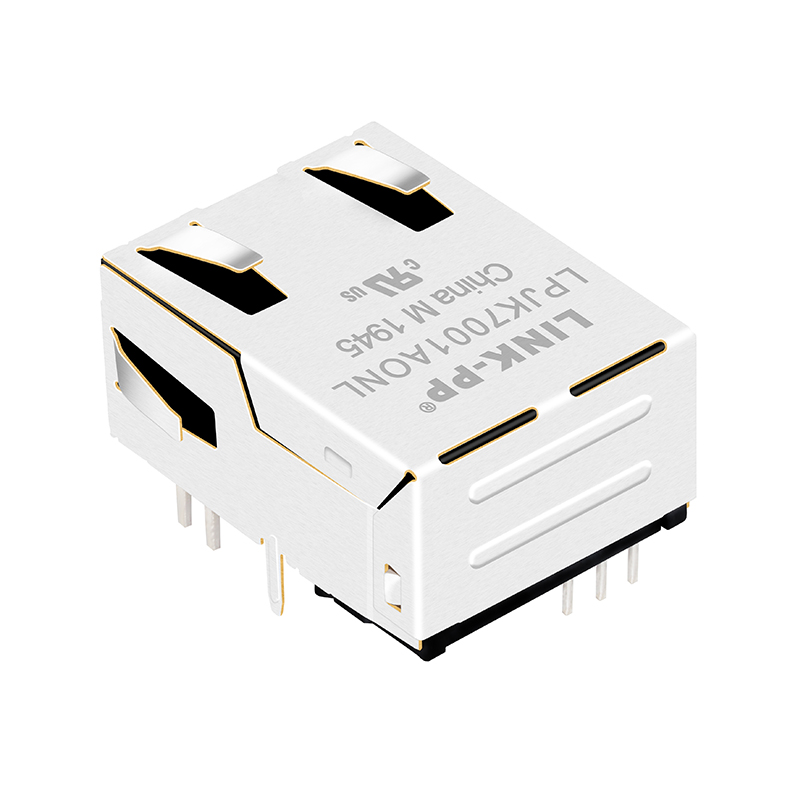

L829-1X1T-91 Tab up 10/100 Base-t Ethernet Magnetic Female Low Profile RJ45 Connector With Leds
L829-1X1T-91 Tab up 10/100 Base-t Ethernet Magnetic Female Low Profile RJ45 Connector With Leds
L829-1X1T-91 Tab up 10/100 Base-t Ethernet Magnetic Female Low Profile RJ45 Connector With Leds
L829-1X1T-91 Tab up 10/100 Base-t Ethernet Magnetic Female Low Profile RJ45 Connector With Leds
L829-1X1T-91 Tab up 10/100 Base-t Ethernet Magnetic Female Low Profile RJ45 Connector With Leds
1 / 5
L829-1X1T-91 Tab up 10/100 Base-t Ethernet Magnetic Female Low Profile RJ45 Connector With Leds
L829-1X1T-91 Tab up 10/100 Base-t Ethernet Magnetic Female Low Profile RJ45 Connector With Leds
L829-1X1T-91 Tab up 10/100 Base-t Ethernet Magnetic Female Low Profile RJ45 Connector With Leds
L829-1X1T-91 Tab up 10/100 Base-t Ethernet Magnetic Female Low Profile RJ45 Connector With Leds
L829-1X1T-91 Tab up 10/100 Base-t Ethernet Magnetic Female Low Profile RJ45 Connector With Leds

L829-1X1T-91 Tab up 10/100 Base-t Ethernet Magnetic Female Low Profile RJ45 Connector With Leds

Send Inquiry

Product Description

Ethernet RJ45 Connector Overview
L829-1X1T-91 Tab Up 10/100 Base-t Ethernet Magnetic Female Low Profile RJ45 Connector With Leds
Products Description
Item RJ45 Female Connector
Part Number LPJK7001AONL
Compatible With L829-1X1T-91
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option With
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Diagram Specification
Click Below Products To Get More
Related Product Range
Product Performance Chart Internal Circuit Design Mechanical Dimensions
Recommended PCB Layout Package Options Testing Parameters
Material Specification and Details
Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.
We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer company.
Production Facility Overview Advanced Testing Lab Automated Assembly Line
Frequently Asked Questions
1. Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should cover the shipping fee.
3. What is your delivery time?
We are ready to ship for stock items, and it takes 15-30 days for mass production orders.
4. What after-service can you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, please send your inquiry to us so that we can have a detailed discussion about your specific requirements.
6. What is your advantage?
We have over 19 years of manufacturing and design experience, serving as a trusted supplier for major global tech companies for many years.
