DIP Gold Pleated Network Ethernet PCB Shielded RJ45 Female Combo Jack With Single USB

Product Description

Product Overview
DIP Gold Pleated Network Ethernet PCB Shielded RJ45 Female Combo Jack With Single USB
Products Description
Item RJ45 Connector Without Magnetics
Part Number LPJE3060CNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 10p8c (RJ45, Ethernet)
Application-Lan Ethernet(Non Poe)
Number of Ports 1 Port with 1 usb
Latch Up
Cores per Port 8
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Without Led Light
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

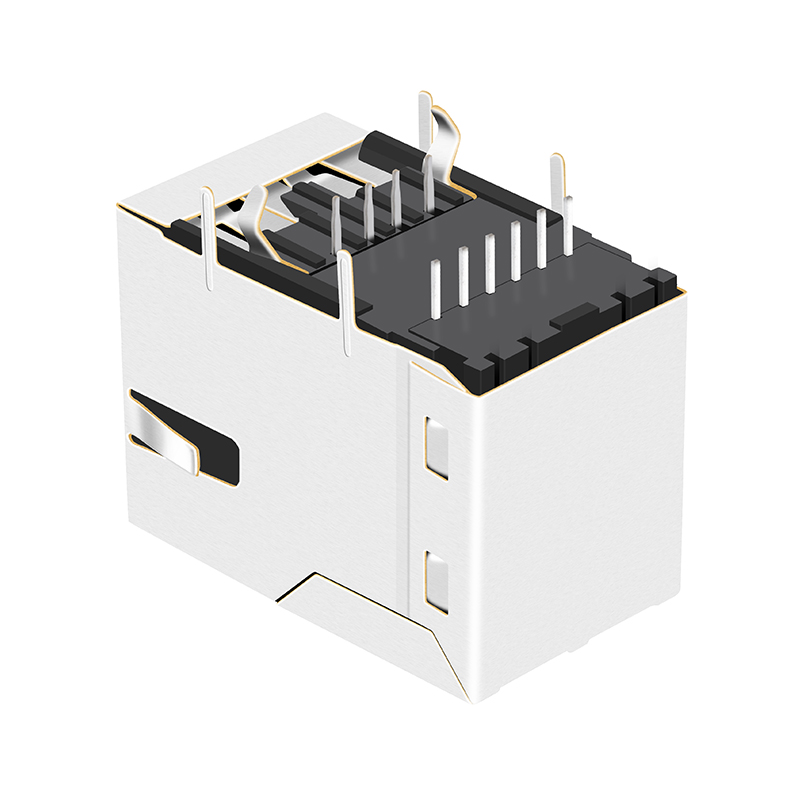

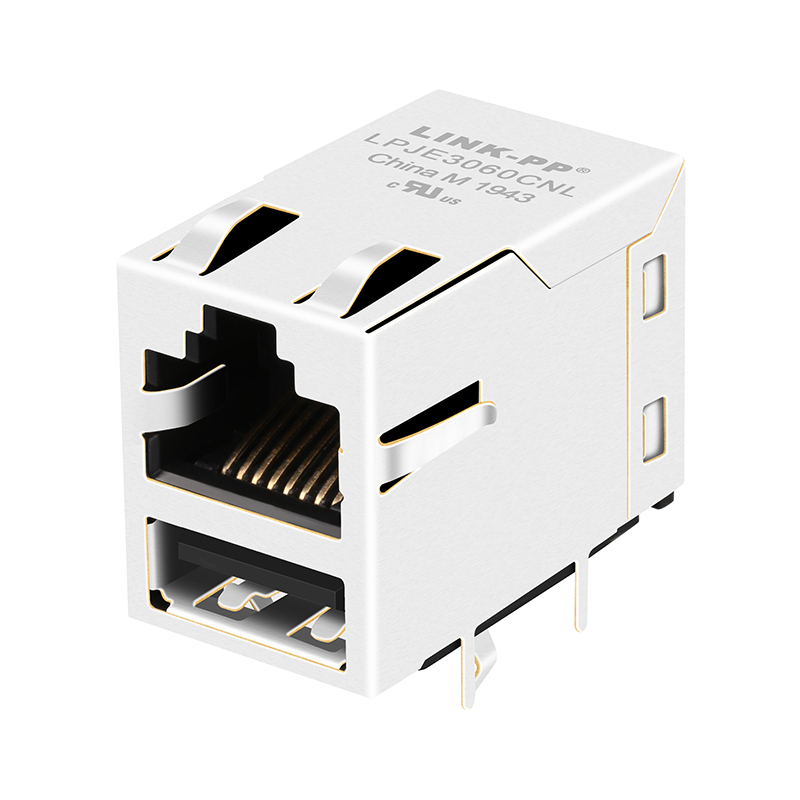

Detail 1 Detail 2 Detail 3

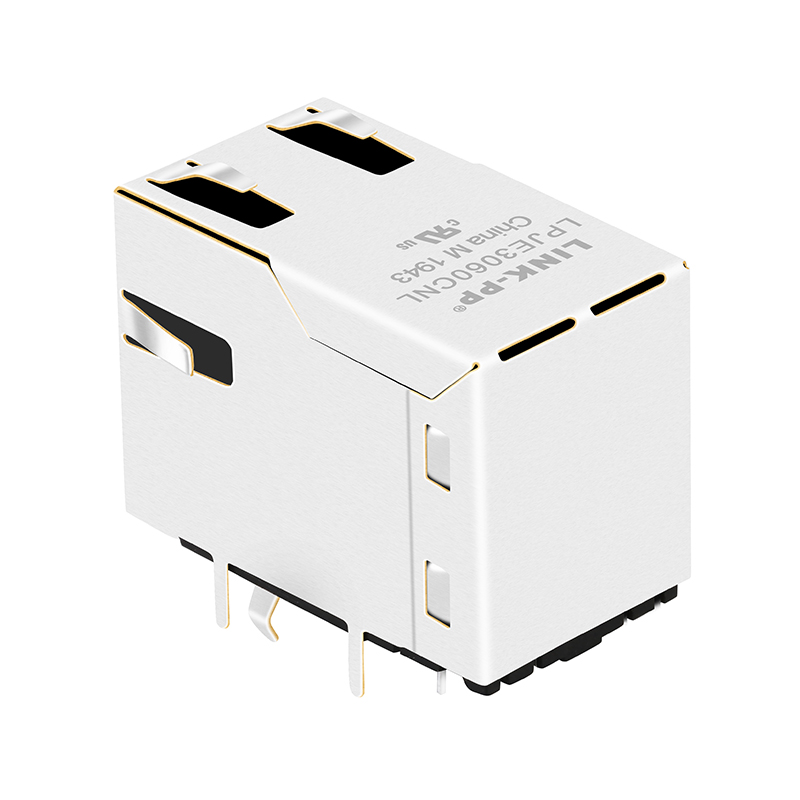

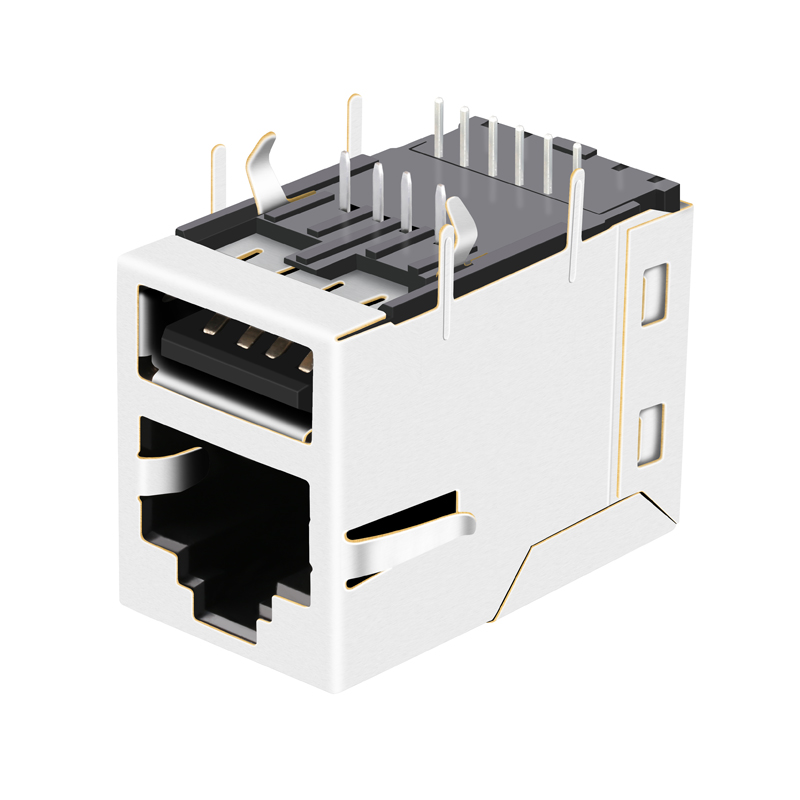

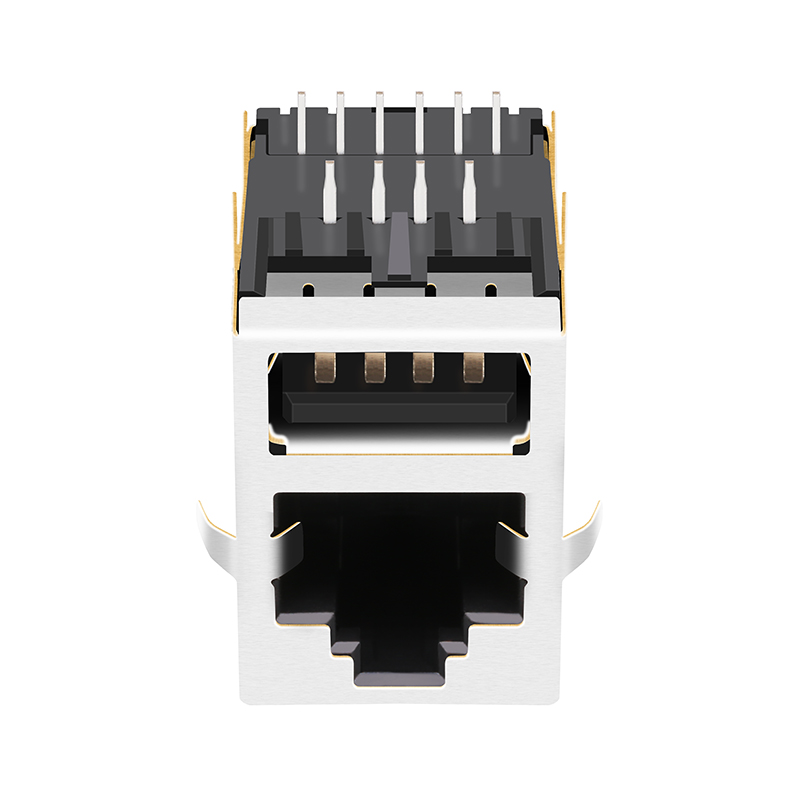

Angle 1 Angle 2 Angle 3
Product Layout
Product Variations & Series
Product Range
Factory & Production Capacity
Facility 1
Facility 2
Facility 3
Facility 4
Facility 5
Facility 6
About Our Enterprise
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.

As a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, we serve more than 10,000+ customers across 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to being a world leader in Ethernet RJ45 connectors and LAN transformer solutions.
Showcase 1 Showcase 2
Frequently Asked Questions
Are you factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, though shipping fees are typically covered by the customer.
What is your delivery time?
Stock items are ready to ship immediately; mass production typically takes 15-30 days.
What after-service can you offer?
We provide a one-year guarantee period and offer 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, we welcome OEM and ODM inquiries for detailed discussion on custom specifications.
What is your advantage?
With over 19 years of production experience, we have established long-term partnerships with leading global technology firms.
