Multiple Mode 850nm 400G QSFP-DD SR8 100m MTP/MPO-16 APC MMF Optical Transceiver Module

Product Description

Multiple Mode 850nm 400G QSFP-DD SR8 100m MTP/MPO-16 APC MMF Optical Transceiver Module
Products Description
Item Fiber Optical Modules
Part Status Active
Form Factor QSFP-DD
Max Data Rate 400Gbps
Max Cable Distance 70m@OM3/100m@OM4
Wavelength 850nm
Connector MTP/MPO-16 (APC)
Media MMF
Optical Component VCSEL/PIN
TX Power -6~4dBm
RX Power -7.9~4dBm
Modulation 8x 50G PAM4
Powerbudget 1.9dB
Power Consumption ≤10W
Extinction Ratio 3dB
DDM/DOM DDM Supported
Commercial Temperature Range 0 to 70°C (32 to 158°F)
Warranty 5 Years
Sample Available
Protocols IEEE 802.3cd, QSFP-DD MSA, CMIS 4.0
View Our Solution
High-Performance Optical Integration
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Optical Transceiver Interface

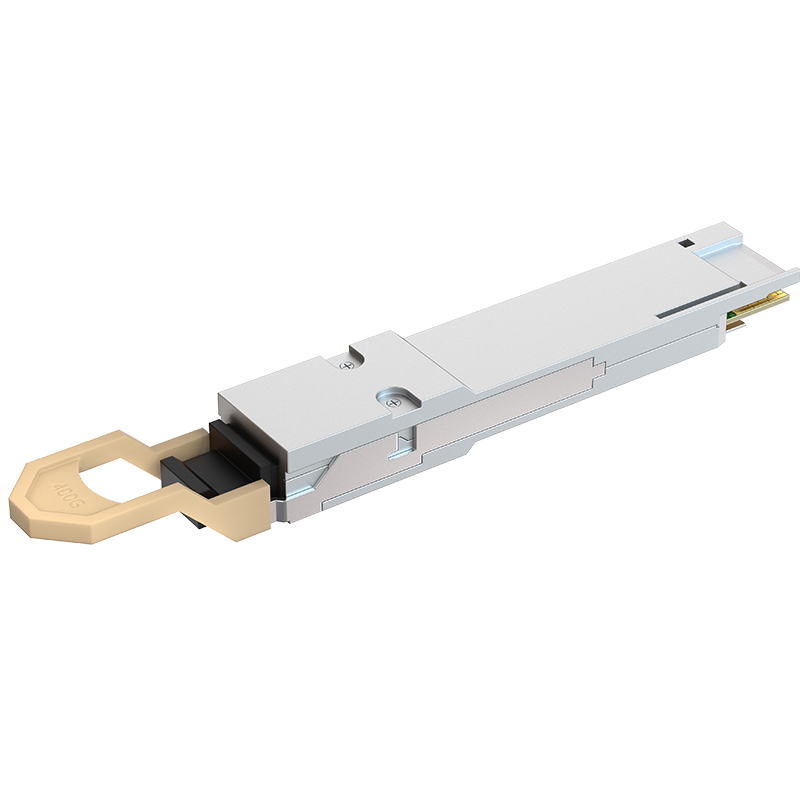

Product Angle View 1

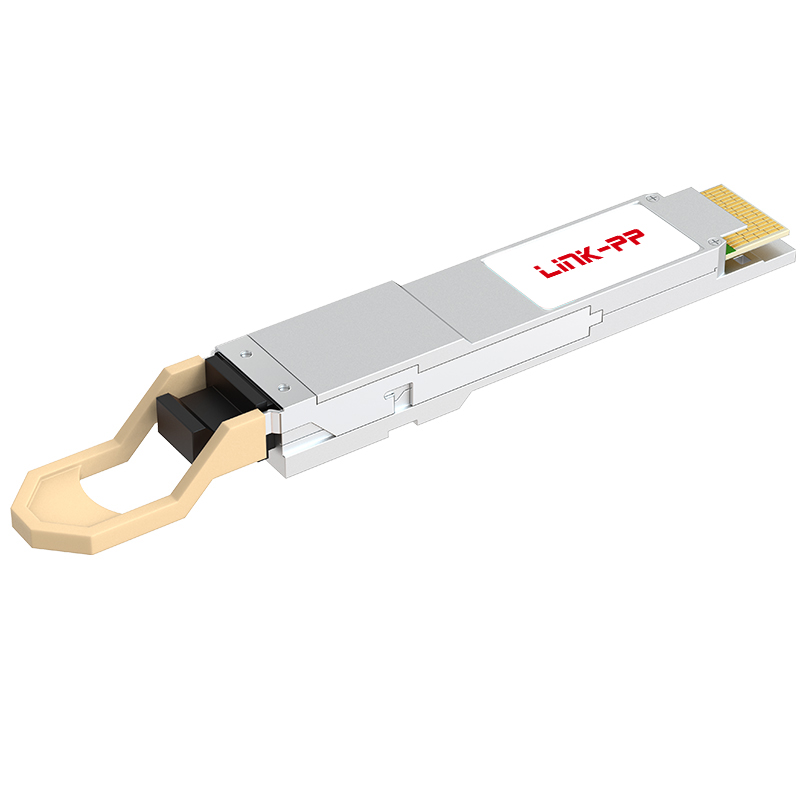

Product Angle View 2

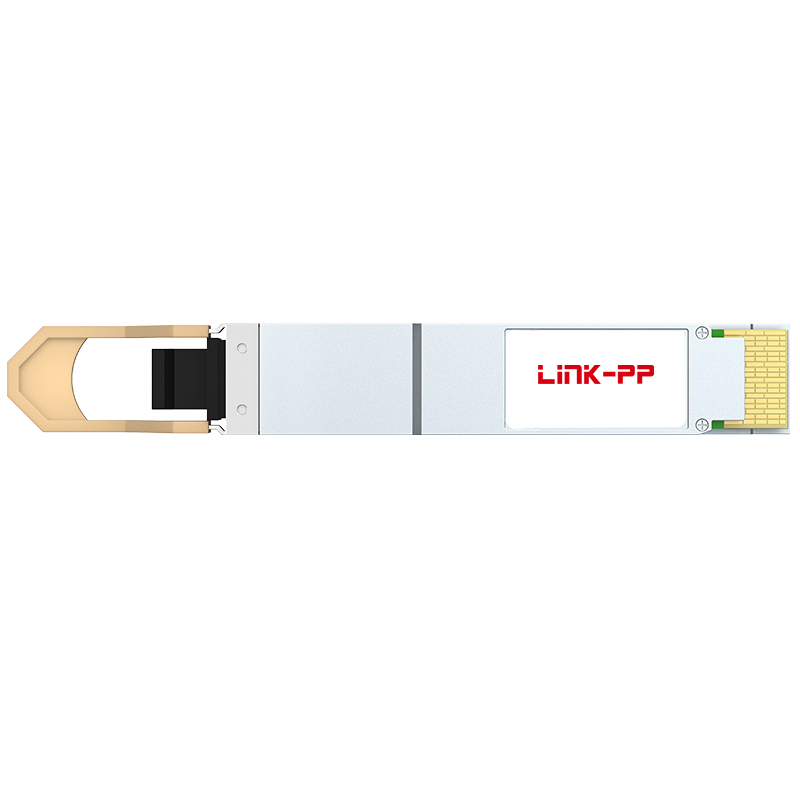

Product Top View
Product Categories Overview
Technical Layout
Production Process
Testing Equipment
Related Products SFP Cage
SFP Cage Accessories
Why Choose Us
Quality Standard Certifications
Production Capacity Benchmarks
Testing Procedures
Global Support & Services
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, RoHS, REACH, CE, and UL, owning advanced manufacturing facilities and test equipment imported from abroad.

Established in 1997, we currently have around 2,000 staff. With an abundant production capacity of 3,000K per month, we are able to deliver products within a short timeframe.

Moreover, we provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. With the latest optoelectronics technologies, we develop, manufacture, and sell products around the world.
Factory Internal Structure
Machinery and Production
FAQ
Q Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Q Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but the shipping fee needs to be covered by the buyer.
Q What is your delivery time?
Ready to ship for stock items, and 15-30 days for mass production.
Q What after-sales service can you offer?
We offer a one-year guarantee period and provide 24-hour online technical support.
Q Can you accept OEM/ODM orders?
Yes, please send your inquiry to us so that we can have a detailed discussion.
Q What is your advantage?
We possess 19 years of production experience and have been a trusted partner for leading global technology brands for many years.
