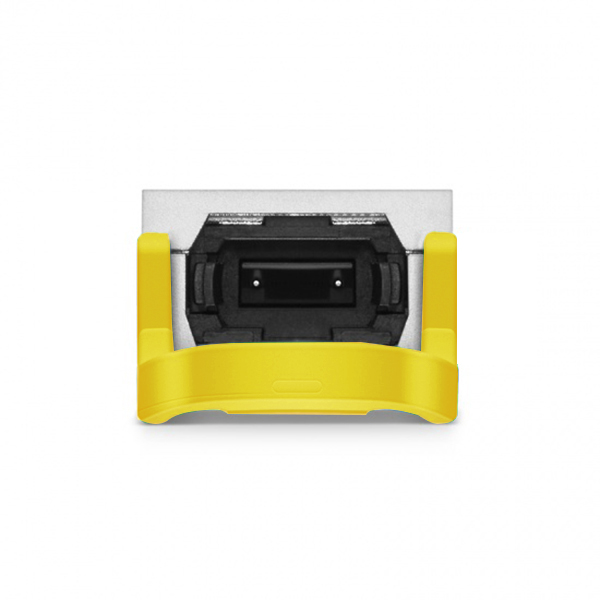

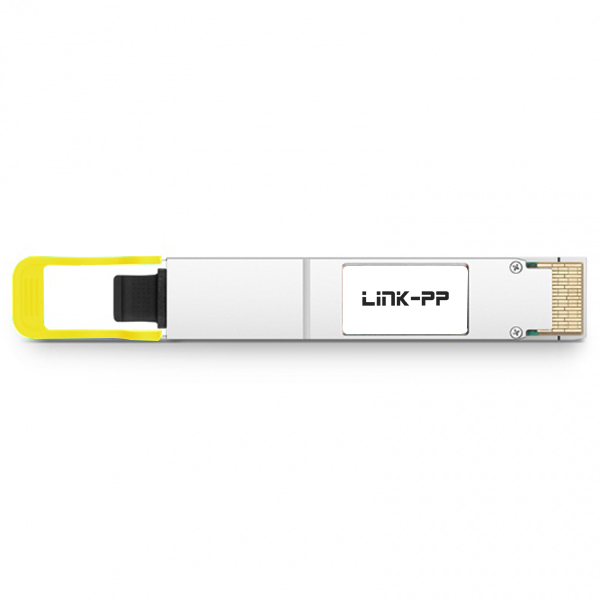

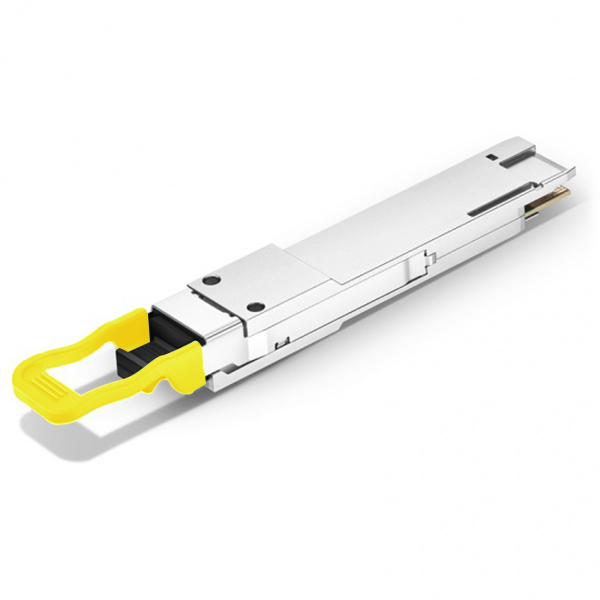

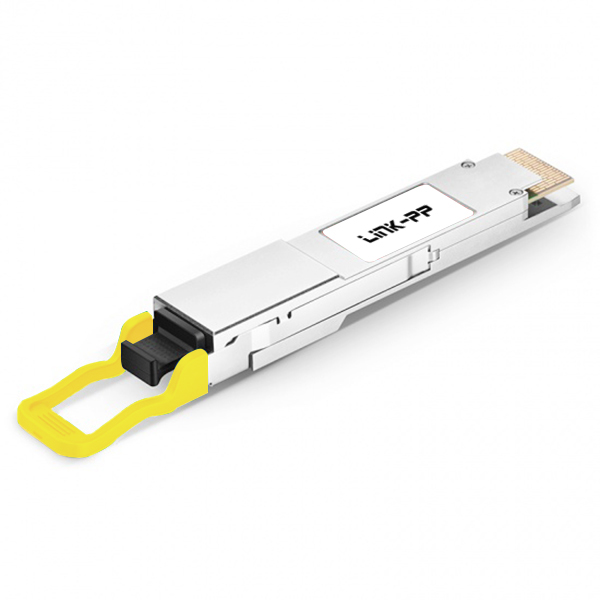

400G DR4 QSFP-DD PAM4 1310nm 500m MTP/MPO-12 APC SMF Optical Transceiver Module
Products Description
| Item |
Fiber Optical Modules |
| Part Status |
Active |
| Form Factor |
QSFP-DD |
| Max Data Rate |
425Gbps (4x106.25Gb/s) |
| Max Cable Distance |
500m |
| Wavelength |
1310nm |
| Connector |
MTP/MPO-12 APC |
| Media |
SMF |
| Optical Component |
DFB/PIN |
| TX Power |
-2.9~4dBm |
| RX Power |
-5.9~4.0dBm |
| Receiver Sensitivity |
-6.5dBm |
| Powerbudget |
3dB |
| Power Consumption |
≤10W |
| Extinction Ratio |
3.5dB |
| DDM/DOM |
DDM Supported |
| Commercial Temperature Range |
0 to 70°C (32 to 158°F) |
| Warranty |
5 Years |
| Sample |
Available |
| Protocols |
IEEE 802.3bs, QSFP-DD MSA, CMIS 4.1 |
VIEW OUR SOLUTION
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Related Products SFP Cage
Why Choose Us
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, RoHS, REACH, CE and UL, and equipped with advanced manufacturing facilities and test equipment imported from abroad.
Established in 1997, we currently have around 2,000 staff members. With an abundant production capacity of 3,000K units per month, we are capable of delivering products within short lead times.
Moreover, we provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. With the latest optoelectronics technologies, we develop, manufacture, and distribute products globally.
FAQ
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, with the shipping fees covered by the buyer.
What is your delivery time?
Stock items are ready to ship immediately, while mass production typically takes 15-30 days.
What after-sales service do you offer?
We offer a one-year warranty period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send us your inquiry details so we can proceed with a detailed discussion.
What is your advantage?
We have over 19 years of manufacturing experience and have partnered with global industry leaders for many years.
