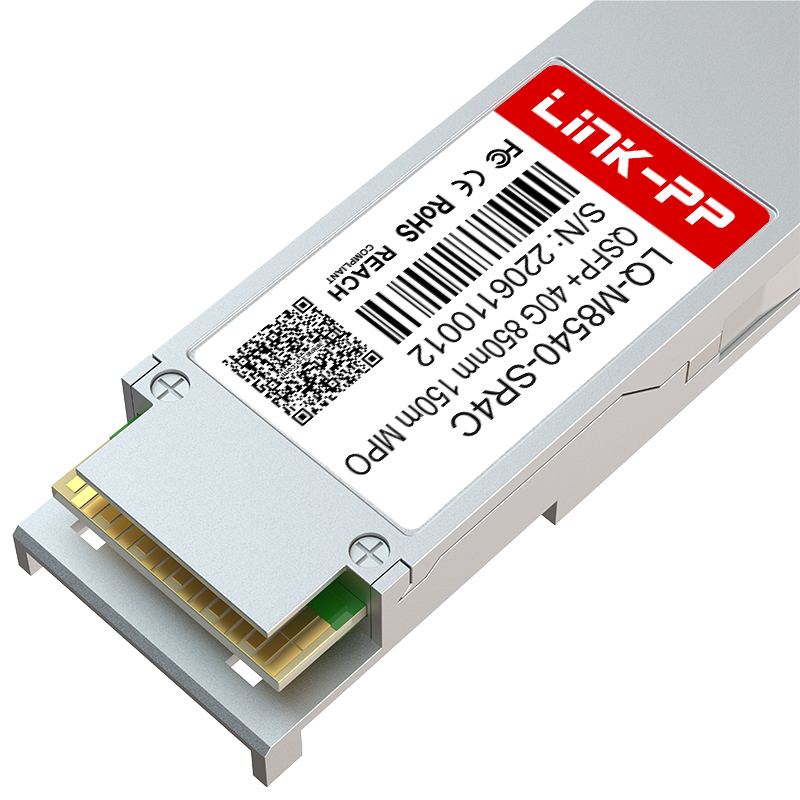

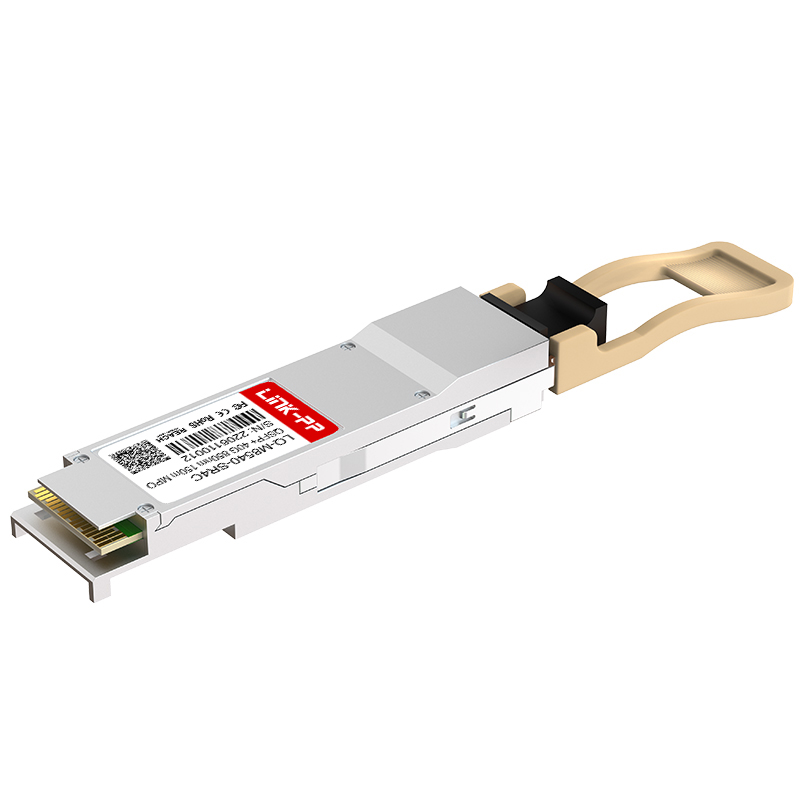

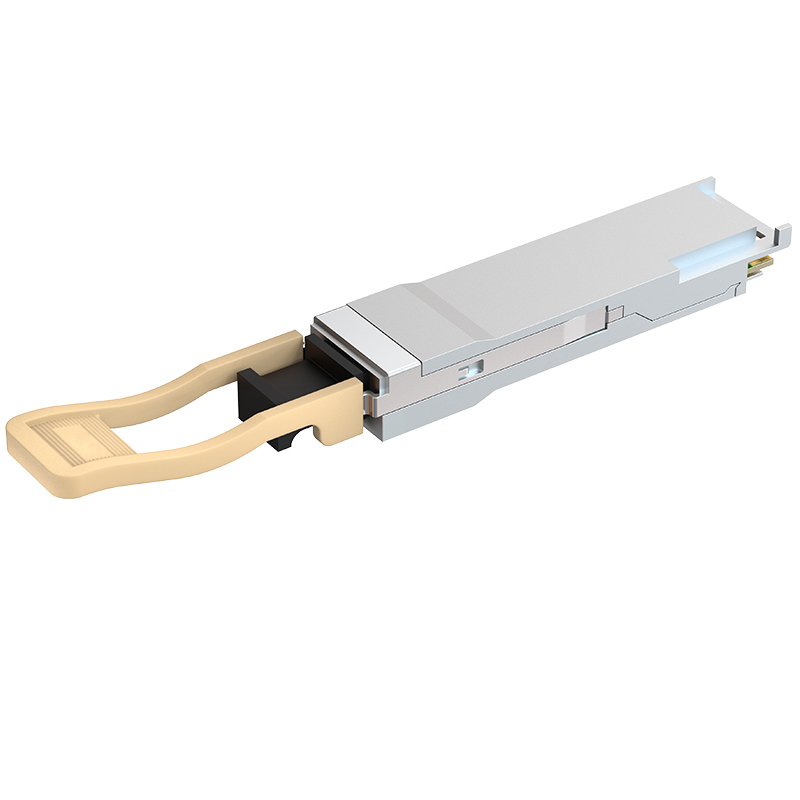

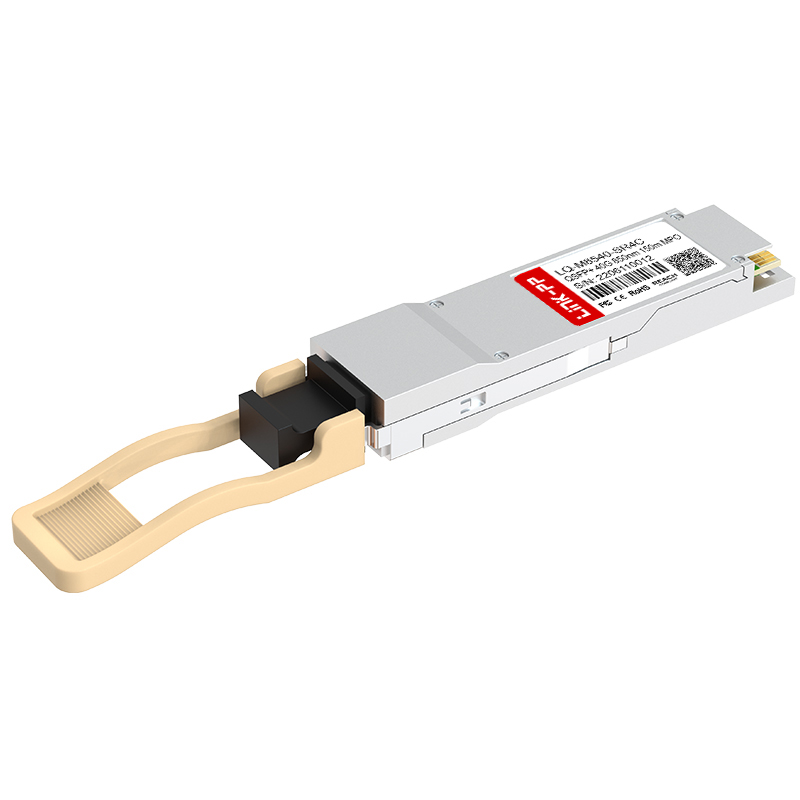

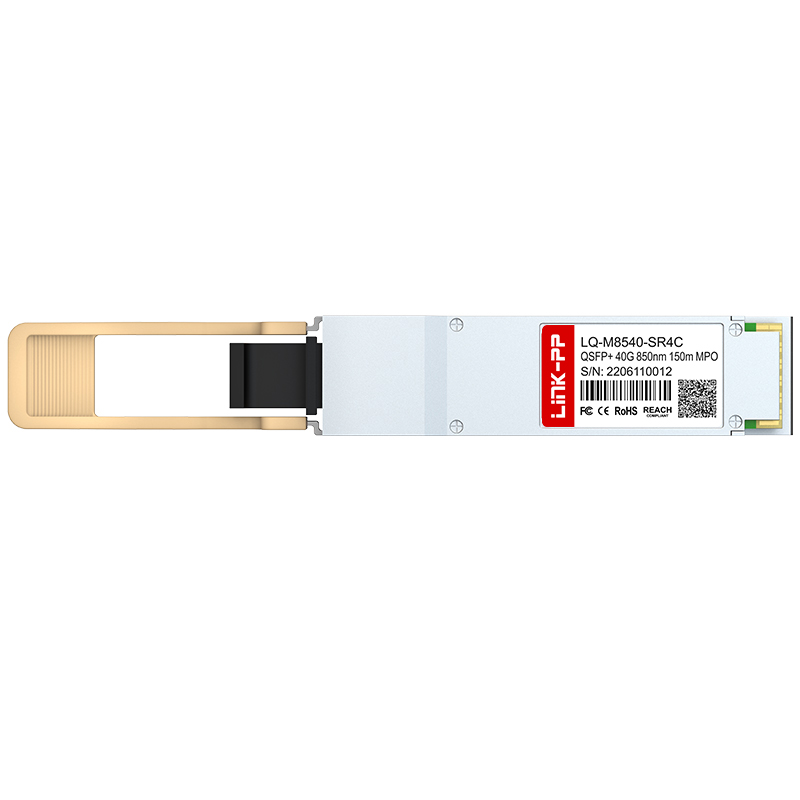

40GBASE-SR4 MPO-12 Multimode Optical Transceiver MMF 850nm 40G QSFP+ Module 150m

Product Description

40GBASE-SR4 MPO-12 Multimode Optical Transceiver MMF 850nm 40G QSFP+ Module 150m
Products Description
Item 40G Optical Modules
Replaceable Part Cisco, HW, Arista, Juniper, Brocade, Intel, etc
Part Status Active
Form Factor QSFP+
Max Data Rate 41.25Gbps (4x 10.3125Gbps)
Wavelength 850nm
Max Cable Distance 150m@OM4/100m@OM3
Media MMF
Connector MTP/MPO-12 Male
Optical Component VCSEL/PIN
TX Power -7.1~1.9dBm
Receiver Sensitivity < -10.3dBm
Powerbudget 3.5dB
Receiver Overload 2.4dBm
Power Consumption ≤1.5W
Extinction Ratio >3dB
DDM Supported
Commercial Temperature Range 0 to 70°C (32 to 158°F)
Protocols IEEE 802.3ba, QSFP+ MSA, SFF-8436, SFF-8636
Warranty 5 Years
Sample Available
View Our Solution
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Solution details
Module feature 1
Module feature 2
Product layout
Module solutions map
Optical Transport Networks
We can provide end-to-end DWDM devices with almost all optical components - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR etc.
Optical Transport Networks
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, a series of high-speed optical modules with product rates ranging from 10G to 800G has been developed, providing high-quality optical interconnection solutions for data centers.
Cloud and Enterprise
Wireless
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
Wireless
FTTx
Aiming at global communication network constructors, we provide FTTx optical fiber access total solutions covering all-optical or optical copper combined access solutions and products.
FTTx
Subsystems
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
Subsystems
Manufacturing facility
Quality check
Related Products SFP Cage
SFP Cage
Why Choose Us
Core advantages 1
Core advantages 2
Core advantages 3
Core advantages 4
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE and UL, owning advanced manufacturing facilities and test equipment imported from abroad.

Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to deliver products within a short time.

Moreover, we provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. With the latest optoelectronics technologies, we develop, manufacture, and sell products around the world.
Enterprise building
Manufacturing workshop
FAQ
1. Are you factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, lan transformers, RJ11 connectors, and SFP modules, etc.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should pay the shipping fee.
3. What is your delivery time?
Ready to ship for stock and 15-30 days for mass production.
4. What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
5. Can you accept OEM/ODM order?
Yes, please send inquiry to us so that we can have a detailed discussion.
6. What is your advantage?
19 years of production experience and we have been industry partners for many years.
