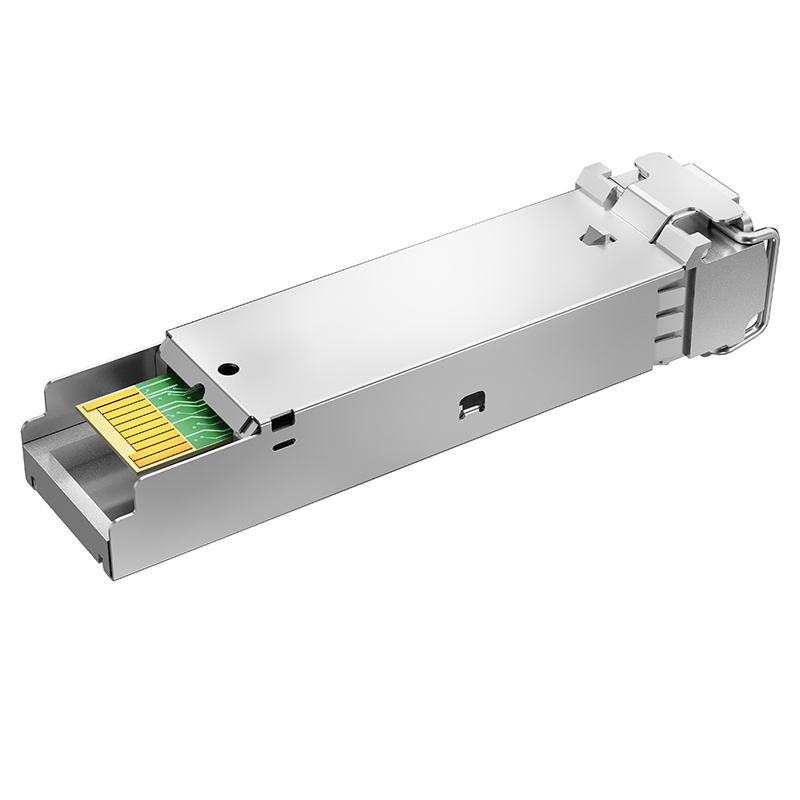

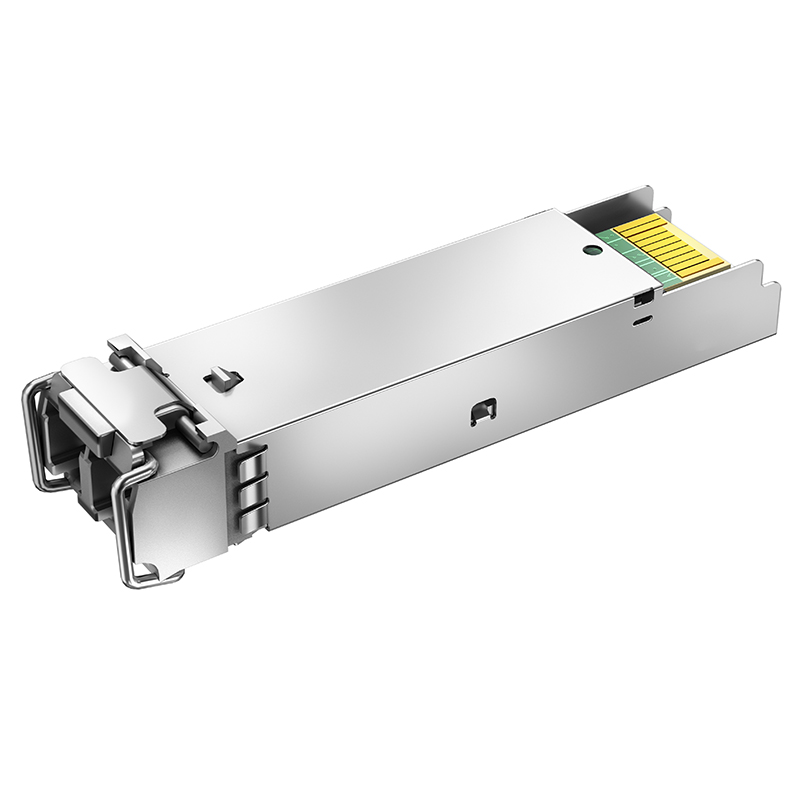

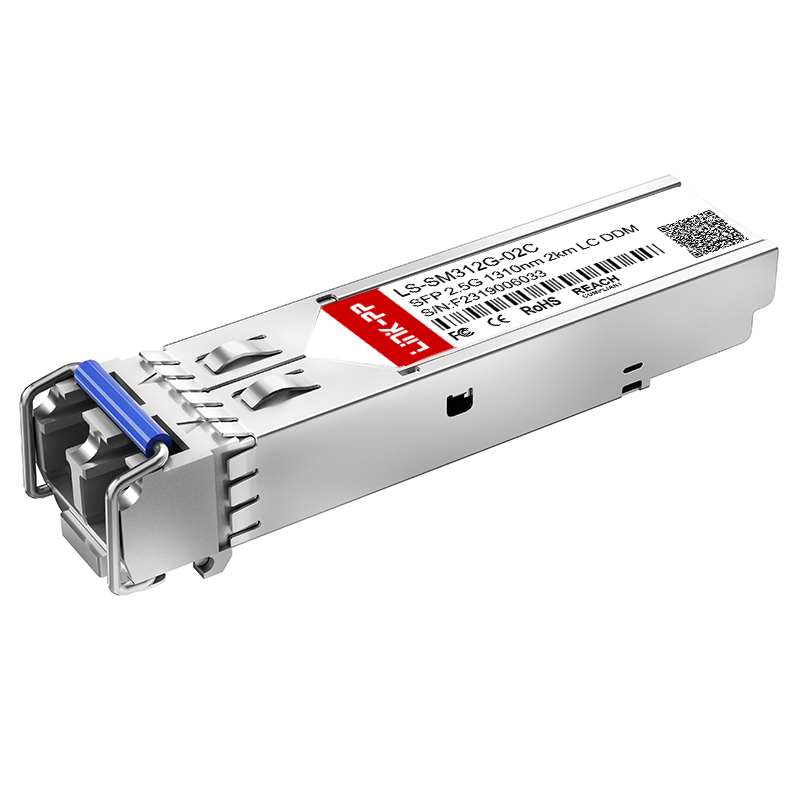

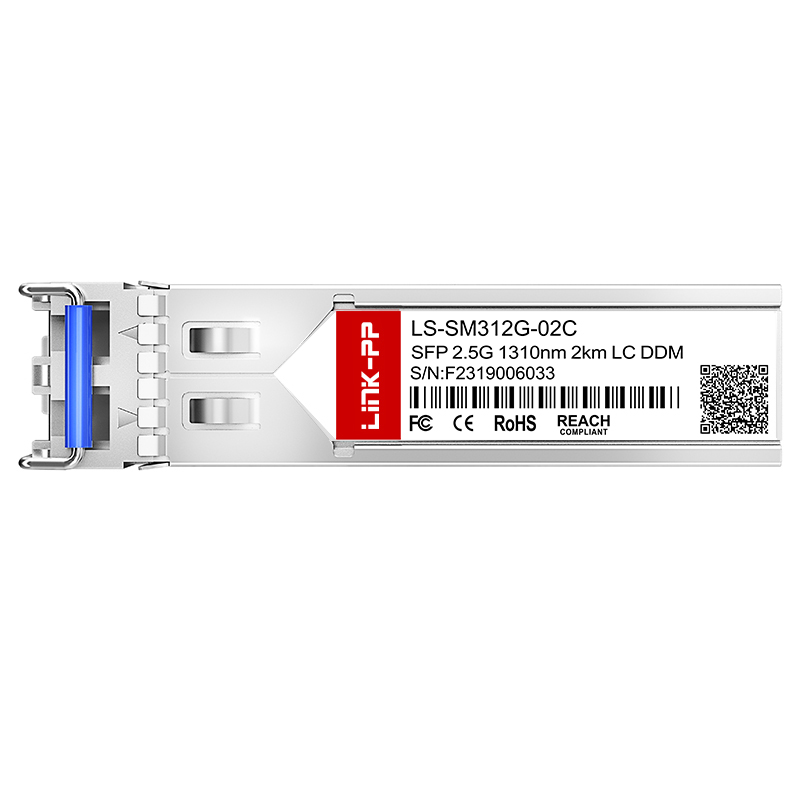

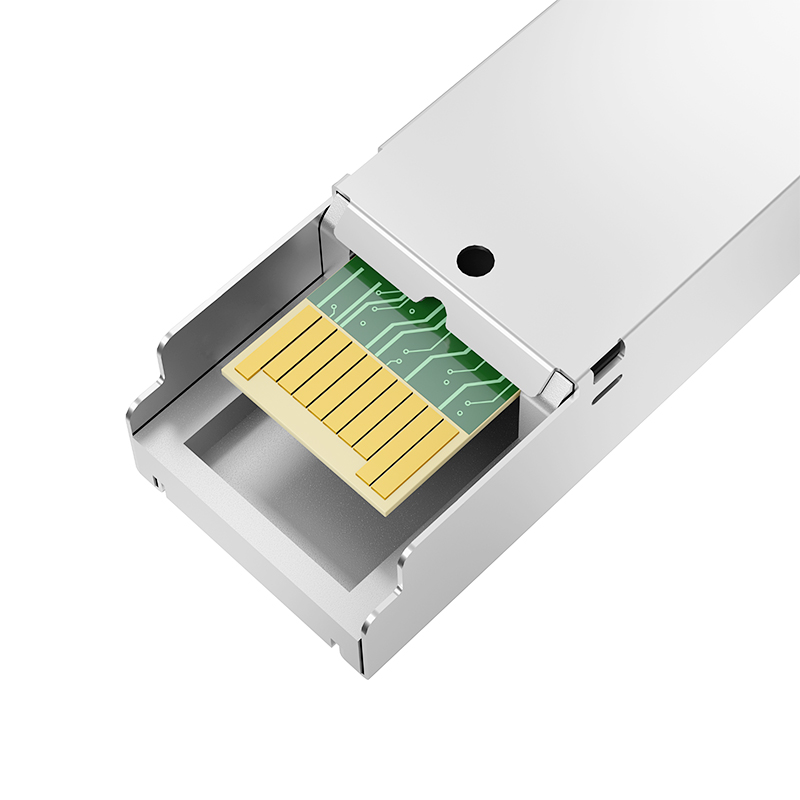

2.5GBASE-LX Single Mode 1310nm SFP 2.5G 2km Dual LC Optic Transceiver Module

1 / 5

2.5GBASE-LX Single Mode 1310nm SFP 2.5G 2km Dual LC Optic Transceiver Module

Send Inquiry

Product Description

💡 VIEW OUR SOLUTIONS

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

Product Specifications
Part No.	LS-SM312G-02C
Form Factor	SFP
Max Data Rate	2.5Gbps
Wavelength	1310nm
Max Cable Distance	2km
Connector	Duplex LC
Media	SMF
Transmitter Type	FP
Receiver Type	PIN
TX Power	-10 ~ 3dBm
Receiver Sensitivity	< -18dBm
Receiver Overload	-3dBm
EMC (Electro Magnetic Compatibility)	Supported
DDM/DOM	Supported
Protocols	MSA Compliant
Temperature Range	0 to 70°C / -40 to 85°C
Warranty	5 Years
Sample	Available

Support Full Range Of 2.5G SFP

Part Number	Data Rate	Wavelength	Distance	Media	DDM
LS-MM852G-S3C	2.5Gbps	850nm	300m	Multi-mode	Yes
LS-MM852G-S5C	2.5Gbps	850nm	550m	Multi-mode	Yes
LS-SM312G-02C	2.5Gbps	1310nm	2km	Single Mode	Yes
LS-SM312G-10C	2.5Gbps	1310nm	10km	Single Mode	Yes
LS-SM312G-15C	2.5Gbps	1310nm	15km	Single Mode	Yes
LS-SM312G-20C	2.5Gbps	1310nm	20km	Single Mode	Yes
LS-SM552G-20C	2.5Gbps	1550nm	20km	Single Mode	Yes
LS-SM312G-40C	2.5Gbps	1310nm	40km	Single Mode	Yes
LS-SM552G-40C	2.5Gbps	1550nm	40km	Single Mode	Yes
LS-SM552G-80C	2.5Gbps	1550nm	80km	Single Mode	Yes

Application Scenarios

Optical Transport Networks

We provide end-to-end DWDM devices along with almost all optical devices - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR etc.

Cloud and Enterprise

To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.

Wireless

We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.

FTTx

Aimed at global communication network constructors, we provide FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.

Subsystems

To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).

Related Products SFP Cage

Why Choose Us

FAQ

❓ Are you a factory or a trading company?

We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

❓ Can I get a sample before mass production?

Yes, we can offer you free samples to test quality, but the customer needs to cover the shipping cost.

❓ What is your delivery time?

Items currently in stock are ready to ship immediately. For mass production orders, the delivery timeframe is typically 15-30 days.

❓ What after-sales service do you offer?

We provide a warranty period along with round-the-clock (24 hours) online technical support.

❓ Can you accept OEM/ODM orders?

Yes, custom solutions are welcome. Please contact us directly with your specific inquiries so we can initiate a detailed discussion.

❓ What is your advantage?

We possess nearly two decades of production experience, utilizing advanced manufacturing and testing equipment to maintain top-tier industry standards.
