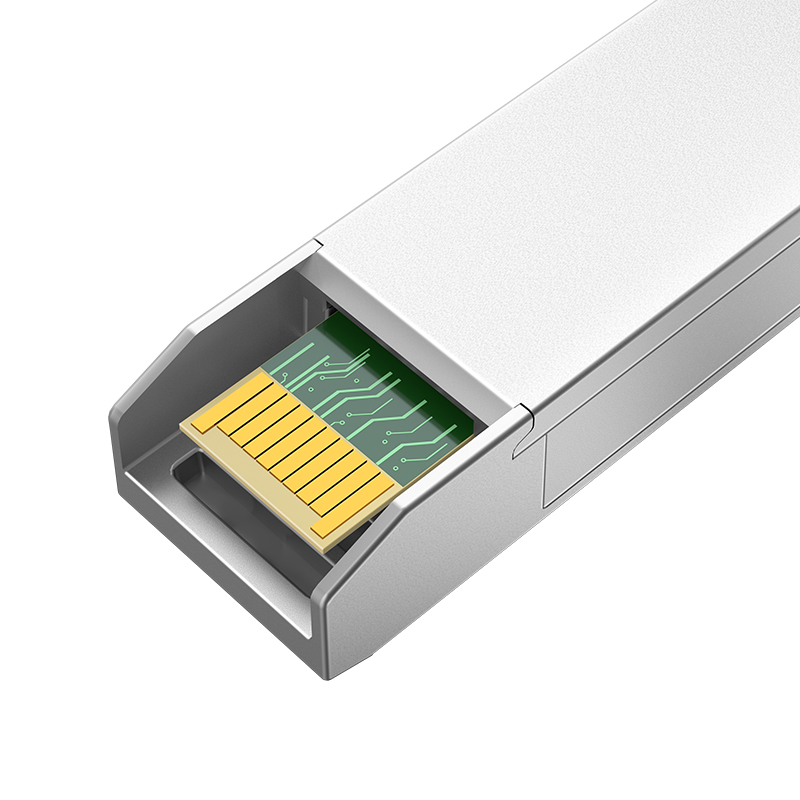

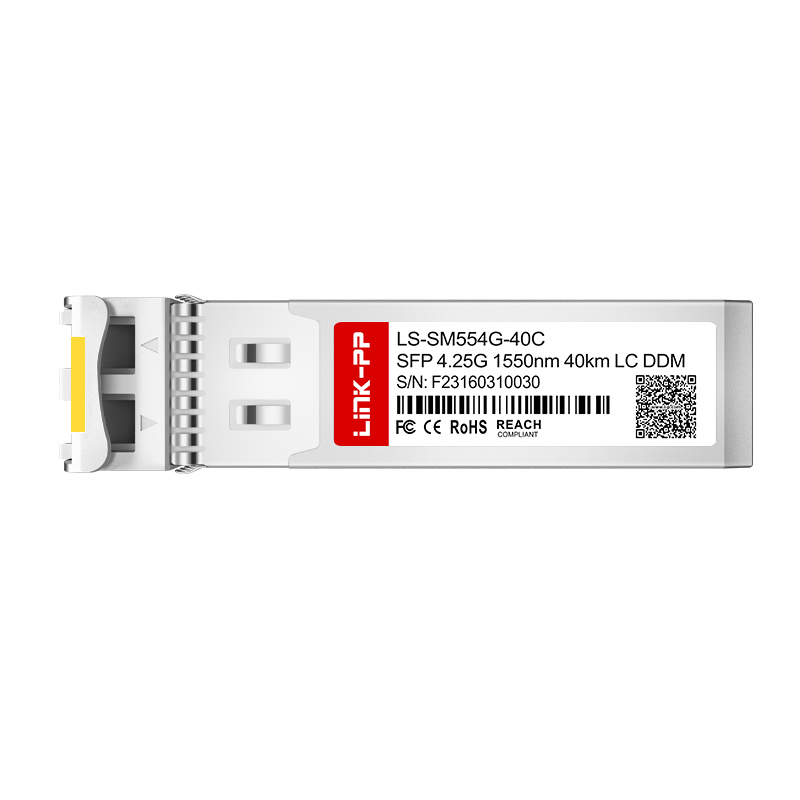

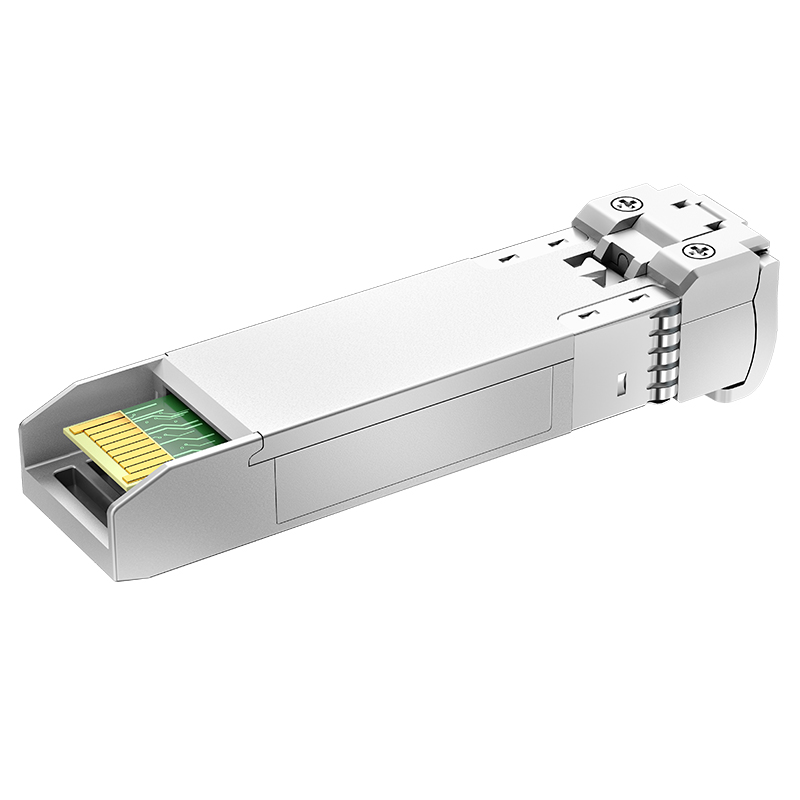

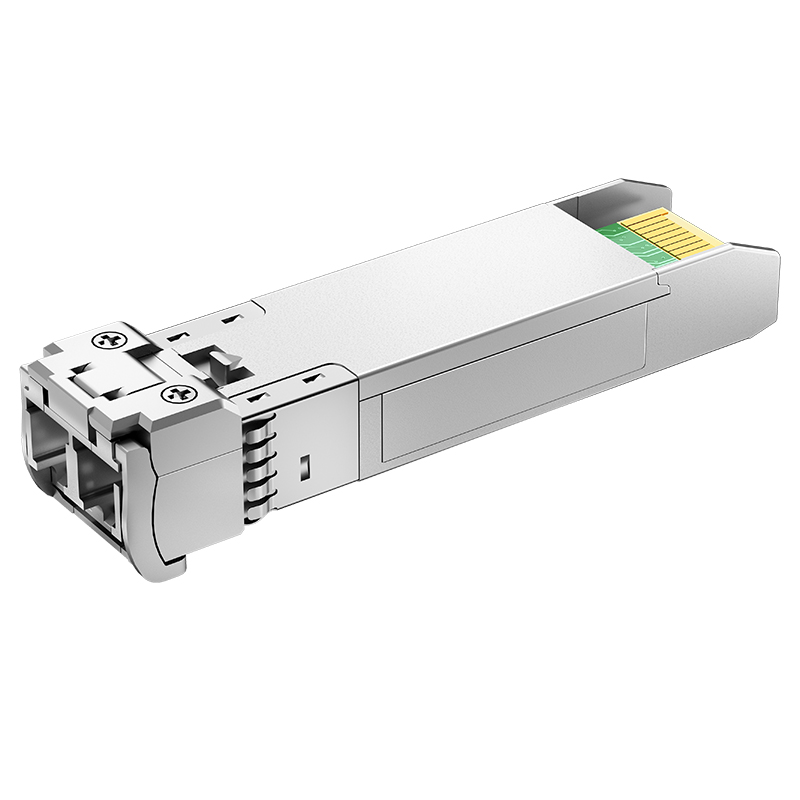

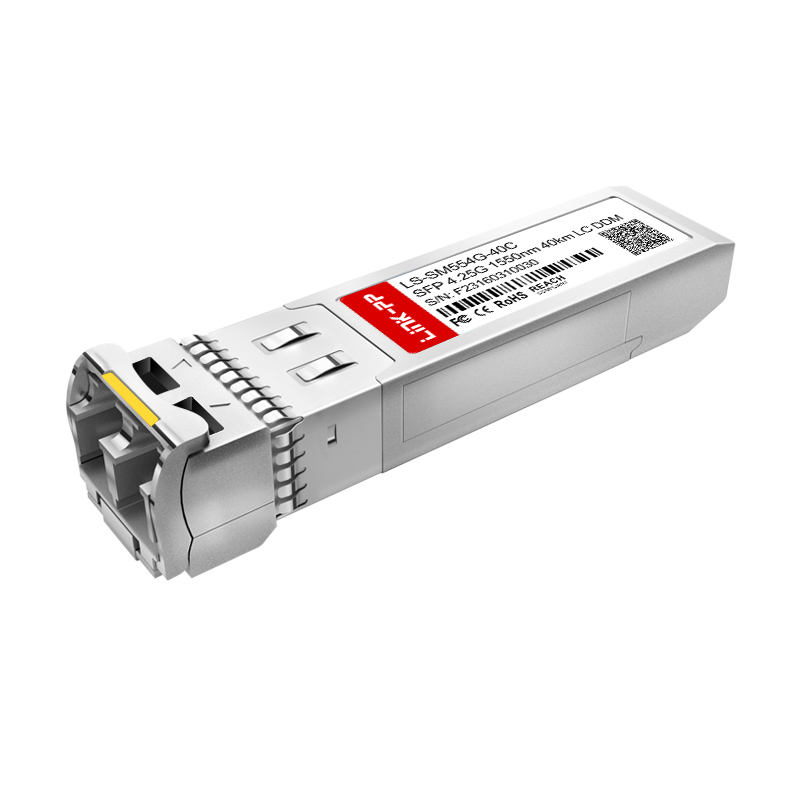

| Part No. | LS-SM554G-40C |
| Form Factor | SFP |
| Max Data Rate | 4.25Gbps |
| Wavelength | 1550nm |
| Max Cable Distance | 40km |
| Connector | Duplex LC |
| Media | SMF |
| Transmitter Type | DFB |
| Receiver Type | PIN |
| EMC (Electro Magnetic Compatibility) | Supported |
| DDM/DOM | Supported |
| Protocols | MSA Compliant |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
| Sample | Available |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.
A full series of optical modules is provided for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
| Part Number | Data Rate | Wavelength | Distance | Media | DDM |
|---|---|---|---|---|---|
| LS-MM854G-S1C | 4.25Gbps | 850nm | 150m | Multi-mode | Yes |
| LS-MM852G-S3C | 4.25Gbps | 850nm | 300m | Multi-mode | Yes |
| LS-MM854G-S5C | 4.25Gbps | 850nm | 500m | Multi-mode | Yes |
| LS-SM314G-02C | 4.25Gbps | 1310nm | 2km | Single Mode | Yes |
| LS-SM314G-04C | 4.25Gbps | 1310nm | 4km | Single Mode | Yes |
| LS-SM314G-10C | 4.25Gbps | 1310nm | 10km | Single Mode | Yes |
| LS-SM314G-40C | 4.25Gbps | 1310nm | 40km | Single Mode | Yes |
| LS-SM554G-40C | 4.25Gbps | 1550nm | 40km | Single Mode | Yes |
End-to-end DWDM solutions with wide optical device compatibility - from active modules to passive optical devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR.
To meet the demand of mass data transmission in data centers, high-speed optical modules with product rates ranging from 10G to 800G are developed, providing high-quality optical interconnection solutions for data centers.
High reliability and high performance products equipped with mature and efficient lasers and mainstream chip solutions. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul, meeting the requirements of diverse 4G/5G system scenarios.
Aimed at global communication network constructors, total FTTx optical fiber access solutions cover from all-optical to optical-copper combined access systems and products.
To ensure the normal operation of communication lines, optical cable O&M solutions integrate optical line protection systems (OLP) and optical line monitoring systems (OLM).
