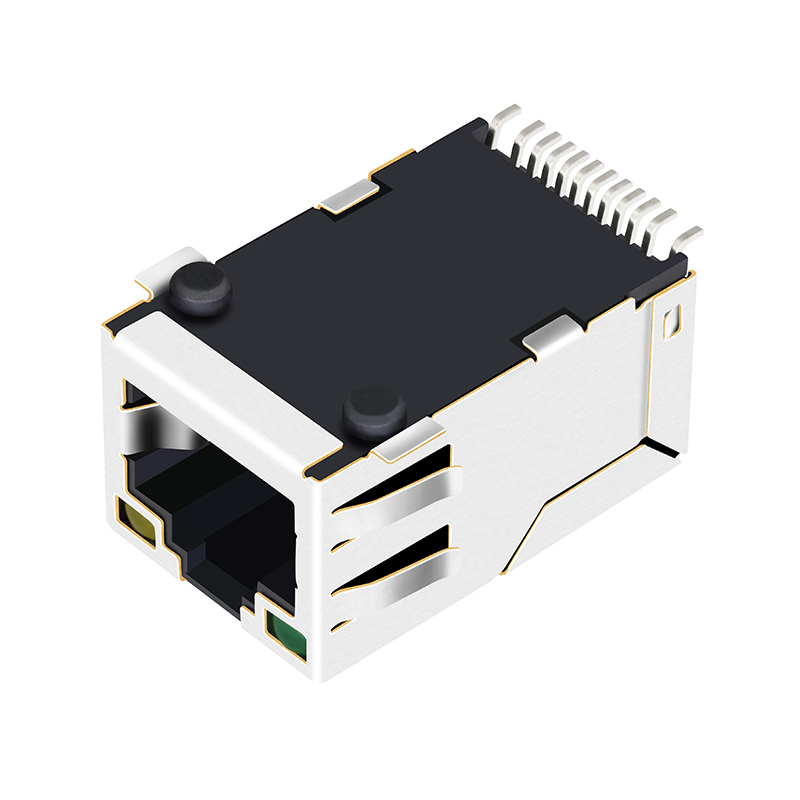

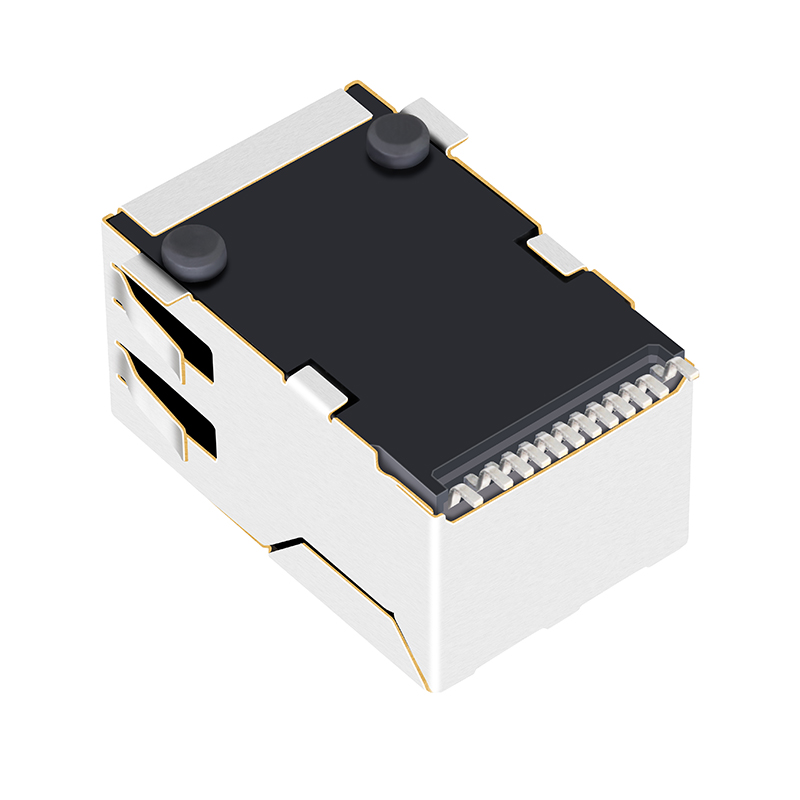

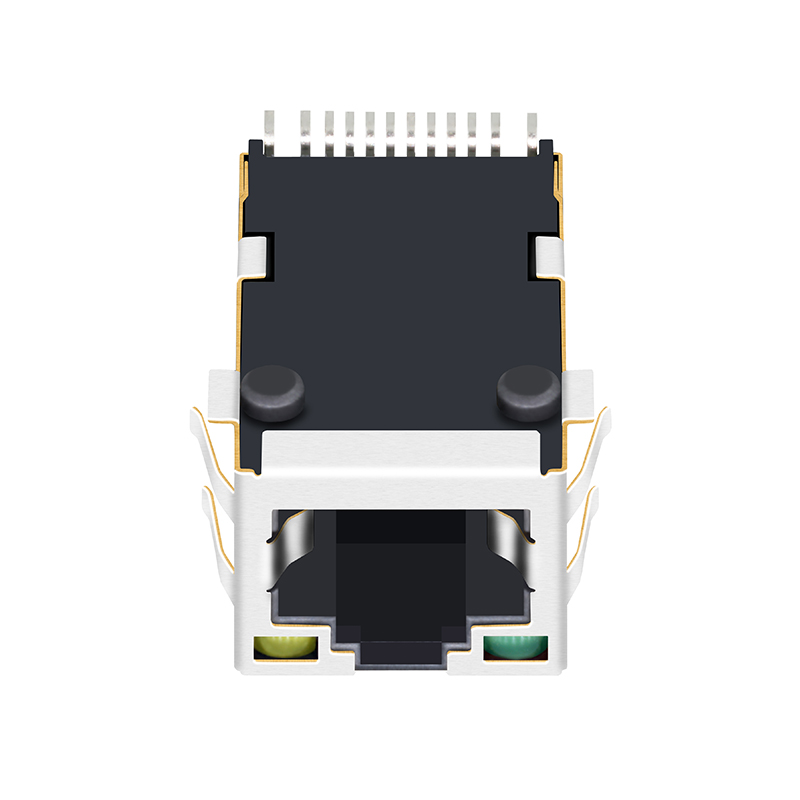

JB0-1002NL 10/100 Base-t Tab up SMT Magnetic RJ45 Surface Mount Ethernet RJ45 Connector With Led

1 / 5

JB0-1002NL 10/100 Base-t Tab up SMT Magnetic RJ45 Surface Mount Ethernet RJ45 Connector With Led

Send Inquiry

Product Description

JB0-1002NL 10/100 Base-t Tab Up SMT Magnetic RJ45 Surface Mount Ethernet RJ45 Connector With Led

Products Description

Item	RJ45 Female Connector

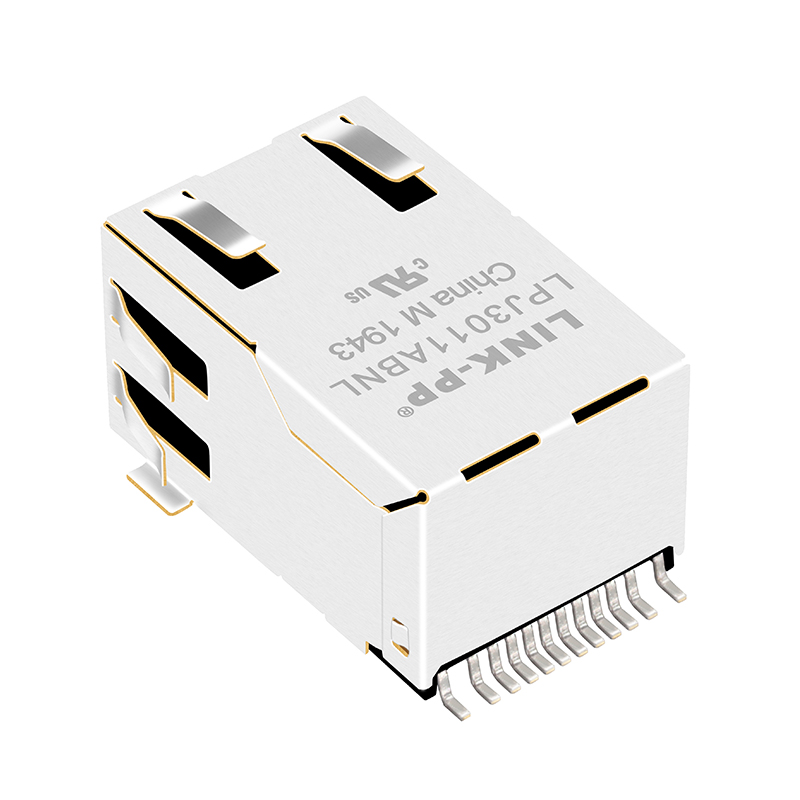

Link-PP Part Number	LPJ3011ABNL
Part Status	Active
Connector Type	Jack
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Application-Lan	Ethernet(NoN PoE)
Number of Ports	1x1 Port
Speed	10/100 Base-T
Latch	Up
Cores per Port	4
Orientation	90° Angle
PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	With
LED Option	Green/Yellow
PCB	FR4
PCB Retaining Post	T POST
Temperature	0℃ TO 70℃
Bst Circuit	Yes
AutomDX	YES
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT
Configuration RX/TX	T,C

Click Below Products To Get More

Profile

Established in 1997, is a professional designer and Manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.

We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer company.

FAQ

1. Are you factory or trading company?

We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.

2. Can I get a sample before mass production?

Yes, we can offer you free sample to test quality, but you should pay the shipping fee.

3. What is your delivery time?

Ready to ship for stock and 15-30 days for mass production.

4. What after-service can you offer?

One year guarantee period and we can offer technical support online 24 hours.

5. Can you accept OEM/ODM order?

Yes, please send inquiry to us so that we can have a detailed discussion.

6. What is your advantage?

19 years of production experience and we have been trusted partners with industry leaders for many years.
