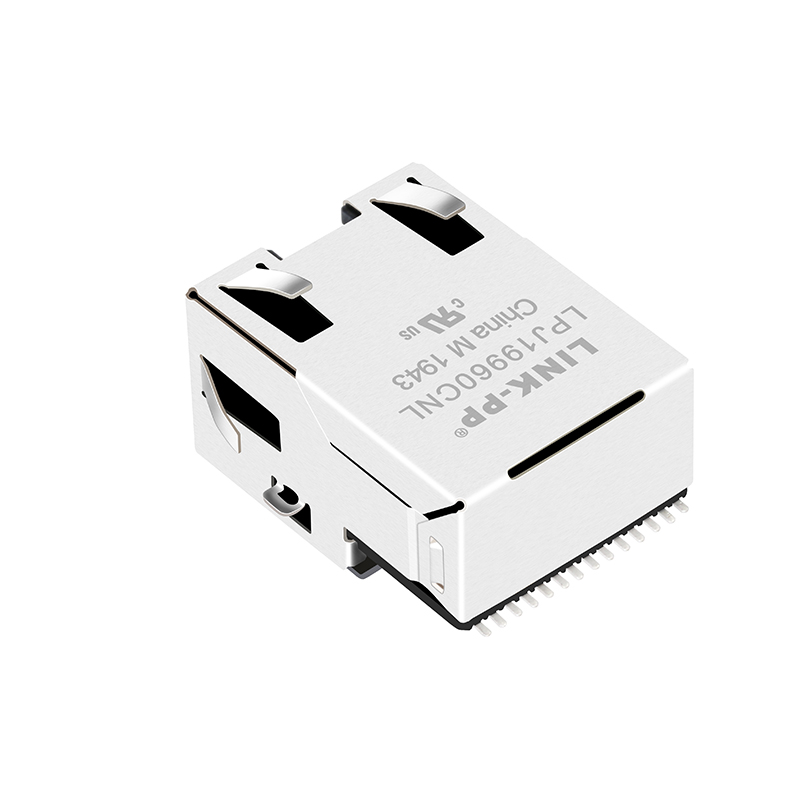

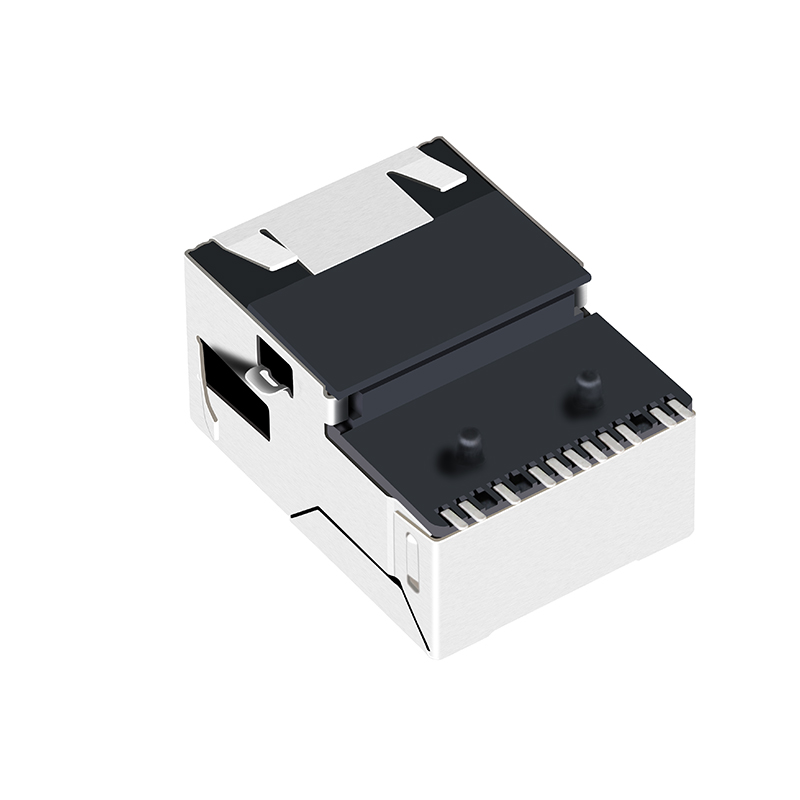

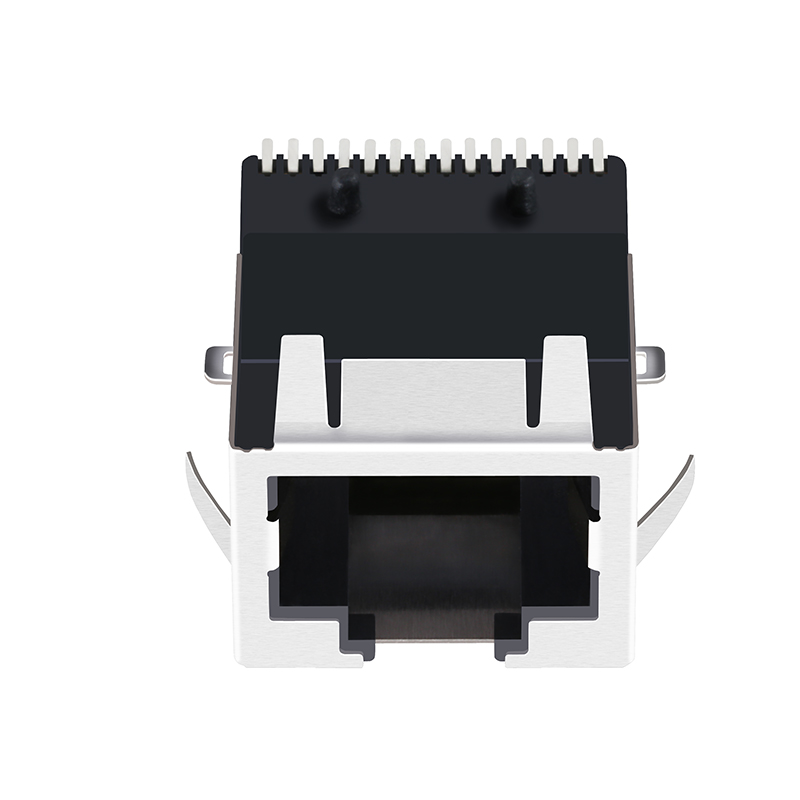

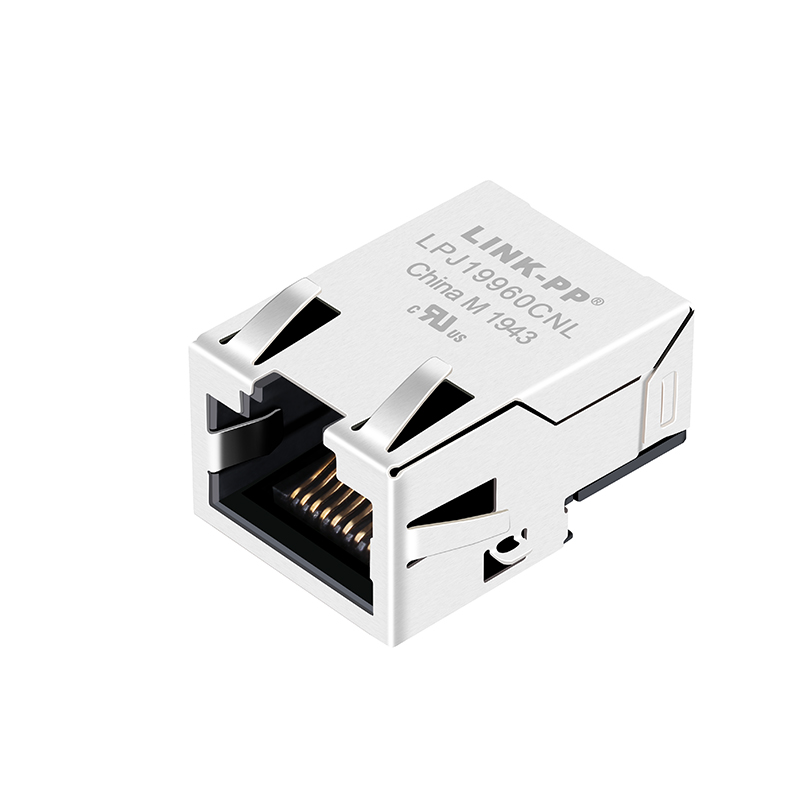

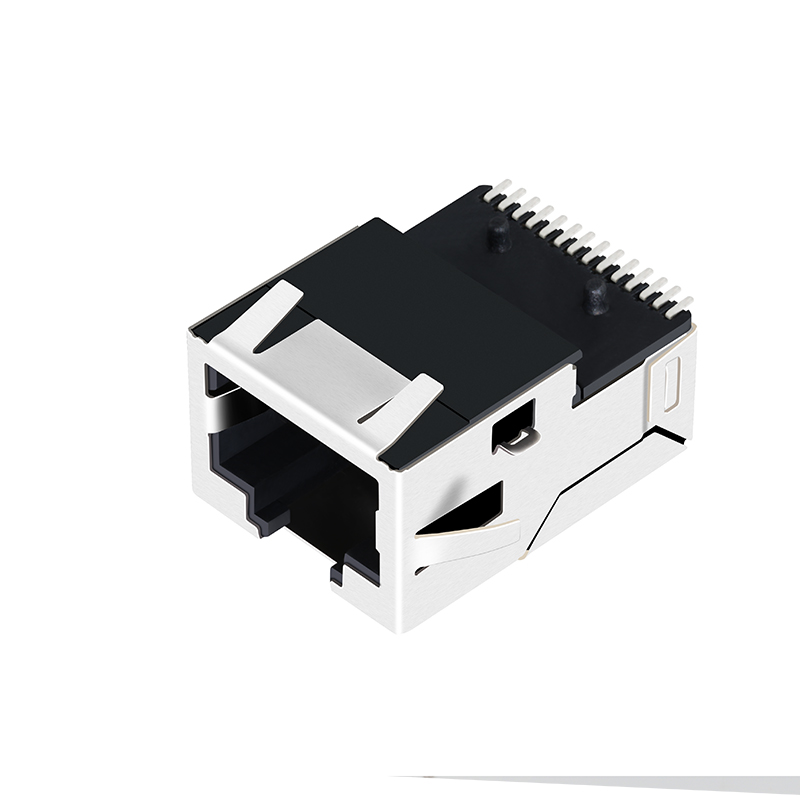

With PoE Single Port 8P8C Modular Jack SMT RJ45 Connector
With PoE Single Port 8P8C Modular Jack SMT RJ45 Connector
With PoE Single Port 8P8C Modular Jack SMT RJ45 Connector
With PoE Single Port 8P8C Modular Jack SMT RJ45 Connector
With PoE Single Port 8P8C Modular Jack SMT RJ45 Connector
1 / 5
With PoE Single Port 8P8C Modular Jack SMT RJ45 Connector
With PoE Single Port 8P8C Modular Jack SMT RJ45 Connector
With PoE Single Port 8P8C Modular Jack SMT RJ45 Connector
With PoE Single Port 8P8C Modular Jack SMT RJ45 Connector
With PoE Single Port 8P8C Modular Jack SMT RJ45 Connector

With PoE Single Port 8P8C Modular Jack SMT RJ45 Connector

Send Inquiry

Product Description

Modular Jack SMT RJ45 Connector Overview
With PoE Single Port 8P8C Modular Jack SMT RJ45 Connector
Products Description
Item RJ45 Female Connector
Part Number LPJ19960CNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃ / -40℃ TO 85℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
RJ45 Connector Detail Photo
Product Categories Overview
Product Options Grid
Technical Specifications & Drawings
Connector Dimensions Drawing
Circuit Schematic Diagram
Mechanical Layout Blueprint
Additional Specifications Details
Packaging Details Drawing
Certification and Testing Data Diagram
Frequently Asked Questions
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you a free sample to test quality, but the shipping fee is covered by the customer.
What is your delivery time?
We are ready to ship immediately for stock items. For mass production, the delivery time is generally between 15 and 30 days.
What after-service can you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, we accept OEM/ODM orders. Please contact us with your specifications so we can discuss the details.
What is your advantage?
We have 19 years of manufacturing experience and have served as a trusted partner for Intel and Jabil for many years.
