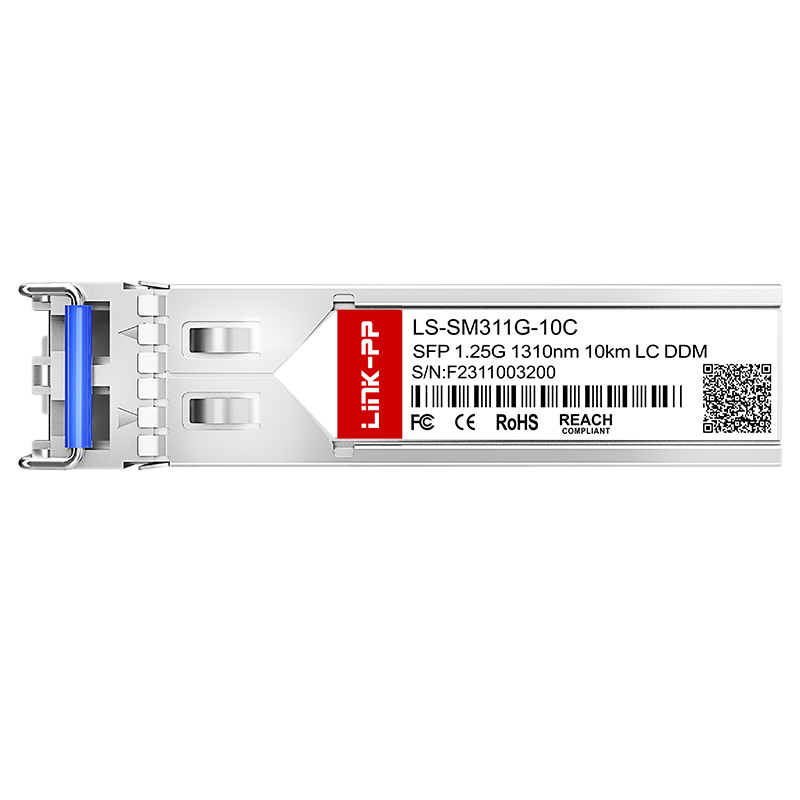

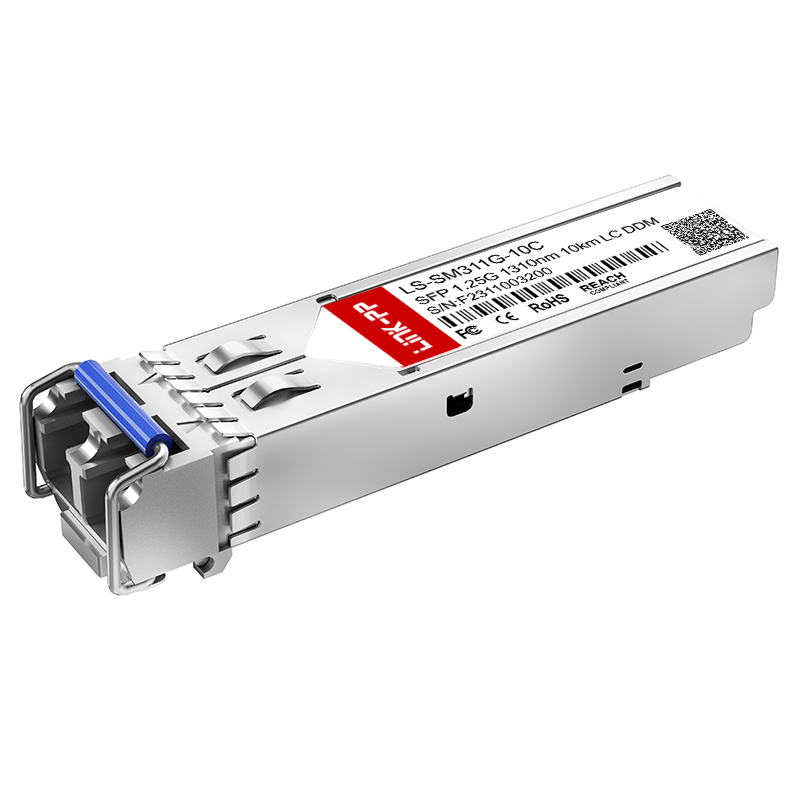

J4859D HPE Aruba Compatible 1000BASE LX SMF Optical Transceiver Single Mode 1G SFP Module 1310nm 10km

1 / 5

J4859D HPE Aruba Compatible 1000BASE LX SMF Optical Transceiver Single Mode 1G SFP Module 1310nm 10km

Send Inquiry

Product Description

Products Description

Item	1000BASE SFP
Compatible	J4859D HPE Aruba
Part Status	Active
Form Factor	SFP
Max Data Rate	1.25Gbps
Wavelength	1310nm
Max Cable Distance	10Km
Media	SMF
Connector	Duplex LC
Optical Component	FP/PIN
TX Power	-9.5~-3dBm
Receiver Sensitivity	<-20dBm
Receiver Overload	-3dBm
Power Consumption	≤1W
Extinction Ratio	>9dB
DDM/DOM	Supported
Commercial Temperature Range	0 to 70°C (32 to 158°F)
Protocols	IEEE 802.3ah-2004, IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant
Warranty	5 Years
Sample	Available

VIEW OUR SOLUTION

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

Optical Transport Networks

We can provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier(EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.

Cloud and Enterprise

To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical module which the product rate ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.

Wireless

We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.

FTTx

Aim to global communication network constructers, we provide FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.

Subsystems

To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).

[!] Related Products SFP Cage [!]

Why Choose Us

FAQ

Q Are you a factory or trading company?

We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, lan transformers, RJ11 connectors, and SFP modules.

Q Can I get a sample before mass production?

Yes, we can offer you free sample to test quality, but you should pay the shipping fee.

Q What is your delivery time?

Ready to ship for stock and 15-30 days for mass production.

Q What after-service can you offer?

One year guarantee period and we can offer technical support online 24 hours.

Q Can you accept OEM/ODM order?

Yes, please send inquiry to us so that we can have a detailed discussion.

Q What is your advantage?

19 years of production experience and we have partnered with major industry leaders for many years.
