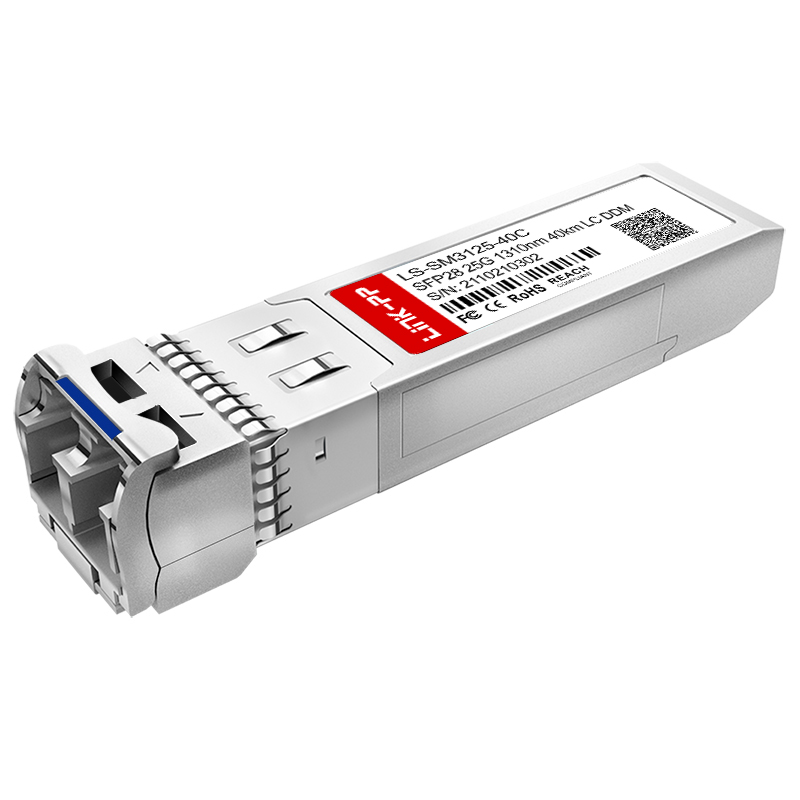

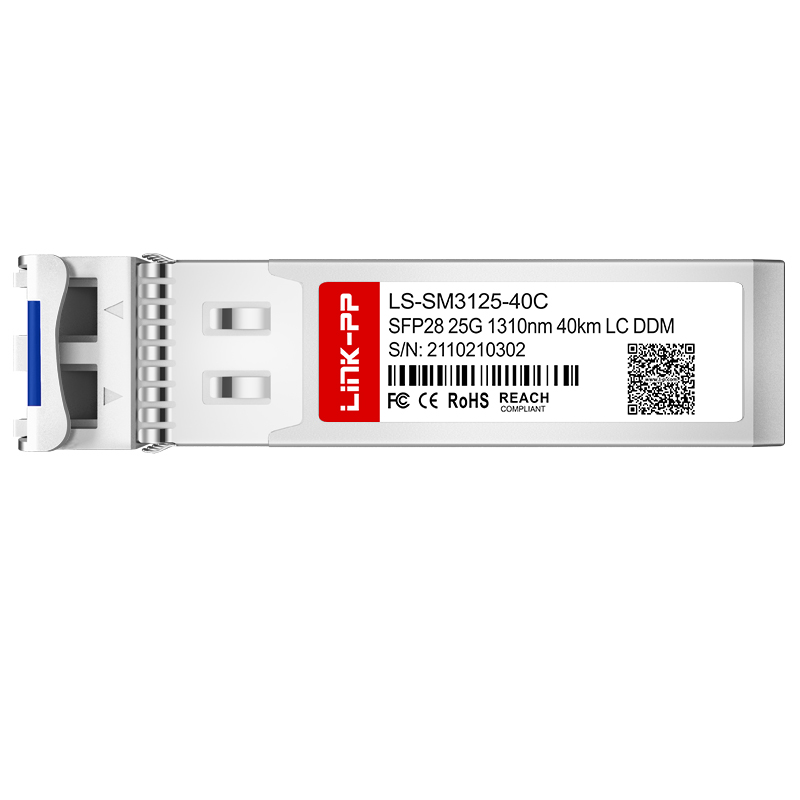

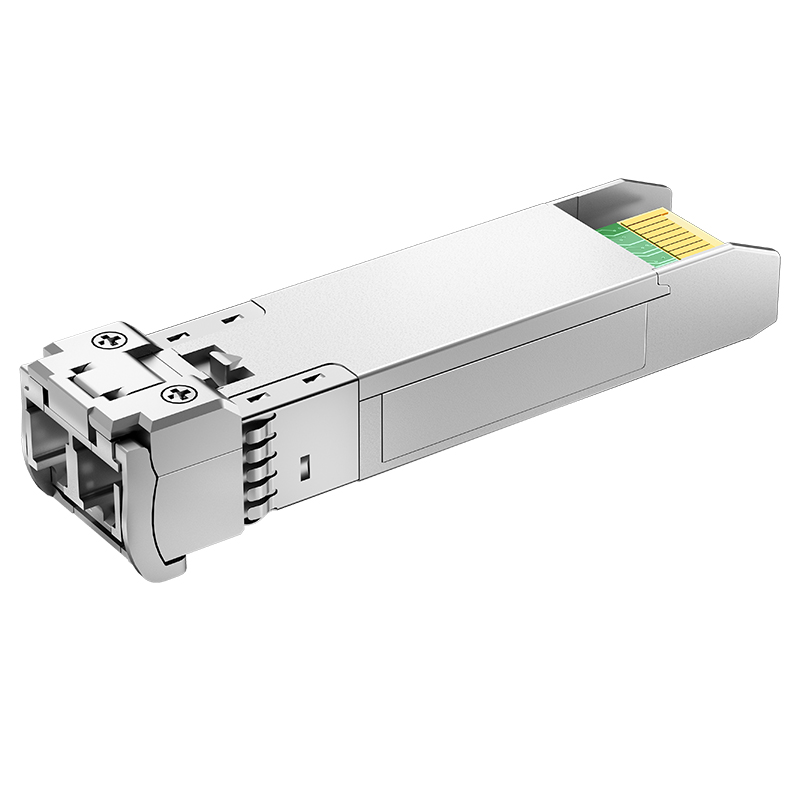

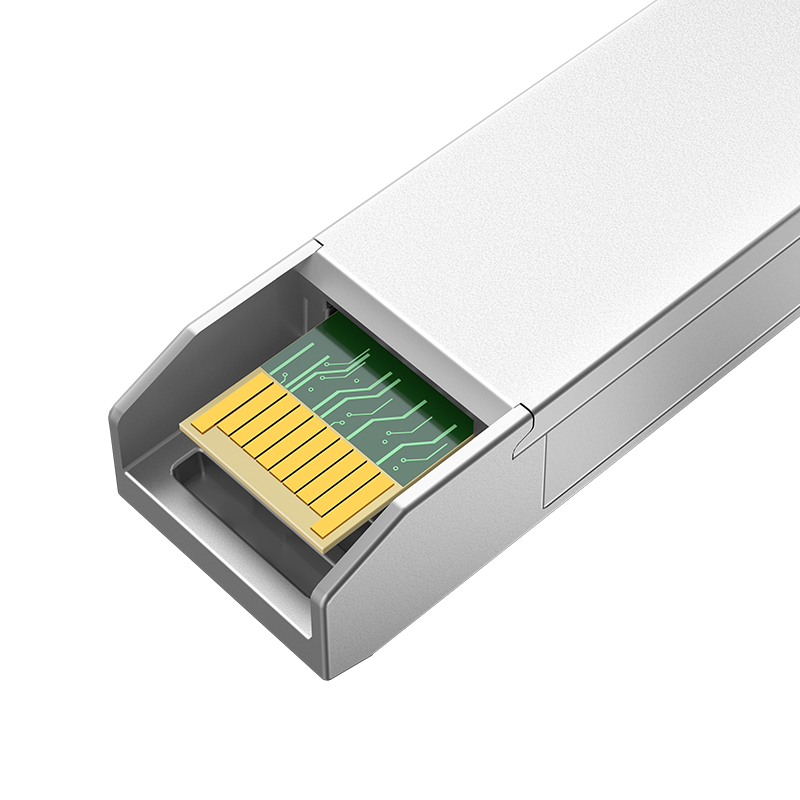

| Item | 25G SFP28 Transceiver |
| Part No. | LS-SM3125-40C |
| Part Status | Active |
| Form Factor | SFP28 |
| Max Data Rate | 25Gbps |
| Wavelength | 1310nm |
| Max Cable Distance | 40km |
| Media | SMF |
| Connector | Duplex LC |
| Optical Component | EML/APD |
| TX Power | 0~6dBm |
| Receiver Sensitivity | <-19dBm |
| Receiver Overload | -5dBm |
| Power Consumption | ≤2.2W |
| Extinction Ratio | 4dB |
| DDM/DOM | Supported |
| Commercial Temperature Range | 0°C to 70°C / -40°C to 85°C |
| Protocols | MSA Compliant, CPRI, eCPRI |
| Warranty | 5 Years |
| Sample | Available |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
We can provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier(EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical module which the product rate ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
Aim to global communication network constructers, we provide FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000 ,ROSH,REACH, CE and UL, owns advanced manufacturing facilities and test equipments which imported from abroad.
Our company established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to delivery products within the short time.
Moreover, we can provides a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. With the latest optoelectronics technologies, we develop, manufacture, and sell products around the world.
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connector, lan transformer, RJ11 connector and SFP modules, etc.
Yes, we can offer you free sample to test quality, but you should pay the shipping fee.
Ready to ship for stock and 15-30 days for mass production.
One year guarantee period and we can offer technical support online 24 hours.
Yes, please send inquiry to us so that we can have a detailed discussion.
19 years of production experience and we are partner with major international companies for many years.
