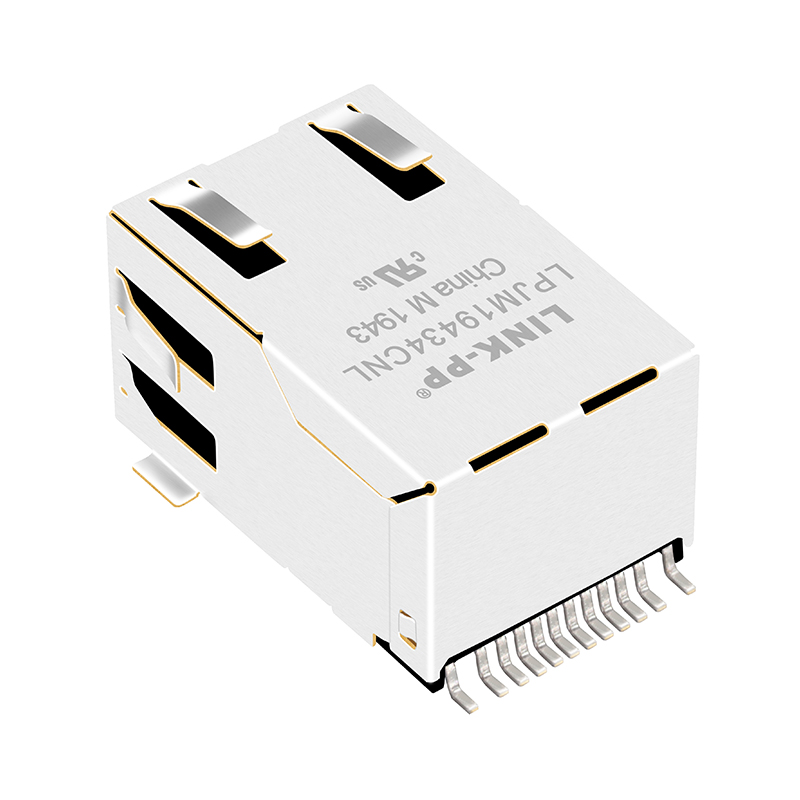

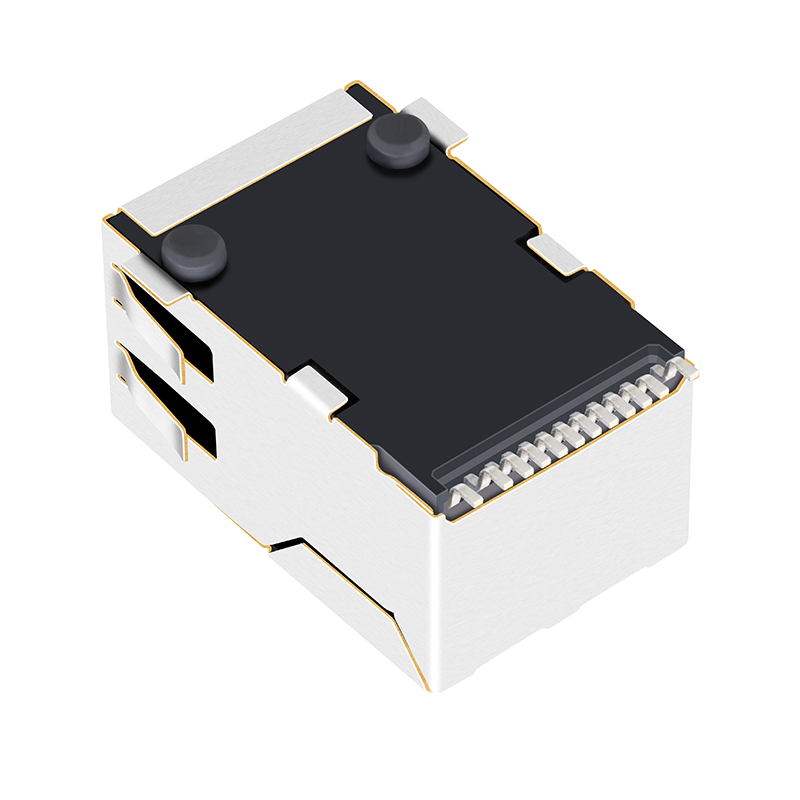

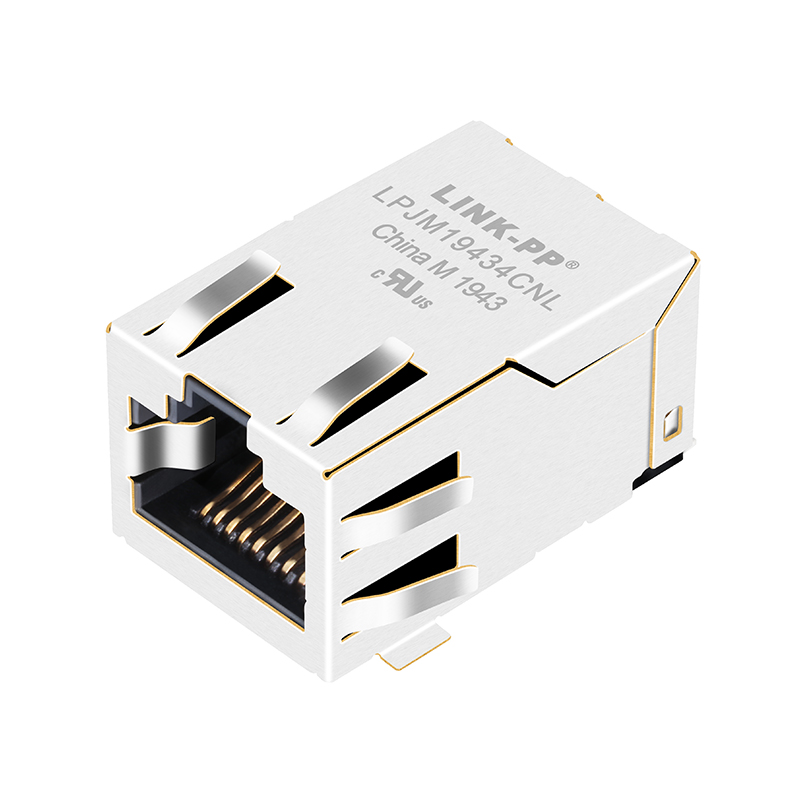

Tab up 1 Port Shielded 2.5G Base-t SMT Female RJ45 Jack Connector Without Led
Tab up 1 Port Shielded 2.5G Base-t SMT Female RJ45 Jack Connector Without Led
Tab up 1 Port Shielded 2.5G Base-t SMT Female RJ45 Jack Connector Without Led
Tab up 1 Port Shielded 2.5G Base-t SMT Female RJ45 Jack Connector Without Led
Tab up 1 Port Shielded 2.5G Base-t SMT Female RJ45 Jack Connector Without Led
1 / 5
Tab up 1 Port Shielded 2.5G Base-t SMT Female RJ45 Jack Connector Without Led
Tab up 1 Port Shielded 2.5G Base-t SMT Female RJ45 Jack Connector Without Led
Tab up 1 Port Shielded 2.5G Base-t SMT Female RJ45 Jack Connector Without Led
Tab up 1 Port Shielded 2.5G Base-t SMT Female RJ45 Jack Connector Without Led
Tab up 1 Port Shielded 2.5G Base-t SMT Female RJ45 Jack Connector Without Led

Tab up 1 Port Shielded 2.5G Base-t SMT Female RJ45 Jack Connector Without Led

Send Inquiry

Product Description

RJ45 Connectors and SFP Modules Overview
Tab Up 1 Port Shielded 2.5G Base-t SMT Female RJ45 Jack Connector Without Led
Products Description
Item RJ45 Female Connector
Part Number LPJM19434CNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 10p8c (RJ45, Ethernet)
Application-Lan Ethernet(Non PoE)
Number of Ports 1x1 Port, SMT
Speed 2.5G Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Without
PCB FR4
PCB Retaining Post T POST
Temperature -40℃ TO 85℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

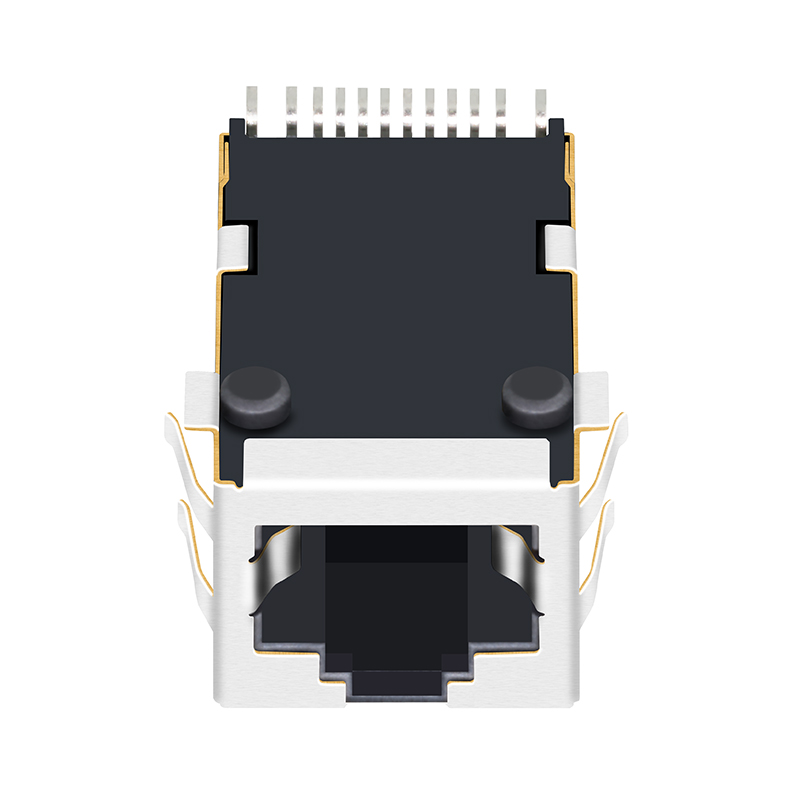

RJ45 Jack Connector Front View

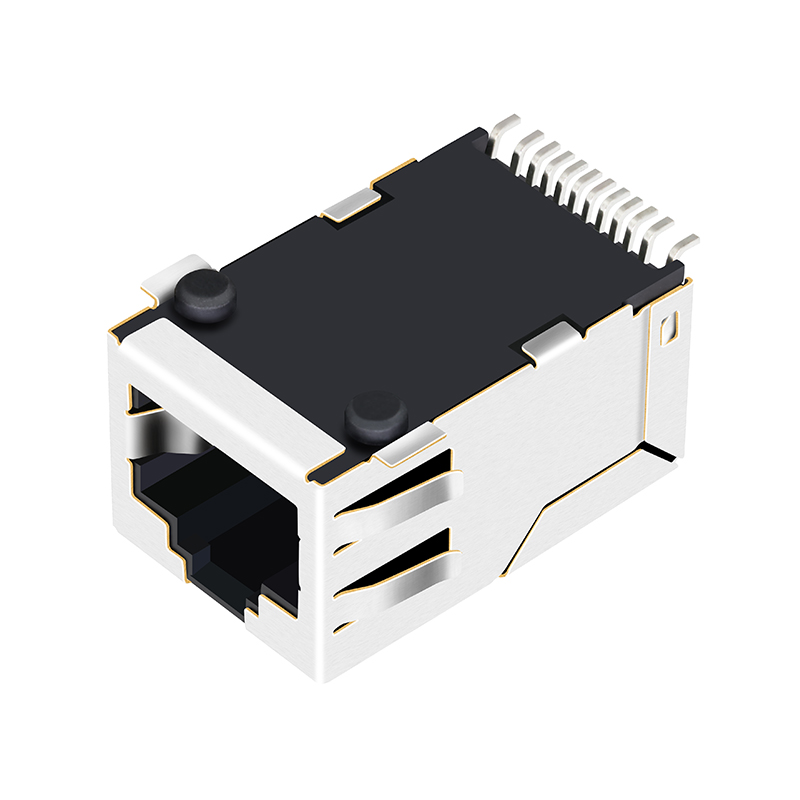

RJ45 Jack Connector Side View
RJ45 Connector Technical Drawing 1
RJ45 Connector Technical Drawing 2
RJ45 Connector Technical Drawing 3
RJ45 Connector Technical Drawing 4
