Tab up 10/100 Base-t SMT RJ45 Connector Magnetic Ethernet Surface Mount RJ45 Jack

Product Description

Product Banner
Tab Up 10/100 Base-t SMT RJ45 Connector Magnetic Ethernet Surface Mount RJ45 Jack With Leds
Products Description
Item RJ45 Female Connector
Part Number LPJ3011ABNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

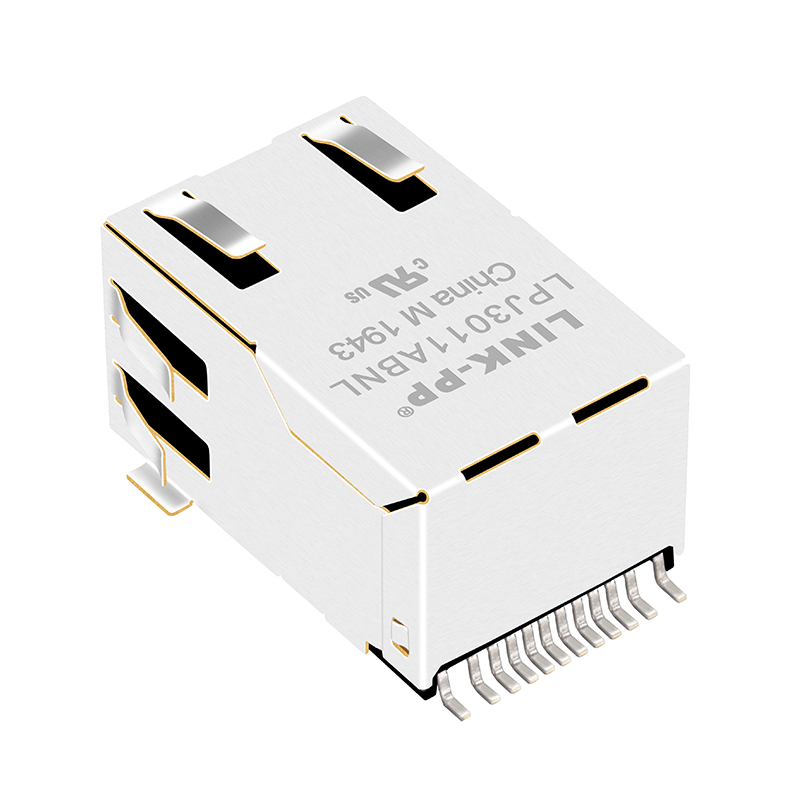

Product Image 1

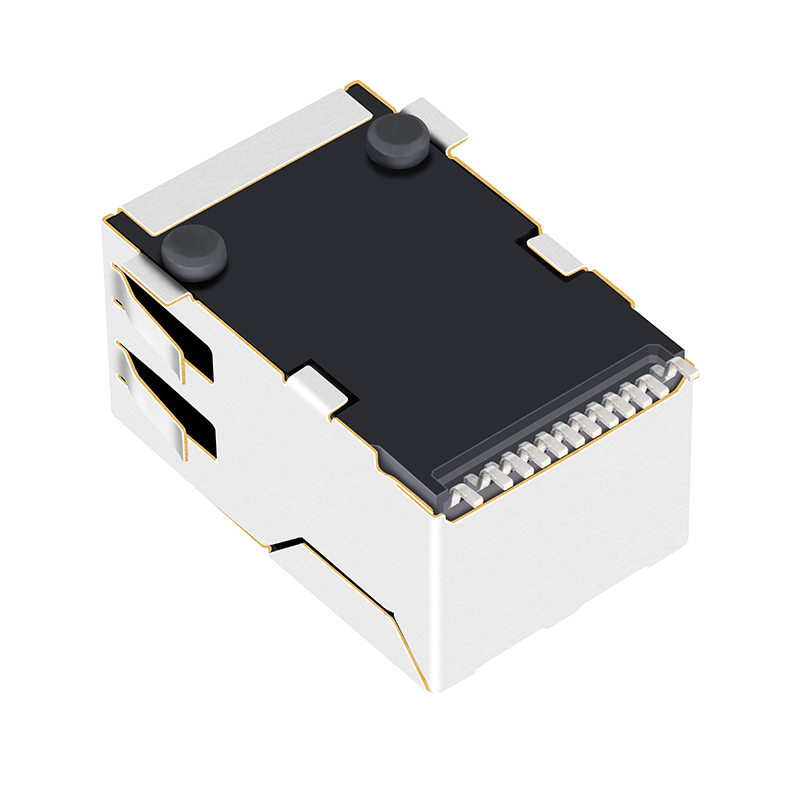

Product Image 2

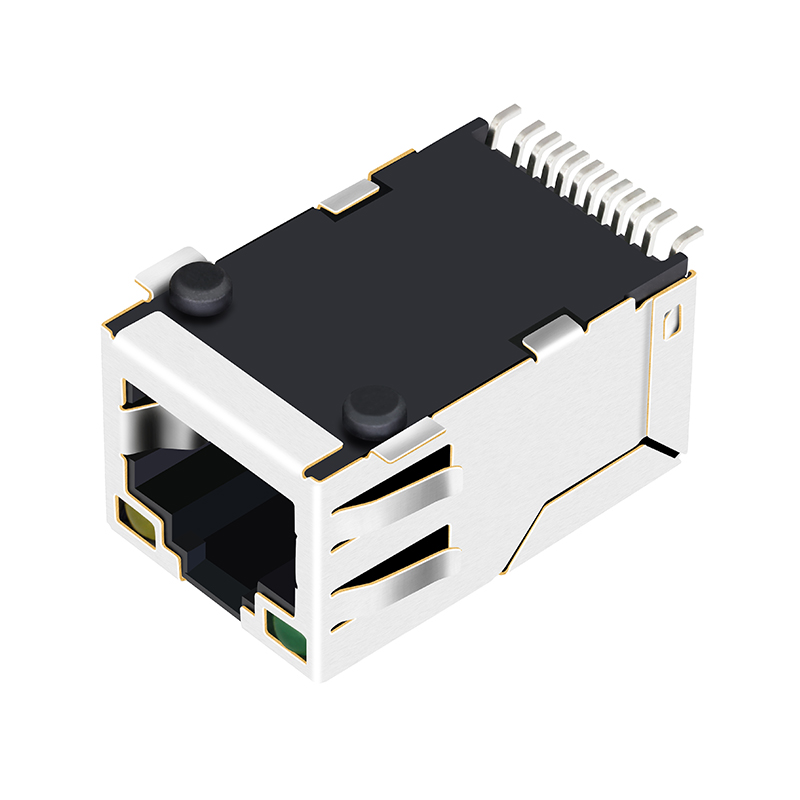

Product Image 3

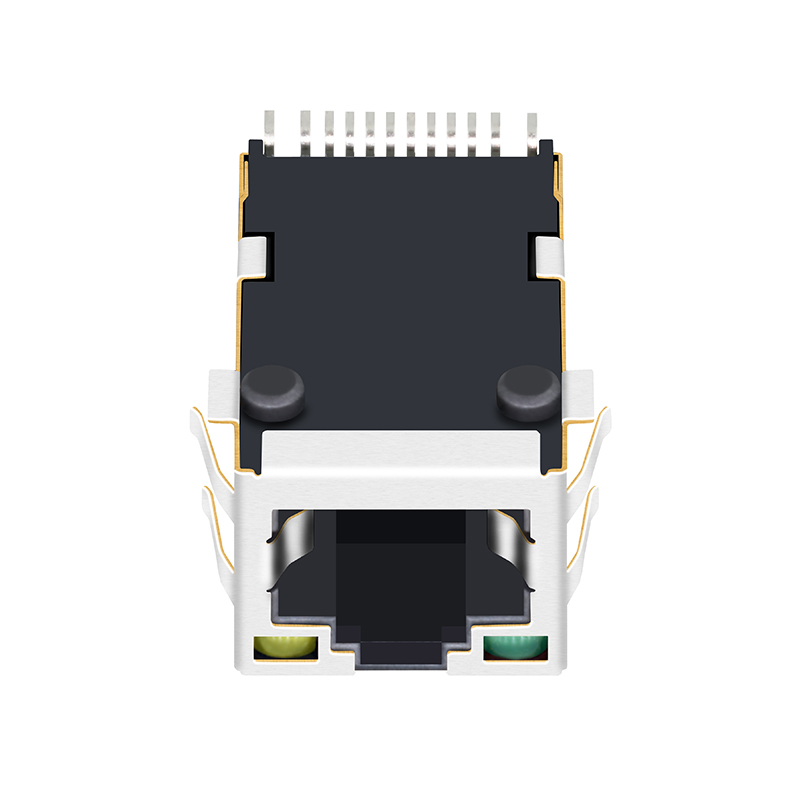

Product Image 4
Product Specifications Catalog
Technical Drawing 1
Technical Drawing 2
Technical Drawing 3
Technical Drawing 4
Technical Drawing 5
Technical Drawing 6
Company Profile
Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers across 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer manufacturer.
Factory Profile Image 1
Factory Profile Image 2
FAQ
Q Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Q Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should pay the shipping fee.
Q What is your delivery time?
Ready to ship for stock items, and 15-30 days for mass production.
Q What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
Q Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion.
Q What is your advantage?
Over 19 years of production experience and established partnerships with global industry leaders for many years.
